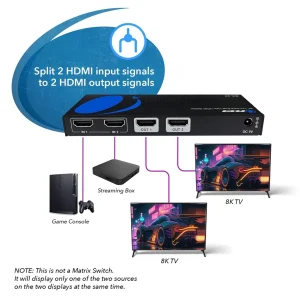

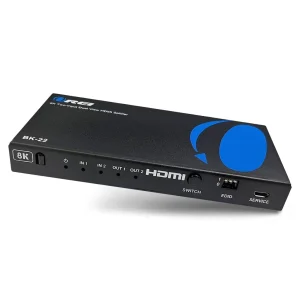

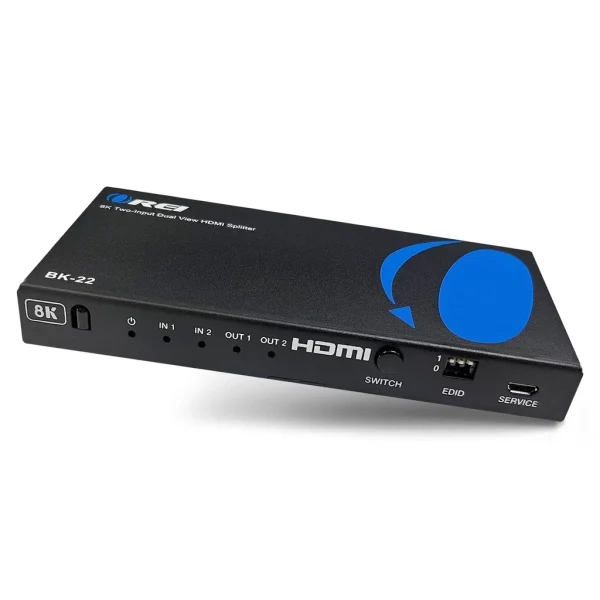

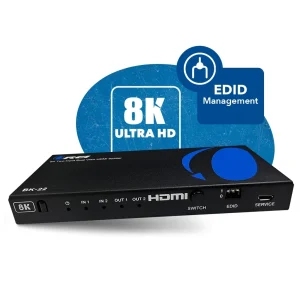

The BK-22 is a high-performance 2 Input HDMI splitter switch designed to connect two HDMI sources and simultaneously mirror content to two displays, one source at a time. Fully compliant with HDMI 2.1 and HDCP 2.3, it supports the latest video resolutions up to 8K@60Hz, 4K@120Hz and 1080p@240Hz, delivering ultra-high-definition visuals with a video bandwidth of up to 40Gbps.
Engineered for premium AV experiences, the BK-22 features full HDR pass-through including HDR10+, Dolby Vision, and HLG. It also supports advanced gaming and display technologies such as Variable Refresh Rate (VRR), Fast Vactive (FVA), and Auto Low Latency Mode (ALLM).
Audio format support includes LPCM, Dolby Digital Plus, Dolby TrueHD, DTS High Res, DTS-HD MA, and DSD, ensuring full compatibility with a wide range of media sources.
Equipped with dual output, advanced EDID management, and intuitive switching control via IR remote or front panel buttons, the BK-22 is ideal for both commercial AV systems and high-end home entertainment setups. Its compact form factor enables easy, flexible installation in any environment.
[shortdes]
[/shortdes]
[tab]

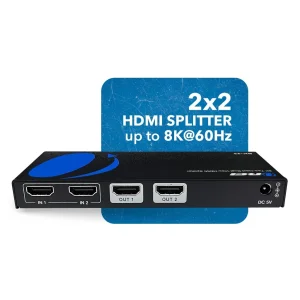

| INPUT: | 2 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] | |
| 1 × SERVICE [Micro-USB, Update port] |
| 1x BK-22 |
| 1x Power Adapter |
| User Manual |
| HDMI 2.1 | We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance |
| 8K@60Hz: | 6 Feet |
| 4K@60Hz: | 30 Feet |
| Video Bandwidth: | 40Gbps |
| Video Resolutions: |
Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit & 4K@120Hz 4:4:4 10bit, 4K@60Hz, 2K@120Hz, 2K@60Hz
|
| EDID Management: | Yes |
| Video Downscaling: | No |
| Audio Extraction: | No |
| CEC: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes / Yes / Yes |
| MST Support (Extended Display): | No |
| IR Control: | Yes |
| HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Power Consumption: | 2.25W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |
| Length: | 115mm / 4.53in | |
| Width: | 68mm / 2.68in | |
| Height: | 18mm / 0.71in | |
| Weight: | 220g / 7.76oz |
| Color: | Black |
| Housing: | Metal Enclosure |
| Operation Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity: | 20~90% RH (Non-condensing) |
| 1-Year Manufacturer’s Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: BK-22
