Availability: 6 in stock
Key Features:

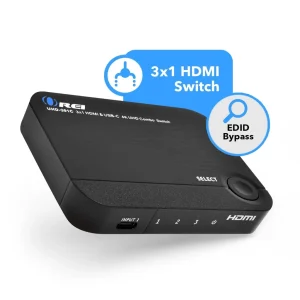

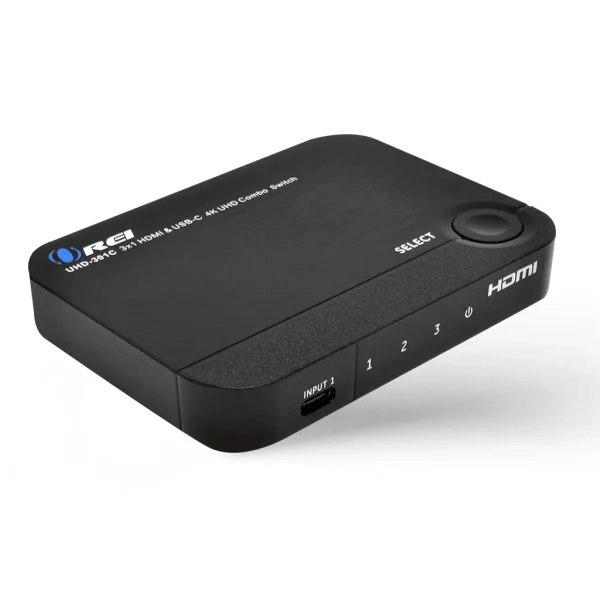

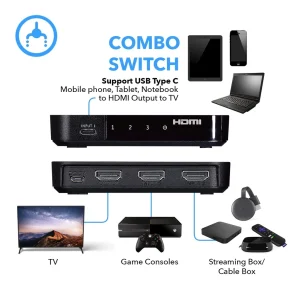

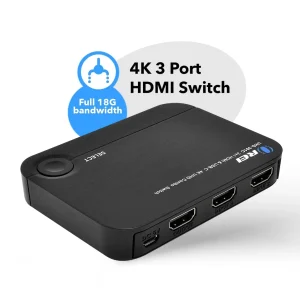

The OREI UHD-301C is a 3-in-1-out switch designed to streamline your home entertainment or office setup by integrating two HDMI inputs and one USB-C input into a single HDMI output. It allows users to easily switch between three video sources—such as a streaming box, gaming console, USB-C laptop, or Android smartphone—using the onboard button.
Supporting resolutions up to 4K@60Hz and compliant with HDMI 2.0 and HDCP 2.2, this compact switch ensures top-tier video and audio performance. It also supports Dolby TrueHD and DTS-HD for high-quality digital surround sound. The USB-C input not only delivers video (with DP Alt Mode support) but also provides up to 1.5A of charging power to keep your device powered during use.
Whether you’re connecting a Chromebook, PS4 Pro, 4K Blu-ray player, Mac, or smartphone, the OREI UHD-301C offers a simple, effective, and space-saving way to consolidate multiple AV devices into one seamless display experience.
[tab]
| Input Ports: | 1x USB-C DP Alt mode (Type C 24-pin female) |
| 2x HDMI Type A [19-pin female] | |
| Output Ports: | 1x HDMI Type A [19-pin female] |
| Video Bandwidth: | 18Gbps |
| Video Resolution: | 4K@60Hz (4096×2160), 1080P@60Hz (1920×1080) |
| Color Space: | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| HDMI Audio Formats: | PCM 2ch / PCM5.1 /PCM7.1, DTS /DTS-HD, Dolby 5.1 /Dolby 7.1/ Dolby TrueHD |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
| Auto Switching: | ❌ |
| CEC: | ❌ |
| Audio Extraction: | ❌ |
| EDID Management: | ❌ |
| 8K@60Hz: | ❌ |
| HDR: | ✅ (Dolby Vision) |
| IR Control: | ❌ |
| Plug & Play: | ✅ |
| Power Supply: | DC INPUT 5V / 2A / Micro USB |
| Power Consumption: | Main unit power consumption 0.3A, USB-C charging 1.5A, 1.8A (Max. / Charger) |
| CEC: | No |
| Operating Temperature: | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature: | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity: | 10~90 % RH |

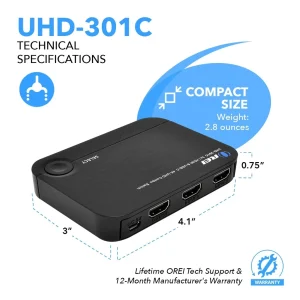

| Height: | 19.3 mm |
| Width: | 105 mm |
| Depth: | 77 mm |
| Weight: | 80g |
| Safety and Emission: | CE | FCC | RoHS |
| 1 × UHD-301C 3×1 HDMI Switch |
| 1 × Power Adapter |
| 1 × User Manual |
| 1 – Year Manufacturer’s Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: www.support.orei.com
[/tab1]
