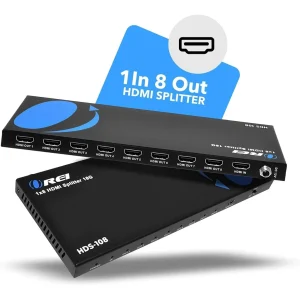

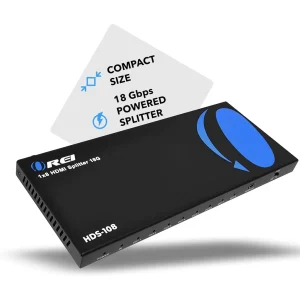

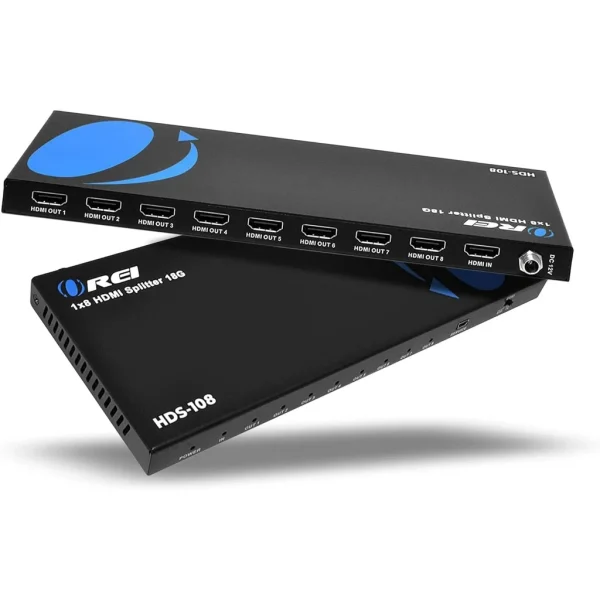

The HDS-108 is a high-performance 1×8 HDMI splitter engineered to distribute a single HDMI input across eight simultaneous outputs. Fully compliant with HDMI 2.0b and HDCP 2.2 standards, it supports video resolutions up to 4K@60Hz and 3D content at 1080p@60Hz. With a robust 18Gbps bandwidth, the HDS-108 ensures consistent, high-quality signal delivery across all connected displays.

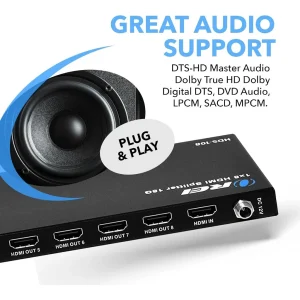

This splitter also supports advanced audio pass-through for formats such as LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio, making it suitable for both professional AV setups and home entertainment systems.
Integrated EDID management optimizes compatibility between the source and connected displays, while the durable metal chassis and plug-and-play setup ensure long-term reliability and easy installation.
Ideal for retail displays, control rooms, and multi-screen environments, the HDS-108 delivers powerful HDMI distribution in a compact and rugged design.
[tab]
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 8 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1× SERVICE [Mini-USB B, Update port] |
| 1x UHDS-104 HDMI Splitter |
| 1x Power Adapter |
| User Manual |
| HDMI 2.0/2.1 | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
| 4K@30Hz: | 30 Feet |
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz 4:4:4 |
| EDID Management: | Yes |
| Video Downscaling: | No |
| Audio Extraction: | No |
| CEC: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes / No / No |
| MST Support (Extended Display): | No |
| HDMI Audio Formats: |
LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master audio
|
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
| Power Consumption: | 6.15W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 12V/1A |
| Length: | 243mm / 9.57in | |
| Width: | 102mm / 4.01in | |
| Height: | 16mm / 0.63in | |
| Weight: | 572g / 1.26lbs |
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (Non-condensing) |
| 1-Year Manufacturer’s Warranty |
