Availability: 6 in stock
HDMI 2.0 & HDCP 2.2 Compliant – Ensures full compatibility with modern HDMI devices and protected content
Video Resolutions up to 4K@60Hz – Delivers sharp and detailed picture quality across all connected displays

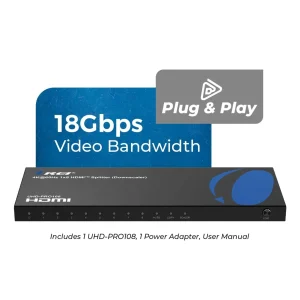

18Gbps Video Bandwidth – Maintains reliable and consistent signal distribution

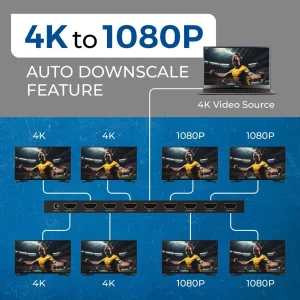

4K to 1080p Downscale – Sends optimized resolution to mixed-display environments

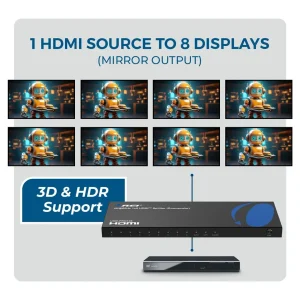

3D Video and HDR Support – Enhances depth and color for a more immersive viewing experience
Audio Format Support – Handles uncompressed LPCM and compressed Dolby Digital & DTS audio formats
Compact Design & Plug-and-Play Setup – Simple to install and ideal for any home or commercial setting

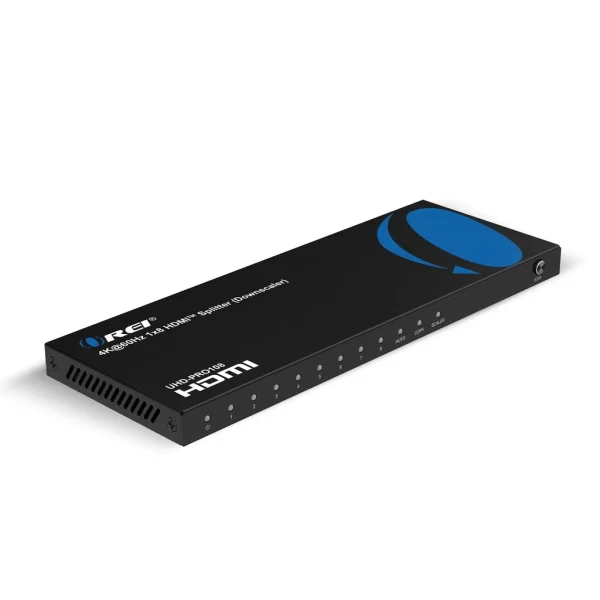

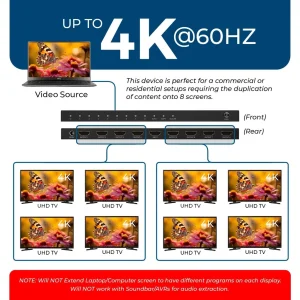

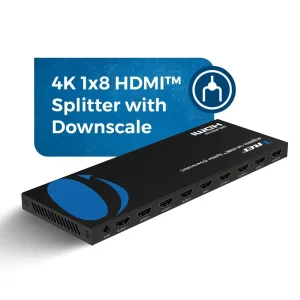

The UHD-PRO108 HDMI Splitter is designed to duplicate content from a single HDMI source to eight displays simultaneously, supporting resolutions up to 4K@60Hz. It is HDMI 2.0 and HDCP 2.2 compliant, delivering 18Gbps video bandwidth for smooth and high-quality signal transmission. This splitter supports 3D video and HDR for enhanced visual performance. Its built-in downscale function allows 4K media to be converted to 1080p for non-4K displays, while preserving native 4K on compatible screens. It is compatible with uncompressed LPCM and compressed Dolby Digital and DTS audio formats. With a compact and plug-and-play setup, it is perfect for both residential and commercial installations.
[tab]
| Inputs: | 1 × HDMI Type A (19-pin female) |
| Output Ports: | 8 × HDMI Type A (19-pin female) |
| Video Bandwidth: | 18 Gbps |
| Video Resolution: | 4K@60Hz (4096×2160), 1080P@60Hz (1920×1080) |
| Color Space: | RGB, YCbCr 4:4:4, YCbCr 4:2:2 (A mode no support), YCbCr 4:2:0 |
| HDMI Audio Formats: | PCM 2CH, PCM 5.1, PCM 7.1, DTS, DTS-HD, Dolby 5.1, Dolby 7.1, Dolby TrueHD |
| EDID Management: | Yes |
| Video Downscaling: | Yes |
| Audio Extraction: | No |
| CEC: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes / No / No |
| MST Support (Extended Display): | No |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
| Power Supply: | DC 5V @600mA (MicroUSB) |
| Power Consumption: | 480mA |
| Operating Temperature: | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature: | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity: | 10 ~ 90 % RH (no condensation) |
| Height: | 20.6 mm |
| Width: | 152 mm |
| Depth: | 63 mm |
| Weight: | 102 g |
| REGULATORY: | CE | FCC | RoHS |
| 1 × UHD-PRO108 1×8 HDMI Splitter |
| 1 × Power Adapter |
| 1 × User Manual |
| 1 – Year Manufacturer’s Warranty |
