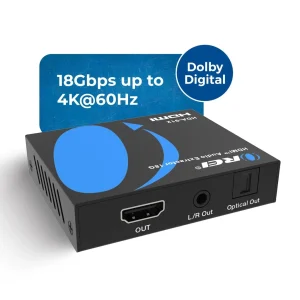

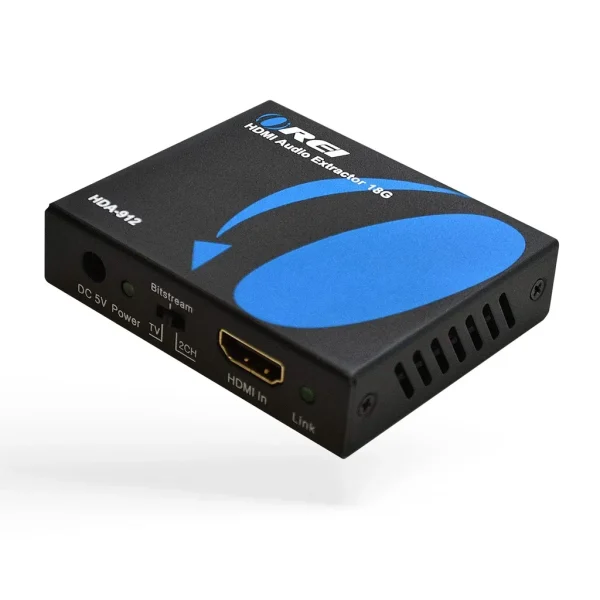

OREI HDA-912: HDMI Audio Extractor Converter
Key Features:

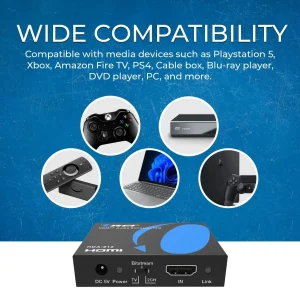

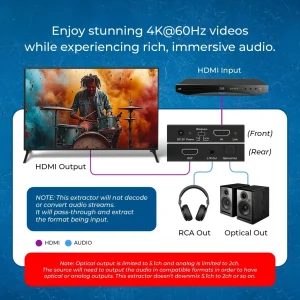

HDA-912 is a compact HDMI audio extractor designed to separate audio signals from any HDMI-compliant source—such as set-top boxes, media players, or streaming devices—and output them through both Optical and 3.5mm stereo ports.
Supporting HDMI 2.0b and HDCP 2.2 standards, it handles video resolutions up to 4K@60Hz with 18Gbps bandwidth and 10-bit HDR pass-through, ensuring rich, detailed visuals.
The Optical output supports multi-channel formats including LPCM 2CH, Dolby Digital 2/5.1CH, and DTS 2/5.1CH, while the 3.5mm stereo port provides analog PCM 2.0 audio output.
With high-bit-rate HDMI audio pass-through and sampling rates up to 192kHz, the HDA-912 delivers outstanding audio quality. Its durable, compact form factor makes it ideal for both personal and commercial AV setups.
[shortdes]
[/shortdes]
[tab]
CONNECTIVITY
| INPUT:
|
1 × HDMI [Type A, 19-pin female] |
|
| OUTPUT:
|
1 × HDMI [Type A, 19-pin female] |
|
|
1 × L/R [3.5mm Stereo Mini-jack] |
|
|
1 × Optical [S/PDIF] |
|
PACKAGE CONTENTS
| 1x HDA-912 Audio Extractor |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1: |
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
18Gbps |
| Video Resolutions: |
Up to 4K@60Hz and 2k@60Hz |
ADDITIONAL FEATURES
| CEC: |
❌ |
| ARC: |
❌ |

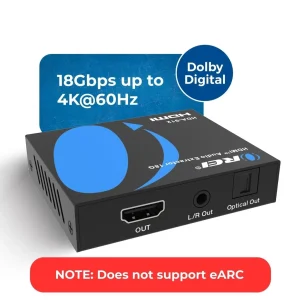

| eARC: |
❌ |
| Dolby Atmos / DTS: |
✅
|
| EDID Management: |
❌ |
| Downmix/ Decoding: |
❌ |

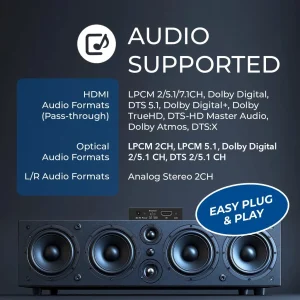

AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Optical Audio Formats: |
LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH |
| L/R Audio Formats: |
LPCM 2.0 |
COMPLIANCES
| HDMI Compliance |
HDMI 2.0b |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
1W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 5V/1A |
|

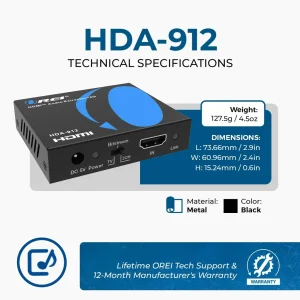

DIMENSIONS & WEIGHT
| Length: |
73.5mm / 2.89in |
|
| Width:
|
60.7mm / 2.34in |
|
| Height:
|
17mm / 0.67in |
|
| Weight:
|
130g / 4.59oz |
|
PROPERTIES
| Color: |
Black |

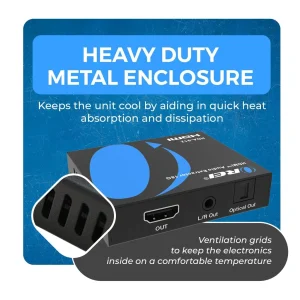

| Housing: |
Metal Enclosure |
| Operation Temperature: |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: |
-20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity: |
20%~80% relative humidity, non-condensing |
| Storage Humidity: |
10%~90% relative humidity, non-condensing |
WARRANTY
| 1-Year Manufacturer’s Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: HDA-912
