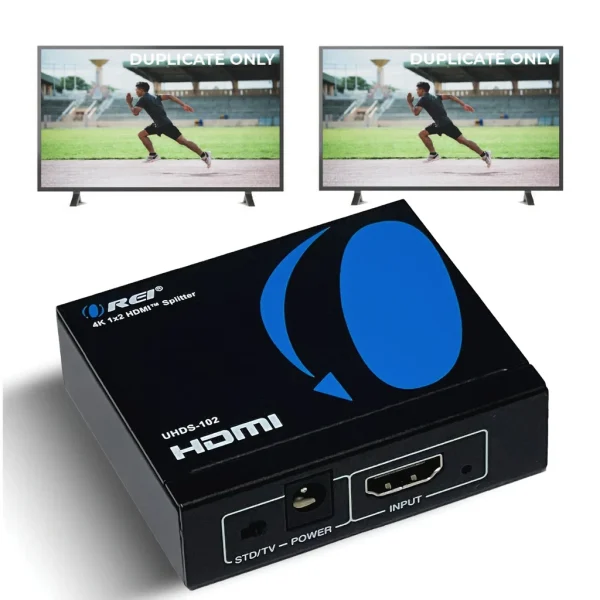

OREI UHDS -102: 4K HDMI Splitter 1-In-2-Out with EDID control
Key Features:
-
HDCP 2.3 Compliant – Works with the latest content protection standards.
-
4K@60Hz and 18Gbps Bandwidth – Provides clear, high-resolution video and audio signals.
-
HDR10+, Dolby Vision, and HLG Support – Enhances image quality with superior contrast and color.
-
High-Definition Audio – Supports PCM, Dolby TrueHD, and DTS-HD Master Audio up to 7.1 channels.
-
CEC Pass-through on Output 1 – Enables control between connected devices.
-
EDID Management – Offers two presets for optimal device compatibility.
-
Compact Metal Design – Saves space and fits neatly into any setup.

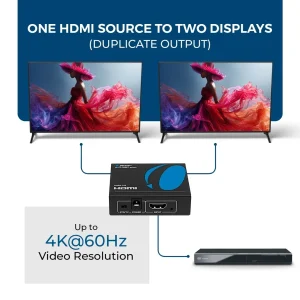

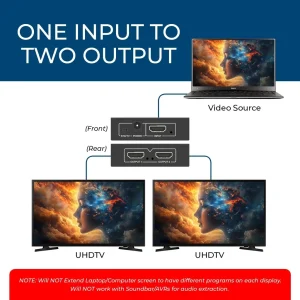

The UHDS-102 is a compact 1×2 HDMI splitter that duplicates a single HDMI source to two displays simultaneously. It supports HDMI 2.0b, and HDCP 2.3 standards, ensuring compatibility with modern AV equipment. With 4K@60Hz resolution and 18Gbps bandwidth, it delivers crisp, uncompressed video and supports HDR10+, Dolby Vision, and HLG for vibrant visuals. High-quality audio formats including PCM, Dolby TrueHD, and DTS-HD Master Audio up to 7.1 channels are supported. The unit features CEC control between the input and output 1, along with simple EDID management for seamless integration. Its durable, space-saving design makes it ideal for both home and commercial installations.
[shortdes]
- Mirror content to 2 displays
- Resolutions up to 4K@60Hz and 2K@60Hz
- EDID management
[/shortdes]
[tab]
CONNECTIVITY
| INPUT:
|
1 × HDMI [Type A, 19-pin female] |
|
| OUTPUT:
|
2 × HDMI [Type A, 19-pin female] |
|

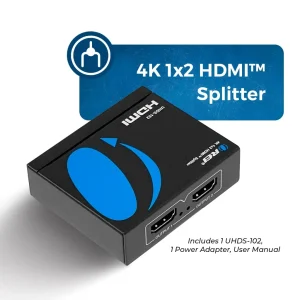

PACKAGE CONTENTS
| 1x UHDS-102 HDMI Splitter |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1: |
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT

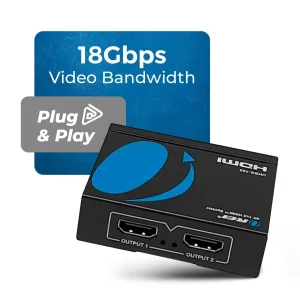

| Video Bandwidth: |
18Gbps |
| Video Resolutions: |
Up to 4K@60Hz and 2K@60Hz |
ADDITIONAL FEATURES
| EDID Management: |
Yes |
| Video Downscaling: |
No |
| Audio Extraction: |
No |
| CEC: |
Yes |
| HDR10 / HDR10+ / Dolby Vision: |
Yes / Yes / Yes |
| MST Support (Extended Display): |
No |
AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM 2.0/5.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS HD Master Audio |
COMPLIANCES
| HDMI Compliance |
HDMI 2.0b |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
2W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 5V/1A |
|
DIMENSIONS & WEIGHT
| Length: |
100mm / 3.93in |
|
| Width:
|
56mm / 2.2in |
|
| Height:
|
16mm / 0.62in |
|
| Weight:
|
165g / 5.82oz |
|
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
| Operation Temperature: |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: |
-20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity: |
20% ~ 80% relative humidity, non-condensing |
| Storage Humidity: |
10% ~ 90% relative humidity, non-condensing |
WARRANTY
| 1-Year Manufacturer’s Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: UHDS-102
