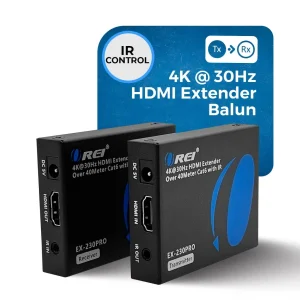

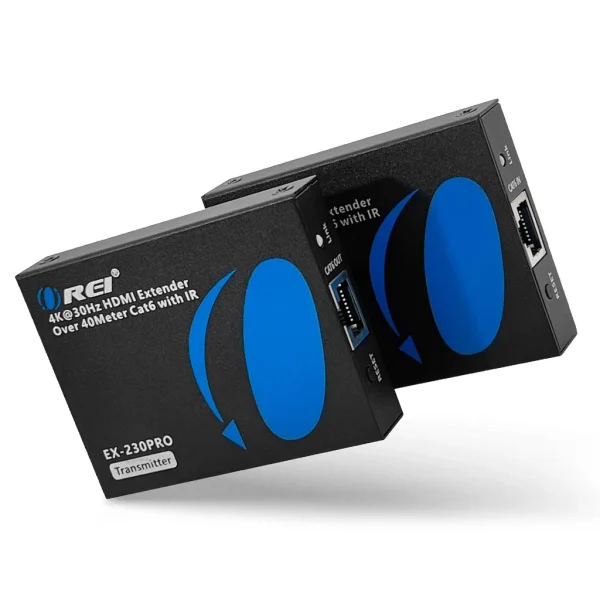

OREI EX-230PRO 4K HDMI Extender up to 230Ft
Key Features:
-
HDMI 1.4 and HDCP 1.4 compliant – Ensures compatibility with standard HDMI devices and protected content.
-
Supports up to 4K@30Hz video resolution – Enables high-definition signal transmission with enhanced clarity.
-
Extension up to 230 feet at 1080p – Transmits HDMI signals up to 230ft at 1080p@60Hz and 131ft at 4K@30Hz over a CAT6 cable.
-
HDR pass-through – Maintains vibrant color and contrast in supported video formats. · Uni-directional IR control – Allows source device control from the receiver’s location.
-
EDID pass-through – Ensures seamless communication between connected devices.
-
Compact design – Small footprint for easy and flexible installations.
-
Plug-and-play setup – No driver installation required, simplifying deployment.

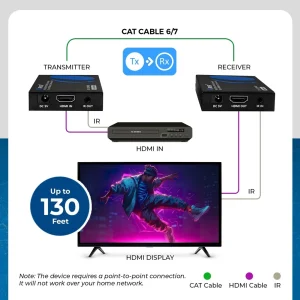

The EX-230PRO is an HDMI extender designed to transmit high-definition video signals over long distances using a single CAT6 cable. Supporting video resolutions up to 4K@30Hz, it extends signals up to 131 feet (40 meters) at 4K and up to 230 feet (70 meters) at 1080p@60Hz.
This unit is HDMI 1.4 and HDCP 1.4 compliant with support for HDR pass-through, ensuring vivid color quality and detail. It features uni-directional IR pass-through, allowing users to control the HDMI source device from the receiver’s location. With a compact design and plug-and-play setup, the EX-230PRO is ideal for personal and commercial AV installations.
[shortdes]
-
HDMI extender over ethernet up to 230 feet
-
Video resolutions up to 4K@30Hz 4:4:4
-
Uni-directional IR pass-through & EDID
[/shortdes]
[tab]
CONNECTIVITY
| Transmitter: |
INPUT: |
1 × HDMI [Type A, 19-pin female] |
|
OUTPUT: |
1 × CAT [RJ45, 8-pin female] |
|
CONTROL: |
1 × I/R OUT [3.5mm Stereo Mini-jack] |
|
Receiver:
|
INPUT: |
1 × CAT [RJ45, 8-pin female] |
|
OUTPUT: |
1 × HDMI [Type A, 19-pin female] |
|
CONTROL: |
1 × I/R IN [3.5mm Stereo Mini-jack] |

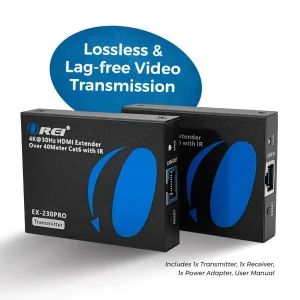

PACKAGE CONTENTS
| 1x Transmitter |
| 1x Receiver |
| 1x IR Blaster cable |
| 1x IR Receiver cable |
| 2x Power Adapters |
| User Manual |
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: |
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |

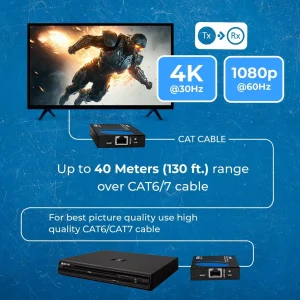

EXTENDING DISTANCE
| 4K@30Hz: |
131 Feet |
| 1080P@60Hz: |
230 Feet |
VIDEO OUTPUT
| Video Bandwidth: |
10.2Gbps |
| Video Resolutions: |
Up to 4K@30Hz 4:4:4 |
ADDITIONAL FEATURES
| ARC/eARC: |
No / No |
| CEC: |
No |
| Transmission Technology: |
Ethernet |
| IR Control: |
Uni-directional |
| PoC (Power over Cable): |
No |
| RS-232: |
No |
| USB Standard: |
No |
| USB-C DP Alt Mode: |
No |
| HDR10 / HDR10+ / Dolby Vision: |
Yes / No / No |
LOOP-OUT/LOCAL PORT
| Has loop out port: |
No |
| Number of Loop out ports: |
0 |
AUDIO SUPPORT
| HDMI Audio Formats: |
PCM, LPCM, DTS-HD, DTS-AUDIO, DOLBY DIGITAL 5.1 |
COMPLIANCES
| HDMI Compliance |
HDMI 1.4 |
| HDCP Compliance |
HDCP 1.4 |
POWER
| Power Consumption: |
TX: 1.5W (Max) & RX: 1.5W (Max) |
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 5V/0.5A |
|

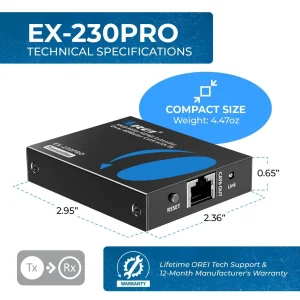

DIMENSIONS & WEIGHT
| Transmitter: |
Length: |
75mm / 2.95in |
|
Width: |
60mm / 2.36in |
|
Height: |
16.5mm / 0.65in |
|
Weight: |
127g / 4.48oz |
| Receiver: |
Length: |
75mm / 2.95in |
|
Width: |
60mm / 2.36in |
|
Height: |
16.5mm / 0.65in |
|
Weight: |
127g / 4.48oz |
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
| Operation Temperature: |
-20 ~ 60℃ |
| Storage Temperature |
-30 ~ 70℃ |
| Operating Humidity: |
0 ~ 90% RH (non-condensing) |
WARRANTY
| 1-Year Manufacturer’s Warranty |
