Availability: 6 in stock

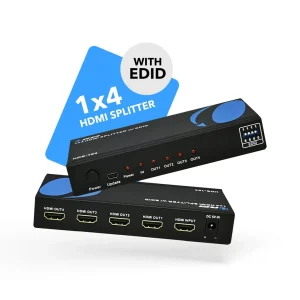

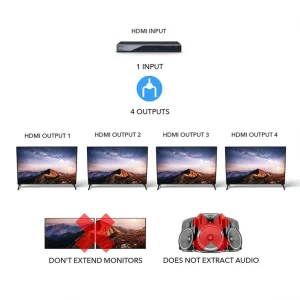

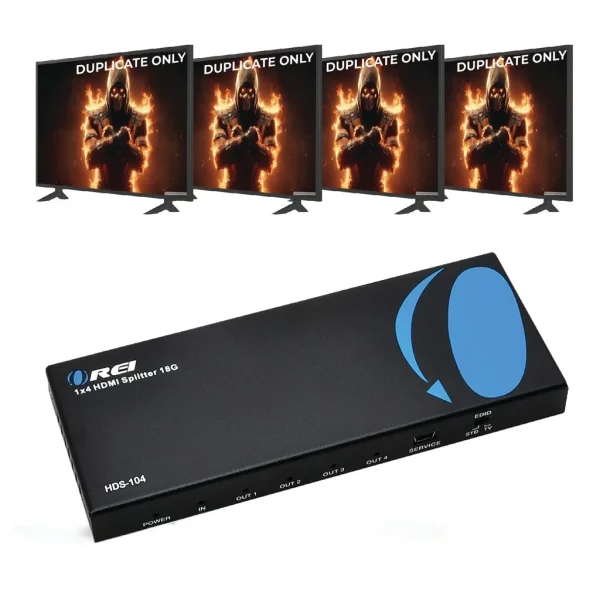

The OREI HDS-104 is a reliable 1×4 HDMI splitter that duplicates a single HDMI source to up to four displays simultaneously. Engineered to meet HDMI 2.0b, HDCP 2.3, and DVI 1.0 standards, it supports video resolutions up to 4K@60Hz with a bandwidth capacity of 18Gbps—ensuring crisp, high-quality video output.
This device is compatible with HDR, and 3D content, delivering an immersive viewing experience. It also supports 7.1-channel audio formats, including LPCM, Dolby TrueHD, and DTS-HD Master Audio, making it suitable for both home entertainment systems and professional AV installations.

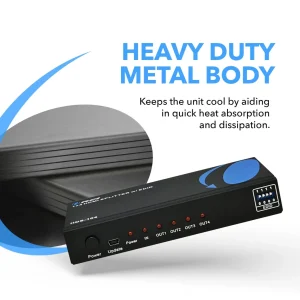

With built-in EDID management and two preset modes (STD and TV), the HDS-104 ensures optimal communication between connected devices. Its compact and durable design allows for easy integration into any setup, whether at home, in an office, or in commercial environments.
[tab]
| Input: | 1 × HDMI Type A (19-pin female) |
| Output: | 4 × HDMI Type A (19-pin female) |
| Video Bandwidth: | 18 Gbps |
| Video Resolution: | Up to 4K@60Hz and 2k@60Hz |
| Color Space: | YUV 4:2:2, YUV 4:4:4, YUV 4:2:0, RGB |
| HDMI Audio Formats: | LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio |
| EDID Management: | Yes |
| Video Downscaling: | No |
| Audio Extraction: | No |
| CEC: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes / No / No |
| MST Support (Extended Display): | No |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Power Supply: |
Input: AC 100-240V 50/60Hz Output: DC 5V/1A |
| Power Consumption: | 2W (Max) |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20 ~ 90% RH (Non-condensing) |
| Storage Humidity: | 10%~90% relative humidity, non-condensing |

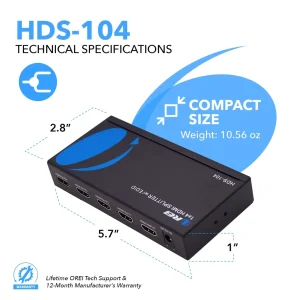

| Height: | 25 mm / 0.98in |
| Width: | 70 mm / 2.75in |
| Depth: | 145 mm / 5.70in |
| Weight: | 300 g / 10.58oz |
| REGULATORY: | CE | FCC | RoHS |
| 1 × HDS-104 1×4 HDMI Splitter |
| 1 × Power Adapter |
| 1 × User Manual |
| 1 – Year Manufacturer’s Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: HDS-104
