OREI 4K HDMI Audio Extractor Audio Passthrough
Key Features:
-
HDMI 2.0, HDCP 2.2 & DVI 1.0 Compliant – Fully compatible with modern HDMI standards and content protection.
-
Supports up to 4K@60Hz (4:4:4) – Delivers ultra-high resolution video with accurate color reproduction.
-
HDR10 & 10-bit HDR Support – Preserves brightness, contrast, and detail for stunning image quality.
-
Audio Extraction to SPDIF & Analog Outputs – Simultaneously outputs HDMI audio to optical and stereo L/R.
-
Bitstream Downmixing – Converts Dolby or DTS multi-channel audio to 2-channel stereo.
-
HDMI Pass-Through with Audio Retention – Maintains full HDMI video while extracting audio separately.
-
High Bit-Rate (HBR) Audio Pass-Through – Ensures premium audio formats are preserved over HDMI.
-
Optical Audio Support – Compatible with LPCM, Dolby Digital, and DTS formats.
-
192kHz Audio Sample Rate – Provides high-fidelity sound reproduction.
-
CEC Pass-Through – Enables simplified, integrated device control across HDMI connections.

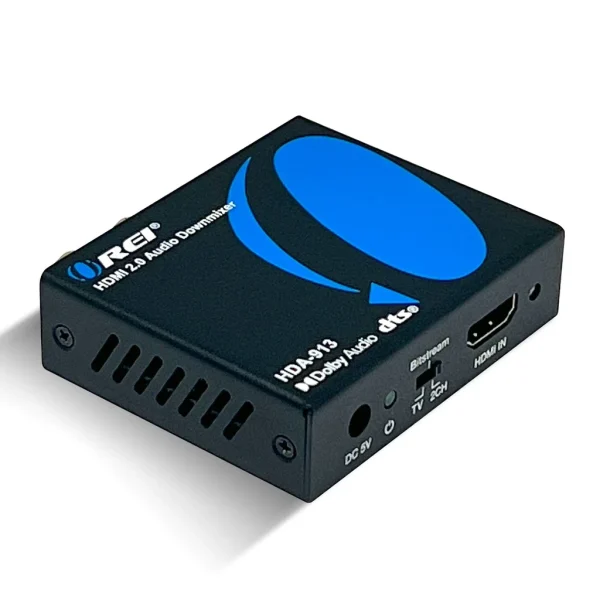

The HDA-913 is a high-performance HDMI audio extractor designed to convert digital HDMI audio into analog stereo or optical output. Fully compliant with HDMI 2.0, HDCP 2.2, and DVI 1.0, the HDA-913 supports up to 4K2K@60Hz (YUV 4:4:4) video resolutions.

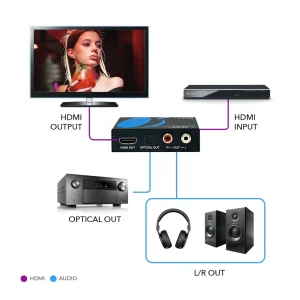

It enables seamless audio extraction from HDMI sources, allowing simultaneous output to HDMI, SPDIF, and L/R analog audio. With built-in downmixing capabilities, the unit converts multi-channel bitstream audio to stereo analog output without compromising signal integrity.
It also supports 10-bit HDR content and high-resolution audio formats including Dolby Atmos, DTS-HD Master Audio, and LPCM. Designed for maximum compatibility, this device is ideal for AV professionals, home theater enthusiasts, and commercial audio-visual systems.
[shortdes]
- Video Resolution up to 4K2K@50/60Hz(YUV4:4:4)
- HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant
- Bitstream audio down-mix to L/R analog output
[/shortdes]
[tab]
CONNECTIVITY
| INPUT : |
1 × HDMI Type A [19-pin female] |

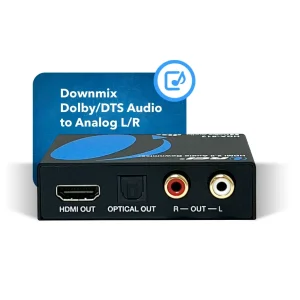

| OUTPUT : |
1 × HDMI Type A [19-pin female] |
|
1 × L/R Audio Out [RCA] |
|
1 × Optical Out [S/PDIF] |
COMPLIANCES
| HDMI Compliance |
HDMI 2.0b |
| HDCP Compliance |
HDCP 2.2/1.4 |
AUDIO AND VIDEO
| Video Bandwidth: |
18Gbps |
| Video Resolutions: |
Up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz |
| Color Space: |
RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth: |
10-bit, 12-bit |
| HDMI Audio Formats: |
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
ADDITIONAL FEATURES
| CEC: |
✅ |
| ARC: |
❌ |
| eARC: |
❌ |
| Dolby Atmos / DTS: |
✅ |
| EDID Management: |
❌ |
| Downmix/ Decoding: |
✅ / ❌
|
SWITCHES

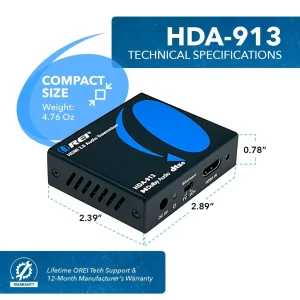

DIMENSIONS & WEIGHT
| Length: |
73.5mm / 2.89in |
| Width: |
60.7mm / 2.39in |
| Height: |
20mm / 0.79in |
| Weight: |
135g / 4.76oz |
PROTECTION
| Operation Temperature: |
32~104°F/0~40°C |
| Storage temperature: |
-4~140°F/-20~60°C |
| Operating Humidity: |
20~90% RH (non-condensing) |
| ESD Protection: |
Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
POWER
| Power Consumption (Max): |
1.25W (Max) |
| Power Supply: |
Input: AC 100-240V 50/60Hz; Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
PROPERTIES
| Color: |
Black |

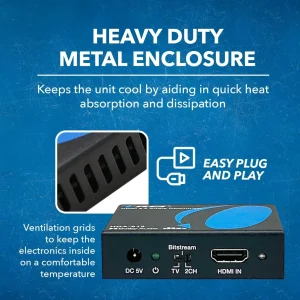

| Housing: |
Metal Enclosure |
PACKAGE CONTENTS

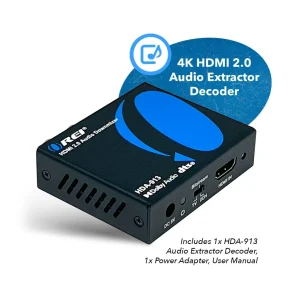

| 1x HDA-913 Audio Extractor |
| 1x 5V/1A Power Adapter |
| 1x User Manual |
WARRANTY
| 1-Year Manufacturer’s Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: HDA-913
[/tab1]
