Key Features:

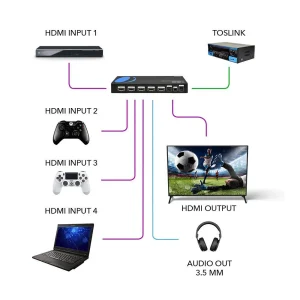

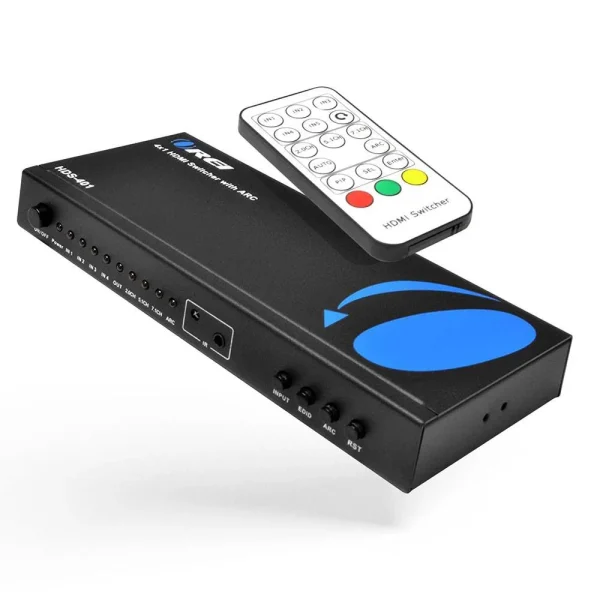

The HDS-401 is a high-performance AV routing device designed to connect up to four HDMI source devices to a single HDMI display. It offers convenient audio output via both S/PDIF and a 3.5mm headphone jack, making it ideal for integrating with home entertainment systems or AV installations.

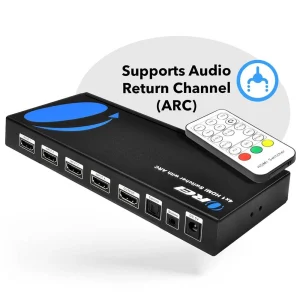

With support for HDMI v1.4, the switcher handles video resolutions up to 4K×2K@30Hz, as well as 3D video and Deep Color (24/30/36-bit). It also supports ARC (Audio Return Channel) through the HDMI output, enabling audio from compatible ARC-enabled TVs to be routed back through the switcher to external sound systems.

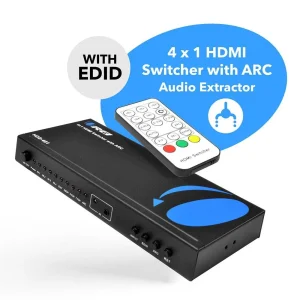

Additional features include audio EDID selection, CEC pass-through, and robust digital audio format compatibility. A wideband IR control system allows for IR signal forwarding or backward transmission, providing flexible remote control options across connected devices.
[shortdes]
[/shortdes]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: www.support.orei.com
[/tab1]
[tab]
| Input Ports: | 4 × HDMI Type A(Female type) |
| Output Ports: | 1 × HDMI Type A(Female type) |
| Video Bandwidth: | 300MHz/10.2 Gbps |
| Video Resolution: | 480i ~1080p50/60, 4Kx2K@24/30, VGA~UXGA |
| Digital Audio Formats: | DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD |
| HDMI Compliance | HDMI v1.4 |
| HDCP Compliance | HDCP 2.0 |
| CEC: | Yes |
| ARC: | Yes |
| USB KVM: | No |
| EDID Management: | Yes |
| Bi-directional IR: | No |
| IR Control : | Yes |
| Downmix: | Yes |
| Audio Extraction: | Yes |
| RS-232: | No |
| VRR: | No |
| Over IP: | No |
| Power Supply: | 5 V/1A DC (US/EU standards, CE/FCC/UL certified) |
| Power Consumption: | 1.5 W |
| CEC: | Pass through |
| Operating Temperature: | 0 °C~40 °C/ 32 °F~104 °F |
| Storage Temperature: | −20 °C ~ 60 °C/−4 °F ~140 °F |
| Relative Humidity: | 20~90 % RH (non-condensing) |

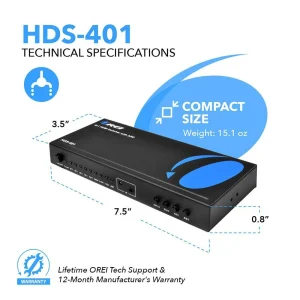

| Height: | 26 mm |
| Width: | 82 mm |
| Depth: | 190 mm |
| Weight: | 430g |
| Safety and Emission: | CE | FCC | RoHS |
| 1 × HDS-401 HDMI Switcher |
| 1 × 5V/1A DC Power Adapter |
| 1 × Remote Control |
| 1 × 38KHz IR Receiver |
| 1 × User Manual |
| 1 – Year Manufacturer’s Warranty |
