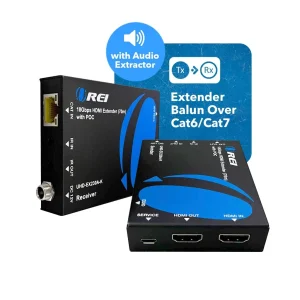

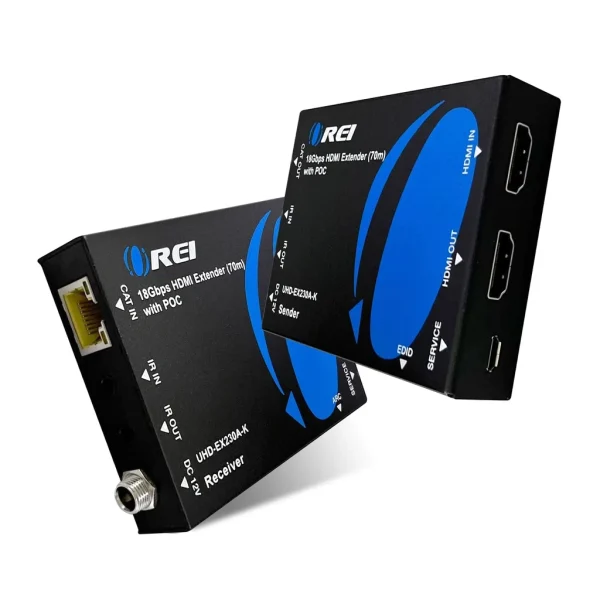

The UHD-EX230A-K is a high-performance HDMI extender with integrated audio extraction, delivering uncompressed AV signals over long distances. It supports 4K@60Hz and 2K@60Hz video up to 230 feet (70 meters) via a single Cat6/7 cable and is fully compliant with HDMI 2.0b and HDCP 2.2 standards. With 18Gbps bandwidth, it ensures flawless video quality and supports HDR10+ and Dolby Vision for premium visuals.

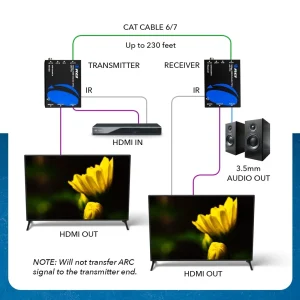

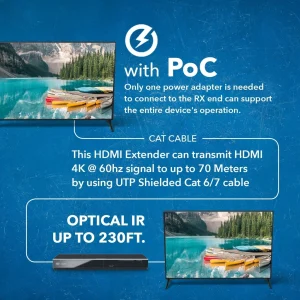

The extender features optical audio extraction, supporting LPCM 8.1CH, Dolby TrueHD, and DTS-HD Master Audio. It also offers HDMI loop-out for local display, bi-directional IR for remote control, and Power over Cable (PoC), requiring only a single power adapter. Its compact, durable design makes it ideal for both commercial AV setups and high-end home installations.
[shortdes]
[/shortdes]
[tab]
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × CAT [RJ45, 8-pin female] | ||
| 1 × IR IN [3.5mm Stereo Mini-jack] | ||
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| CONTROL: | 1 × SERVICE [Micro USB, Update port] | |
| 1 x OPTICAL [S/PDIF, female] | ||
| CONTROL: | 1 × IR IN [3.5mm Stereo Mini-jack] | |
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| 1 × SERVICE [Micro USB, Update port] |

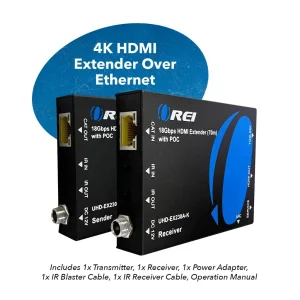

| 1x Transmitter |
| 1x Receiver |
| 1x IR Blaster Cable |
| 1x IR Receiver Cable |
| 4x Mounting ears |
| 8x Screws (KM3*4) |
| 1x Power Adapter |
| User Manual |
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
| 4K@60HZ: | 230 Feet |
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz, 2K@60Hz |
| ARC/eARC: | Yes / No |
| CEC: | No |
| Transmission Technology: | Ethernet |
| IR Control: | Bi-directional |
| PoC (Power over Cable): | Yes |
| RS-232: | No |
| USB Standard: | No |
| USB-C DP Alt Mode: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes / Yes / Yes |
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
| HDMI Audio Formats: | LPCM 7.1CH, Dolby True HD, and DTS-HD Master |
| Coaxial Audio Formats: | Dolby 5.1, DTS 5.1, PCM 2.0 |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Power Consumption: | 3.36W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 12V/1A |

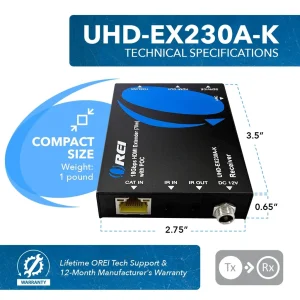

| Transmitter: | Length: | 90mm / 3.54in |
| Width: | 68mm / 2.68in | |
| Height: | 18mm / 0.71in | |
| Weight: | 160g / 5.64oz | |
| Receiver: | Length: | 90mm / 3.54in |
| Width: | 68mm / 2.68in | |
| Height: | 18mm / 0.71in | |
| Weight: | 155g / 5.47oz |
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 32 – 104°F / 0 – 40°C |
| Storage Temperature: | -4 – 140°F / -20 – 60°C |
| Relative Humidity: | 20~90% RH (Non-condensing) |
| 1-Year Manufacturer’s Warranty |
[/tab]
[tab1]
Visit Our Help Center for FAQs, Troubleshooting and other queries: UHD-EX230A-K
