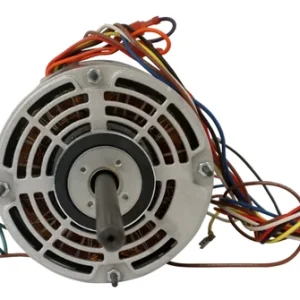

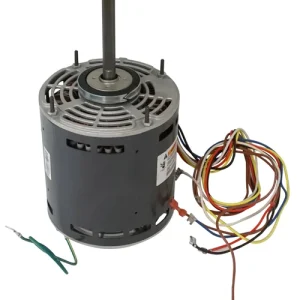

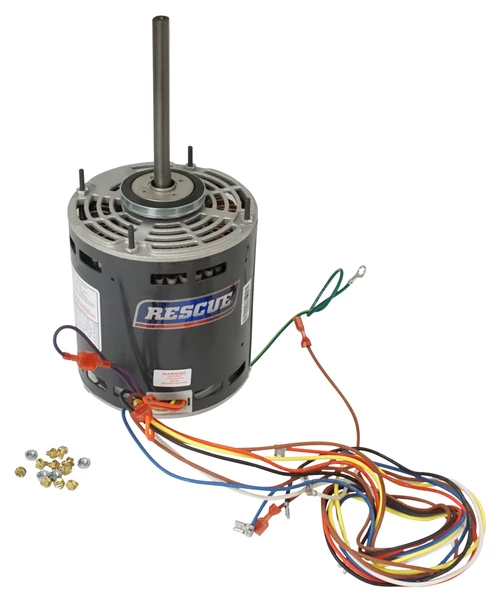

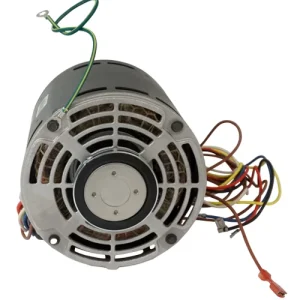

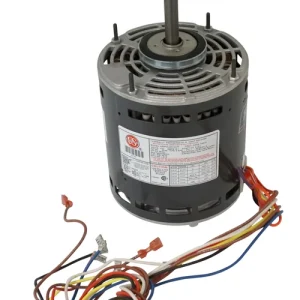

Direct Drive Fan & Blower Motor | PSC | 3/4–1/5 HP | 115V | 1075 RPM | Part #5470
Upgrade your HVAC system with this brand-new permanent split capacitor (PSC) direct drive fan and blower motor, part #5470. Engineered for both residential and commercial use, this motor features a compact 5.6″ diameter, open air over (OAO) enclosure, and reversible rotation for flexible installation. Designed for continuous duty operation, it includes 2.5″ hub rings and Rheem-compatible shell holes for easy mounting.
⚙️ Product Specifications:
- Electrical Type: Permanent Split Capacitor (PSC)
- ⚡ Voltage: 115V
- Horsepower Range: 3/4 to 1/5 HP
- Speeds: 4-speed operation
- Rotation: Reversible
- Motor Diameter: 5.6″
- Shaft Type & Size: N-type, 1/2″ x 5″
- Shell Type & Size: XL, 6.1″
- ️ Insulation Class: Class B
- Enclosure: Open Air Over (OAO)
- Mounting: All-angle mount with 2.5″ hub rings
- Shell Holes: Includes 4 holes for Rheem mount compatibility
- ️ Overload Protection: Automatic reset thermal protector
- Leads: 24 leads for versatile wiring
- ⚙️ Bearings: All-angle thrust system
- Capacitor: Designed for use with 370V capacitors (not included)
- Amps: 8.1A
- RPM: 1075
️ Installation Tips:
- Disconnect power before servicing or installing the motor
- Confirm mounting orientation and bracket compatibility
- Use included hub rings and shell holes for secure installation
- Connect leads according to motor diagram and capacitor rating
- Test rotation direction and airflow before final assembly
- Ensure shaft alignment and clearance for fan blades or blower wheels
Heavy-duty performance. Flexible mounting. Built for HVAC reliability.
