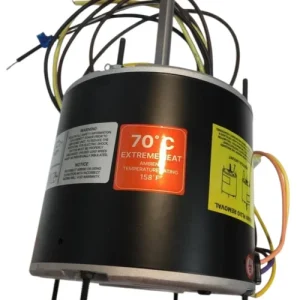

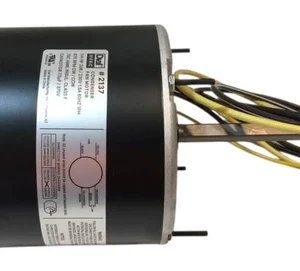

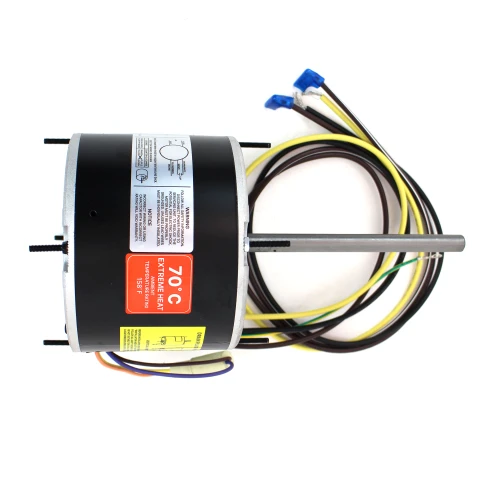

Dial Manufacturing 2137 – 1/4 HP Extreme Heat Condenser Fan Motor | 208/230V
Brand New – Built for High-Temperature HVAC Systems
Engineered for durability in demanding environments, the Dial 2137 condenser fan motor is rated for ambient temperatures up to 70°C (158°F). Ideal for residential and commercial condensing units, this motor delivers reliable airflow and long-lasting performance.
⚙️ Key Features:
- Horsepower: 1/4 HP
- Voltage: 208 / 230V
- Amperage: 1.5 A
- RPM: 825
- Capacitor: 7.5 MFD / 370V
- Motor Type: PSC (Permanent Split Capacitor)
- Frame Size: 48
- Enclosure: TEAO (Totally Enclosed Air Over)
- Insulation Class: F
- Ambient Temp: Rated for 70°C / 158°F
- Mounting: Extended studs, shell holes (screws included), belly band, shaft Up/Down
- Motor Diameter: 5.625 in.
- Shaft Diameter: 0.5 in.
- Shaft Extension: 6 in.
- Lead Length: 36 in.
- Rotation: Reversible
- Protection: Auto thermal shutoff
- Certification: UL Recognized
- Frequency: 60 Hz / Single Phase
Replaces These Part Numbers:
- Diversitech WG840204HT
- Mars 20404
- Packard 40825F
- Economaster EM3404F
- Century / AO Smith FE1028SF
- Smart Electric SE3378
- US Motors / Emerson 1874H
Built to last. Ready to perform. The Dial 2137 motor is your trusted solution for high-temperature condenser fan applications.
⚠️ Always verify compatibility before purchase. Professional installation recommended.
