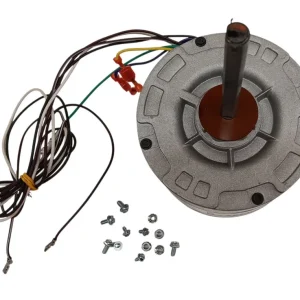

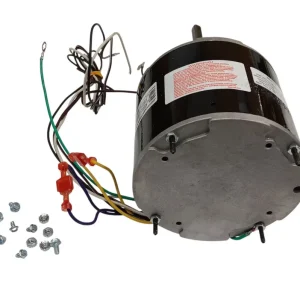

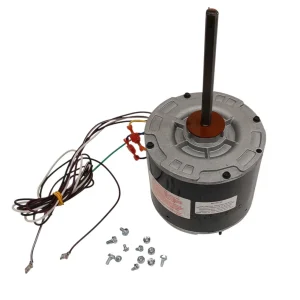

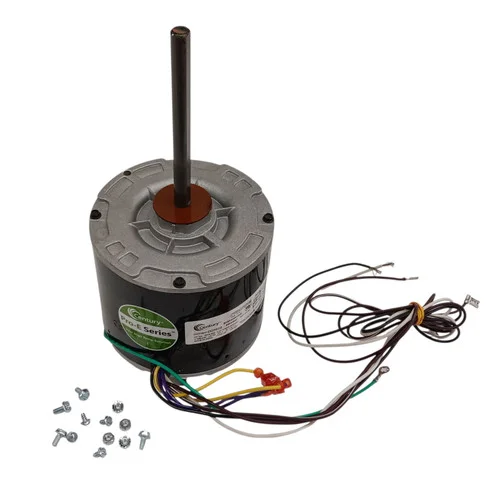

5.6″ Dia Condenser Fan Motor, 1/4 HP, 1-Spd, 208-230V, 825RPM, 48-Frame, EM3404F

Brand new, 5.6″ diameter electronically reversible condenser fan motor part number, EM3404F. 1/4 HP, 1 Speed, 60 Hz, 208-230 V, 825 RPM, 48 Frame, TE.

Specifications:

•     Single Phase
•     Amperage: 1.3 – 1.4
•     Overload Protection: Auto
•     Shaft: 1/2 x 6.0 Flat
•     Bearings: Ball
•     Capacitor: 5 MFD 370 V
•     Insulation Class: F
•     Ambient Temperature: 60°C / 70°C
•     Material: Rolled Steel
