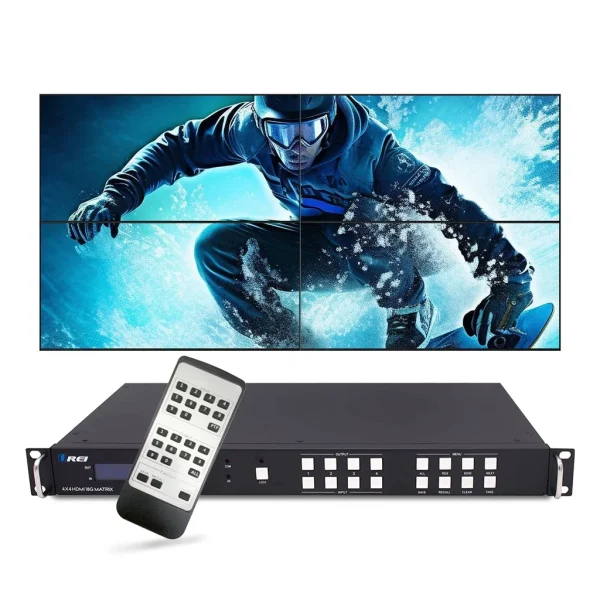

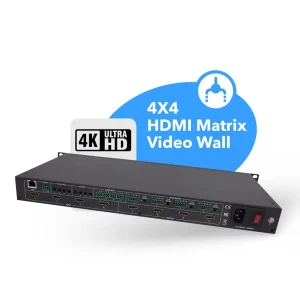

UHD-404VW: 4×4 Matrix with Video Wall controller

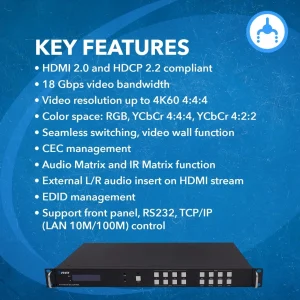

Key Features:
-
HDMI 2.0 & HDCP 2.2 Compliant – Ensures broad compatibility with modern UHD devices.
-
18Gbps Video Bandwidth – Supports full 4K60Hz 4:4:4 signal for pristine video quality.
-
Rich Color Space Support – Handles RGB, YCbCr 4:4:4, and 4:2:2 formats with high fidelity.
-
Seamless Switching & Video Wall Support – Instant input switching and multi-display tiling for professional applications.
-
CEC Management Enabled – Control connected devices with a single remote or central command.
-
Integrated Audio Matrix & IR Matrix – Independently route audio and IR signals across the matrix.
-
External L/R Audio Insertion – Mix external analog audio into HDMI output streams.
-
Advanced EDID Management – Customize and stabilize device communication.
-
Versatile Control Options – Operate via front panel, RS-232, or TCP/IP (LAN 10/100M) interface.

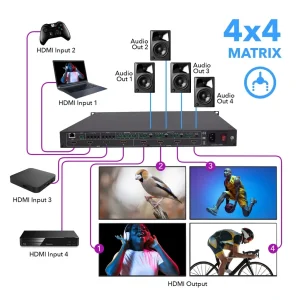

The 18Gbps 4×4 Seamless UHD Matrix Switcher allows you to route any of four HDMI sources to any of four HDMI displays with uncompressed 4K@60Hz 4:4:4 video quality. Designed for high-performance AV systems, this matrix switcher features seamless switching with zero latency, video wall functionality, and full support for IR and audio matrix routing.
It also supports CEC pass-through, allowing centralized control over connected HDMI devices. External L/R audio input insertion, EDID customization, and multiple control interfaces (RS-232, LAN, front panel) make it ideal for command centers, conference rooms, digital signage, and AV integration projects.
This is a robust, flexible solution that offers total control over video and audio routing, ideal for both commercial and high-end residential installations.
[shortdes]
-

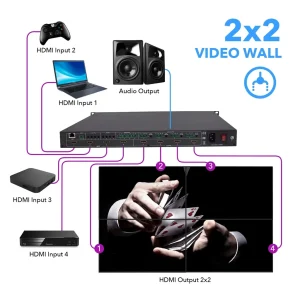

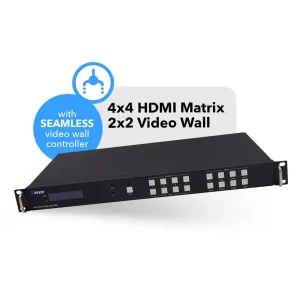

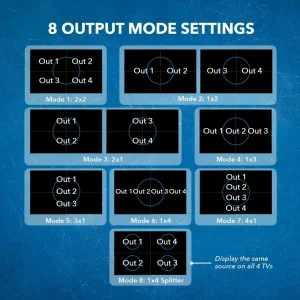

2×2 Video wall controller
-
Video resolutions up to 4K@60Hz and 2k@60Hz
-
IR matrixing and audio matrixing
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: |
4 × HDMI [Type A, 19-pin female] |
|
|
4 × L/R [3-pin phoenix] |
|
| OUTPUT: |
4 × HDMI [Type A, 19-pin female] |
|
|
4 × L/R [5-pin phoenix] |
|
|
4 × L/R+Toslink [mini Toslink] |
|
| CONTROL: |
1 x LAN [RJ45, 8-pin, female] |
|
|
4 × IR IN [3.5mm Stereo Mini-jack] |
|
|
4 × IR OUT [3.5mm Stereo Mini-jack] |
|
|
1 × RS-232 [3-pin Phoenix connector] |
|
PACKAGE CONTENTS
| 1x UHD-404VW |
| 4x IR Receiver Cable |
| 4x IR Blaster Cable |
| 1x Remote |
| 1x 3-Pin Phoenix connector |
| 1x AC Power cord |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/ 2.1 |
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
18 Gbps |
| Video Resolutions: |
Up to 4K@60Hz, 2k@60Hz |
ADDITIONAL FEATURES
|
CEC:
|
✅ |
|
IR Control:
|
✅ |
|
RS-232:
|
✅ |
|
Fast Seamless Switching:
|
✅ |
|
Video Wall Scene Save/Recall:
|
✅ |
|
PIP with Video Wall:
|
✅ |
|
Audio Extraction:
|
✅ |
|
USB-C Input:
|
❌ |
|
EDID Management:
|
✅ |
|
Web GUI Interface:
|
✅ |
|
TCP/IP Control:
|
✅ |
LOOP-OUT / LOCAL PORTS
| Has loop out port: |
No |
| Number of Loop out ports: |
0 |
AUDIO SUPPORT
| HDMI Audio Formats: |
PCM 2.0
|
| 3.5mm Analog Audio Formats: |
PCM 2.0 |
COMPLIANCES
| HDMI Compliance |
HDMI 2.0 |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
60W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
DIMENSIONS & WEIGHT

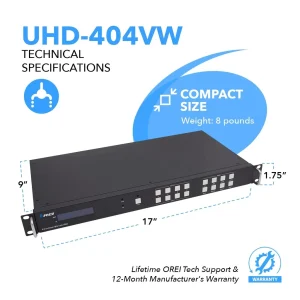

| Length:
|
430mm / 16.93in |
|
| Width: |
220mm / 8.66in |
|
| Height:
|
44mm / 1.73in |
|
| Weight:
|
5kg / 11.02lbs |
|
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
| Operation Temperature: |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: |
-20°C ~ 70°C / -4°F ~ 158°F |
| Operating Humidity: |
10%~50% RH (non-condensing) |
WARRANTY
| 1-Year Manufacturer’s Warranty |
