Availability: 6 in stock

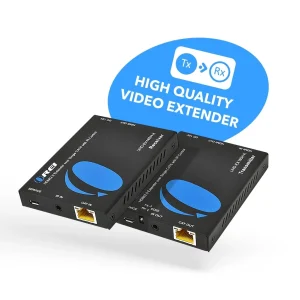

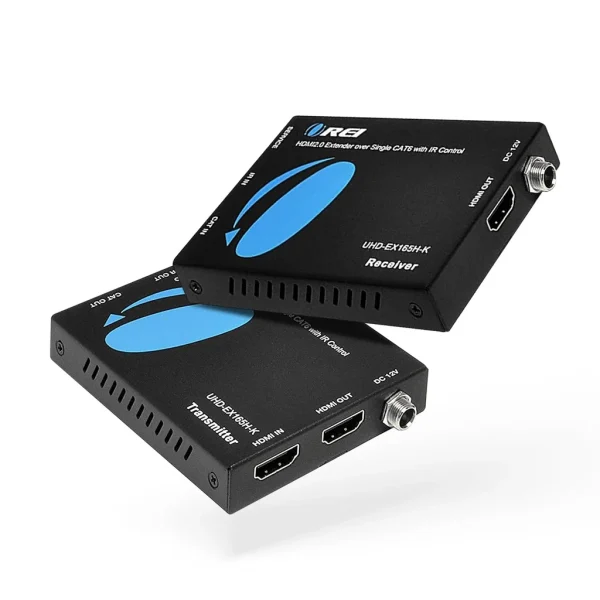

UHD-EX165H-K is a high-performance HDMI extender designed for seamless 4K video transmission over long distances via a single CAT 6/7 cable.
Supporting HDMI 2.0 and HDCP 2.2, it delivers up to 18Gbps bandwidth, ensuring uncompressed signal quality and full compatibility with advanced formats including 12-bit color depth and HDR.

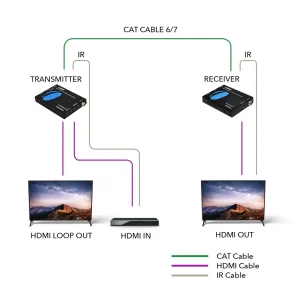

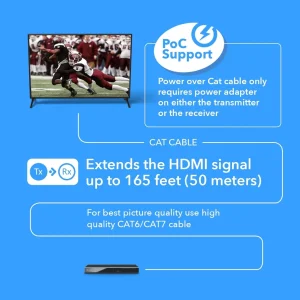

With signal extension up to 165 feet (50 meters) and features such as HDMI loop-out, one-way IR control, and Power over Cable (PoC), this device enables convenient integration into both residential and commercial AV setups. Its compact design and single-adapter power solution allow for flexible and discreet installation near displays or sources.
[shortdes]
[/shortdes]
[tab]
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × CAT [RJ45, 8-pin female] | ||
| CONTROL: | 1 × IR OUT [3.5mm Stereo Mini-jack] | |
| 1 × SERVICE [Micro USB, Update port] | ||
| Receiver: | INPUT: | 1 × CAT [RJ45, 8-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1 × IR IN [3.5mm Stereo Mini-jack] | |
| 1 × SERVICE [Micro USB, Update port] |
| 1x Transmitter |
| 1x Receiver |

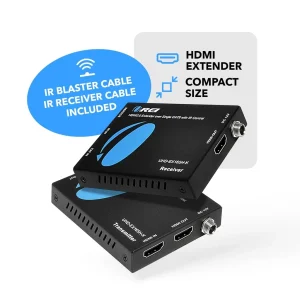

| 1x IR Blaster cable |
| 1x IR Receiver cable |
| 1x Power Adapter |
| User Manual |
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
| 4K@60Hz: | 165 Feet |
| ARC/eARC: | No / No |
| CEC: | No |
| Transmission Technology: | Ethernet |
| IR Control: | Uni-directional |
| PoC (Power over Cable): | Yes |
| RS-232: | No |
| USB Standard: | No |
| USB-C DP Alt Mode: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes / No / No |
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
| HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DSD-HD Master Audio, DSD |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
| Power Consumption: | 6.36W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 12V/1A |

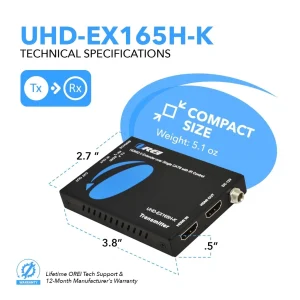

| Transmitter: | Length: | 101.5mm / 3.99in |
| Width: | 69.3mm / 2.73in | |
| Height: | 13.3mm / 0.52in | |
| Weight: | 150g / 5.29oz | |
| Receiver: | Length: | 101.5mm / 3.99in |
| Width: | 69.3mm / 2.73in | |
| Height: | 13.3mm / 0.52in | |
| Weight: | 144g / 5.08oz |
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 32 – 104°F / 0 – 40°C |
| Storage Temperature: | -4 – 140°F / -20 – 60°C |
| Relative Humidity: | 20 – 90% RH (no condensation) |
| 1-Year Manufacturer’s Warranty |
[/tab]
[tab1]
Visit Our Help Center for FAQs, Troubleshooting and other queries: UHD-EX165H-K
