Availability: 5 in stock

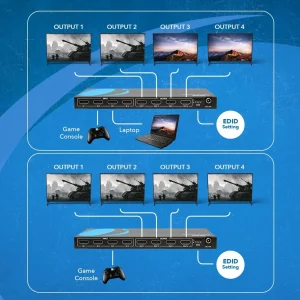

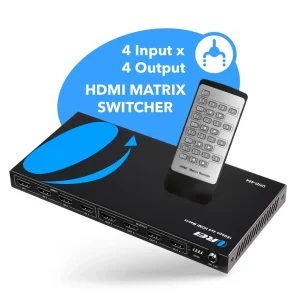

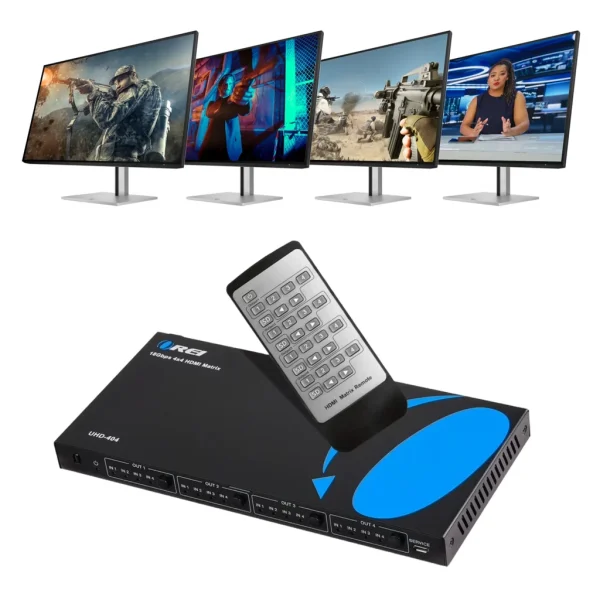

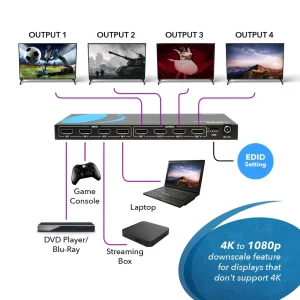

The OREI UHD-404 HDMI Matrix is a versatile 4×4 switch and splitter that routes video and audio signals from up to four HDMI sources to any combination of four HDMI displays. It is perfect for commercial setups, control rooms, or advanced home AV installations requiring flexible signal distribution.
It supports video resolutions up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4 and is compliant with HDMI 2.0 and HDCP 2.2 standards. With up to 18Gbps bandwidth, the matrix ensures smooth transmission of ultra-high-definition content. HDR formats including HDR, HDR10, HDR10+, and Dolby Vision are fully supported for vivid and enhanced picture quality.
The UHD-404 supports multichannel digital audio formats such as LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio. Each output includes a built-in downscaler, allowing simultaneous use of 4K and 1080p displays. The matrix also features advanced EDID management to maintain compatibility across all connected devices.

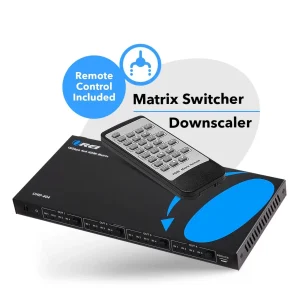

Users can easily switch between inputs and outputs in distribution or switching modes using the front panel or the included IR remote, offering full control and convenience.
[tab]
| Inputs: | 4 × HDMI Type A (19-pin female) |
| 1×IR Receiver Window | |
| 1×Micro USB | |
| Output Ports: | 4 × HDMI Type A (19-pin female) |
| Video Bandwidth: | 594 MHz / 18 Gbps |
| Video Resolution: | 480i ~ 1080p 50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Space: | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| HDMI Audio Formats: | LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 / 1.x |
| Power Supply: | Input: AC100~240V 50/60Hz, Output: DC 12V/2.5A(US/EU standard, CE/FCC/UL certified) |
| Power Consumption: | 11.04W |
| Audio Extraction: | ❌ |
| ARC / eARC Passthrough: | ❌ |
| EDID Management: | ✅ |
| VRR / ALLM / FVA: | ❌ |
| Dolby Atmos / DTS X Passthrough: | ❌ |
| 4K to 1080p Downscale: | ✅ |
| USB KVM: | ❌ |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20 ~ 90% RH (non-condensing) |
| Height: | 19 mm |
| Width: | 220 mm |
| Depth: | 205 mm |
| Weight: | 535 g |
| REGULATORY: | CE | FCC | RoHS |
| 1 × UHD-404 4×4 HDMI matrix switch |
| 1 × Power Adapter |
| 1 × Matrix IR Remote Control |
| 2 × Mounting Ears |
| 1 × User Manual |
| 1 – Year Manufacturer’s Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: UHD-404
