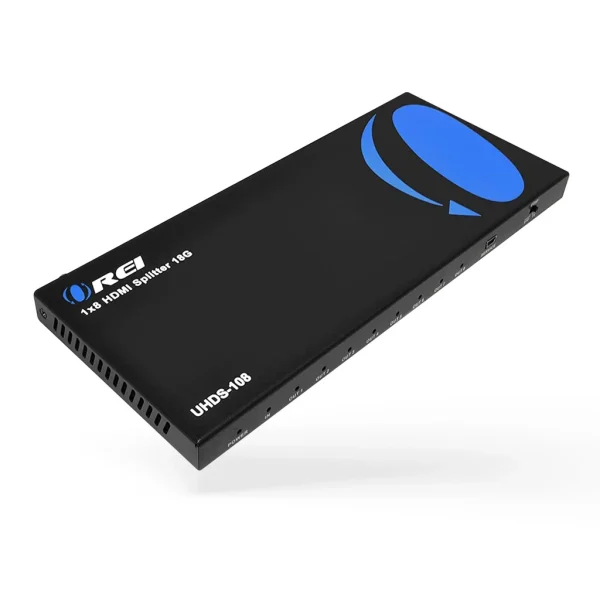

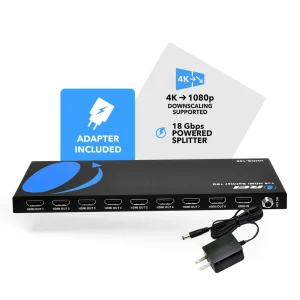

OREI UHDS-108: 1×8 18Gbps 4K HDMI Splitter
Key Features:
-
HDMI 2.0b and HDCP 2.2 Compliant – Ensures compatibility with the latest video and content protection standards.
-
18Gbps Video Bandwidth – Delivers high-quality, uncompressed audio and video signals.
-
Video Resolutions up to 4K@60Hz 4:4:4 – Offers clear, ultra-high-definition video output.
-
HDR Support – Enhances color and contrast for an improved viewing experience.
-
EDID Management – Allows easy EDID selection between STD and TV modes for optimal compatibility.
-
Compact Design – Space-saving and ideal for a variety of installations.
-
Advanced Audio Support – Compatible with Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD Master Audio, and more.

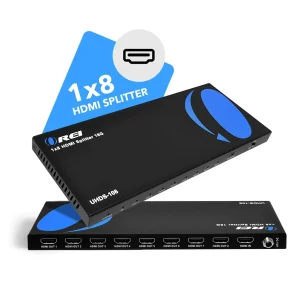

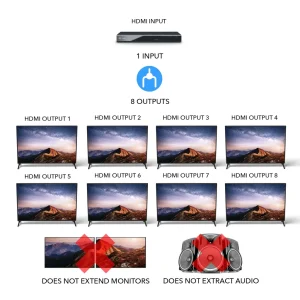

The UHDS-108 is an 8-port HDMI splitter designed to distribute a single HDMI source to eight displays simultaneously with consistent signal quality.
It is HDMI 2.0b and HDCP 2.2 compliant, supporting video resolutions up to 4K@60Hz and a video bandwidth of 18Gbps for smooth and detailed playback. This splitter supports LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio for a rich, immersive audio experience.
Equipped with EDID management, it ensures seamless communication between connected devices. Its compact and durable design makes it ideal for both residential setups and demanding commercial environments.
[shortdes]
- 1×8 4K HDMI splitter
- Resolutions up to 4K@60Hz and 2K@60Hz
-
EDID management
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: |
1 × HDMI [Type A, 19-pin female] |
|
| OUTPUT: |
8 × HDMI [Type A, 19-pin female] |
|
| CONTROL: |
1× SERVICE [Mini-USB B, Update port] |
|
PACKAGE CONTENTS
| 1x UHDS-104 HDMI Splitter |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 |
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
18Gbps |
| Video Resolutions: |
Up to 4K@60Hz and 2K@60Hz
|
ADDITIONAL FEATURES
| EDID Management: |
Yes |
| Video Downscaling: |
No |
| Audio Extraction: |
No |
| CEC: |
No |
| HDR10 / HDR10+ / Dolby Vision: |
Yes / No / No |
| MST Support (Extended Display): |
No |

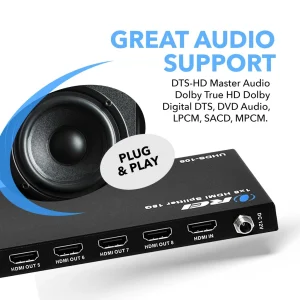

AUDIO SUPPORT
| HDMI Audio Formats: |
PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X
|
COMPLIANCES
| HDMI Compliance |
HDMI 2.0b |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
6.15W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 12V/1A |
|

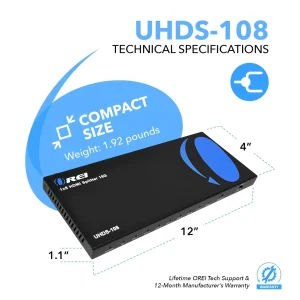

DIMENSIONS & WEIGHT
| Length:
|
243mm / 9.57in |
|
| Width: |
102mm / 4.01in |
|
| Height:
|
16mm / 0.63in |
|
| Weight:
|
572g / 1.26lbs |
|
PROPERTIES
| Color: |
Black |

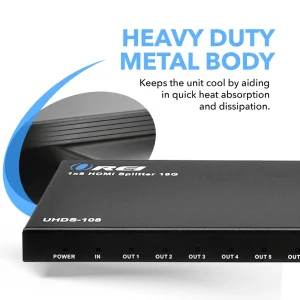

| Housing: |
Metal Enclosure |
| Operating Temperature: |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: |
-20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: |
20~90% RH (Non-condensing) |
WARRANTY
| 1-Year Manufacturer’s Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: UHDS-108
