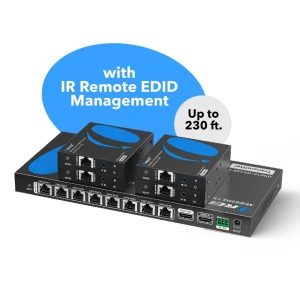

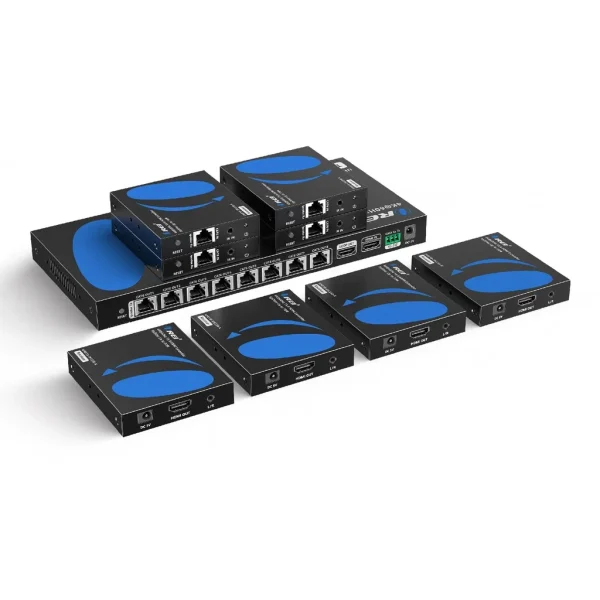

OREI UHD18-IPC230-K 4K HDMI Extender Splitter up to 230Ft
Key Features:
Supports up to 4K@60Hz resolutions – Delivers sharp, high-definition video with vibrant detail.
Zero-latency transmission – Ensures real-time video delivery for live and interactive applications.
Extends signals up to 230 feet – Uses shielded Cat6/7 cables for long-distance, stable transmission.

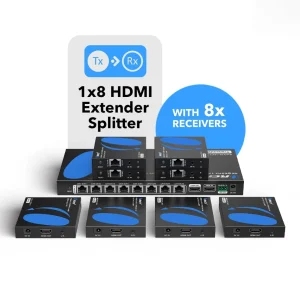

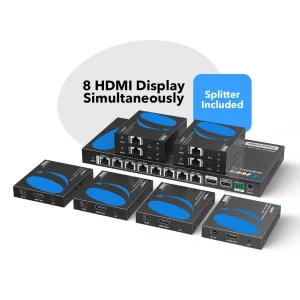

1×8 HDMI distribution – Simultaneously sends one HDMI input to eight synchronized displays.
HDMI loop-out on transmitter – Allows connection of a local monitor for on-site viewing.
S/PDIF audio output on receiver – Extracts digital audio from either the source or connected display.
Bi-directional IR support – Enables remote control from both transmitter and receiver ends.
RS-232 command control – Allows integration with control systems for professional AV setups.
Advanced EDID management – Ensures compatibility with various display types and configurations.
Built-in surge, lightning, and ESD protection – Guards your equipment against electrical damage.
Rack-mount ready – Includes mounting ears for secure installation in AV racks.
Ideal for professional AV environments – Suitable for classrooms, studios, control rooms, and public installations.

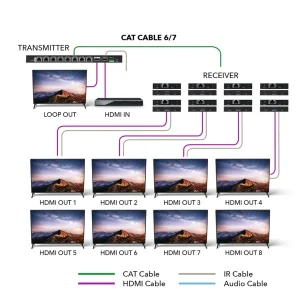

The UHD18-IPC230-K is a high-performance 1×8 HDMI extender splitter kit that combines distribution and extension functions in a single unit. It transmits one HDMI input to eight synchronized outputs with zero-latency performance, extending signals up to 230 feet using shielded Cat6/7 cables. Supporting resolutions up to 4K@60Hz with 18Gbps video bandwidth, this extender leverages advanced ipcolor technology for reliable, high-definition signal delivery.
The transmitter includes an HDMI loop-out for a local display, and the receiver offers audio extraction via a dedicated S/PDIF output. Bi-directional IR and RS-232 control are supported for flexible device integration, while advanced EDID settings ensure optimal display compatibility. Built-in protection circuits guard against lightning, surge, and ESD. Rack-mount ready and built for durability, the UHD18-IPC230-K is ideal for studios, classrooms, transit centers, and other commercial AV environments.
[shortdes]
Supports ipcolor technology
Supports 18Gbps video bandwidth
Supports RS-232 Control & Advance EDID
[/shortdes]
[tab]
AUDIO AND VIDEO
Transmitter:
INPUT PORTS:
1x HDMI INPUT
OUTPUT PORTS:
8x RJ45 OUTPUT
1x HDMI OUTPUT
Receiver:
INPUT PORTS:
1x RJ45 INTPUT
OUTPUT PORTS:
1x HDMI OUTPUT
COMPLIANCES
HDMI Compliance:
HDMI 2.0
HDCP Compliance:
HDCP 2.2
Transmission Protocol:
Ipcolor
ADDITIONAL FEATURES
ARC/eARC:
No
CEC :
No
Transmission Technology :
Ethernet
IR Control:
Yes, Uni-directional
PoC (Power over Cable):
Yes
RS-232:
Yes
USB Standard:
No
USB-C DP Alt Mode:
No
HDR10 / HDR10+ / Dolby Vision:
No
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@60Hz:
Up to 230 Feet
VIDEO OUTPUT
Video Bandwidth:
18 Gbps
Video Resolutions:
Up to 4K@60Hz
Color Space:
RGB YCbCr4::4:4 YCbCr4::4:2 YCbCr4::2:0
Color Depth:
8bit
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
SWITCHES
EDID Management:
Supports Advance EDID Management Control
ARC:
Supports ARC from the TV (receiver end)
S/PDIF:
Supports from the source device
AUDIO OUTPUT
HDMI Audio Formats:
LPCM/DTS-HD/DTS-Audio/ Dolby Digital 5.1CH
SPDIF/Optical Audio Formats:
Up to 5.1Ch
SIGNALS
TMDS Signals:
0.7~1.2Vp-p
DDC Signals:
5Vp-p

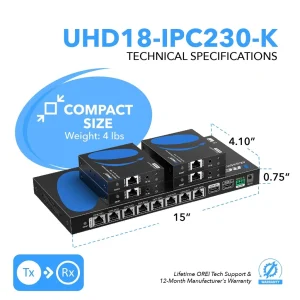

DIMENSIONS & WEIGHT
Transmitter:
Height:
23.5mm
Width:
120mm
Depth:
260mm
Weight:
724g
Receiver:
Height:
26.2mm
Width:
99mm
Depth:
106mm
Weight:
210g
PROTECTION
ESD Protection:
1a Contact discharge level 3, 1b Air discharge level 3, implementation of the standard: IEC61000-4-2
Electrostatic Protection of the whole Machine:
IEC61000-4-2
Lightning Protection:
Yes
Surge Protection:
Yes
RJ-45 CONNECTOR Type
8P8C connector
POWER
Power Consumption (Max)
Transmitter:
24W
Receiver:
4W
Power Supply
Input:
DC 12V/2A
Output:
DC 5V/2A
PHYSICAL PROPERTIES
Color:
Black
Housing:
Aluminium Alloy Material + Crystal Panel
Processing Technology:
Ipcolor transmission technology
Finishing:
Grit blast
Operation Temperature:
-20°C ~ 60°C / -4°F ~ 140°F
Storage Temperature:
-30~70℃ / -22°F ~ 158°F
Operating Humidity:
0~90% RH (non-condensing)
PACKAGE CONTENTS
1x HDMI Transmitter
8x HDMI Receivers
1x DC 12V/3A Power Adapter
8x DC 5V/2A Power Adapter
1x Terminal Block (RS-232)
1x IR Blaster Extension Cable
8x IR Receiver Extension Cable
36x Mounting Brackets
72x Screw
WARRANTY
1 – Year Manufacturer’s Warranty
