OREI HDA-927: eARC HDMI Audio Extractor Converter
Key Features:
-
HDMI 2.0b & HDCP 2.2 Compliant – Ensures compatibility with the latest 4K content protection and transmission standards.
-
Supports Resolutions up to 4K@60Hz (4:4:4) – Delivers ultra-clear UHD video with vivid color accuracy and smooth frame rates.
-
18Gbps Video Bandwidth – Transmits high-bandwidth, uncompressed video streams for premium viewing quality.
-
HDR10 & Dolby Vision Pass-Through – Maintains full dynamic range and cinematic color from source to display.
-
Advanced Audio Format Support – Compatible with PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-ES, DTS HRA, DTS-HD Master Audio, and DTS:X.
-

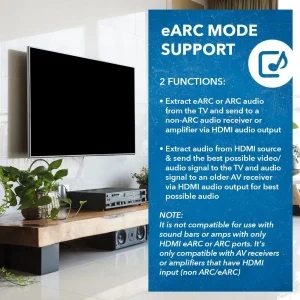

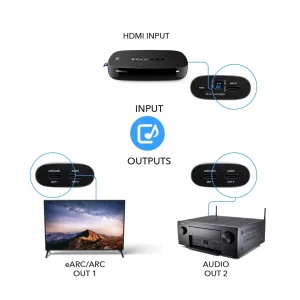

Dual Audio Extraction Modes – Extract audio directly from HDMI source or via eARC/ARC from compatible TVs.
-

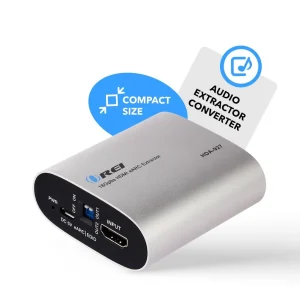

Compact Plug-and-Play Design – Simple setup with a small footprint, ideal for space-constrained home theater systems.

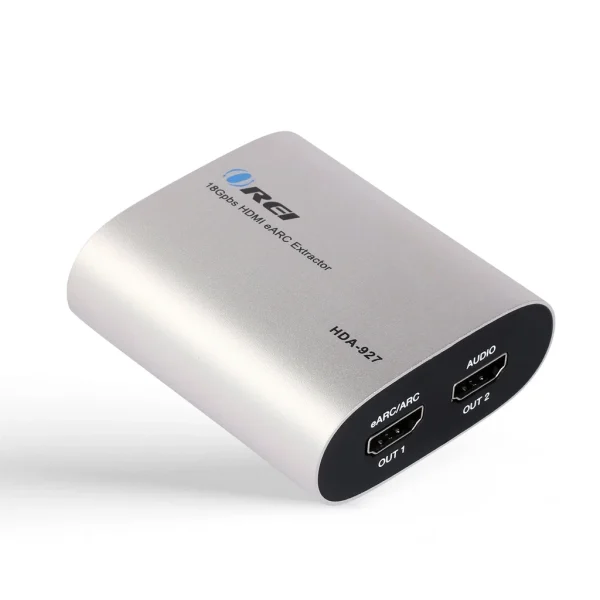

The HDA-927 HDMI eARC Audio Extractor is a compact, high-performance solution designed to bridge the gap between modern eARC-enabled TVs and AV receivers or amplifiers that lack ARC/eARC support. With full HDMI 2.0b and HDCP 2.2 compliance, it delivers video resolutions up to 4K@60Hz (4:4:4) and supports HDR10 and Dolby Vision for an uncompromised visual experience.
Capable of extracting high-definition audio directly from the source or from an eARC/ARC-enabled TV, this extractor ensures flexible integration with any home entertainment setup. It supports a wide range of audio formats, including Dolby Atmos, Dolby TrueHD, DTS:X, and LPCM 7.1, making it ideal for high-fidelity audio distribution.
Its sleek and compact form factor is designed for plug-and-play convenience, making the HDA-927 a go-to choice for audiophiles and home theater enthusiasts seeking to expand compatibility and performance without replacing existing AV gear.
[summary]
- eARC Mode Support
- 4K Ultra HD Support
- HDMI 2.0 (18Gbps)
[/summary]
[shortdes]
- Supports video resolution up to 4K@60Hz with 24bit RGB/YCBCR 4:4:4
- Supports eARC/ARC audio extraction from TV to HDMI audio output

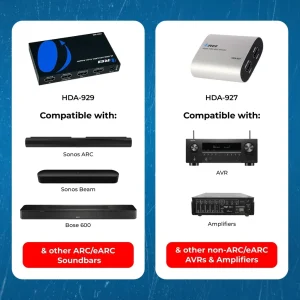

- NOTE: Does NOT work with eARC Soundbars like Sonos and Bose. Use HDA-929 for eARC Soundbars
[/shortdes] [tab]
AUDIO AND VIDEO
| INPUT : |
1 × HDMI [Type A, 19-pin female] |
|
| OUTPUT : |
2 × HDMI [Type A, 19-pin female] |
|
COMPLIANCES
| HDMI Compliance |
HDMI 2.0b |
| HDCP Compliance |
HDCP 2.2 |
ADDITIONAL FEATURES
| CEC: |
❌ |
| ARC: |
✅ |
| eARC: |
✅ |
| Dolby Atmos / DTS: |
✅ |
| EDID Management: |
❌ |
| Downmix/ Decoding: |
❌ |
VIDEO OUTPUT
| Video Bandwidth: |
18 Gbps |
| Video Resolutions: |
4k@60Hz 4:4:4 |
| Color Space: |
RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 |
| Color Depth: |
8-bit, 10-bit, 12-bit (1080p@60Hz), 8-bit (4K2K@60Hz YUV4:4:4), 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) |
CEC & EARC SUPPORT
| CEC: |
CEC commands will only work between HDMI input and HDMI output 1 |
| eARC/ARC: |
Yes |

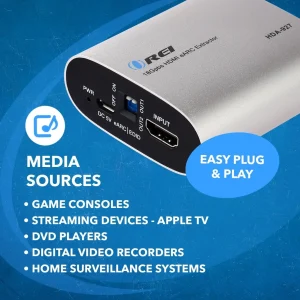

SWITCHES
| EDID: |
The EDID switch is used to select EDID settings. Switch to “OUT1” / “OUT2” position, HDA-927 will copy the corresponding EDID from the device connected to OUT1 / OUT2 port. If the copy fails, it will use the internal EDID of the default 1080p 2Ch. |
| eARC/ARC: |
The eARC/ARC switch is used to turn ON/OFF the eARC function. Switch to “ON” position, the AUDIO OUT2 port will output the eARC/ARC audio, Switch to “OFF” position, the AUDIO OUT2 port will output the audio from HDMI IN port |
AUDIO OUTPUT
| HDMI Audio Formats: |
PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X |

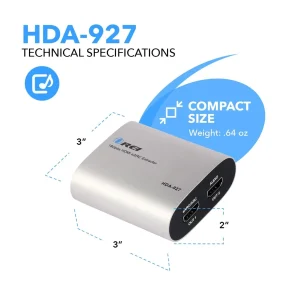

DIMENSIONS & WEIGHT
| Length: |
70mm/2.76in |
| Width: |
65mm/2.56in |
| Height: |
27mm/1.06in |
| Weight: |
83g/2.93oz |
PROPERTIES
| Operation Temperature: |
32~104°F/0~40°C |
| Storage temperature: |
-4~140°F/-20~60°C
|
| Operating Humidity: |
20~90% RH (non-condensing) |
| ESD Protection: |
Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
POWER
| Power Consumption (Max): |
1.75W |
|
|
|
|
|
|
|
| Power Supply |
USB 5V |
|
|
|
|
PHYSICAL PROPERTIES
| Color: |
Silver |
| Housing: |
Aluminium Enclosure |
PACKAGE CONTENTS
| 1x HDA-927 Audio Extractor |
| 1x USB Cable (USB-A to Micro USB) |
| User Manual |
WARRANTY
| 1-Year Manufacturer’s Warranty |
[/tab]
