Availability: 7 in stock
Key Features:

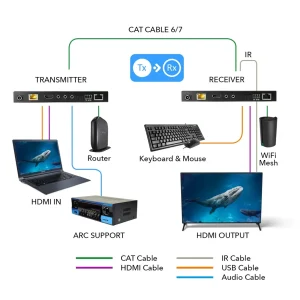

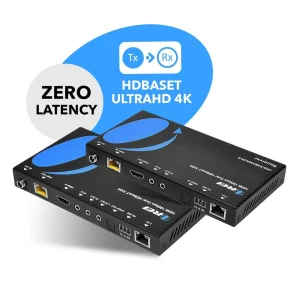

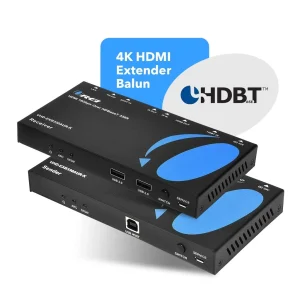

This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR and internet signal, at the distance of up to 328ft / 100 meters between transmitter and receiver via a single CAT6a/7 cable and support resolution up to 4K2K@60Hz 4:4:4. The transmitter supports ARC function and local audio extract. In addition, the extender is equipped with bi-directional IR pass-through which allows for source and display control. It also supports USB KVM and POC function.
The extender offers the most convenient solution for HDMI extension via a single CAT cable with long distance capability, and is the perfect solution for any application.
[tab]

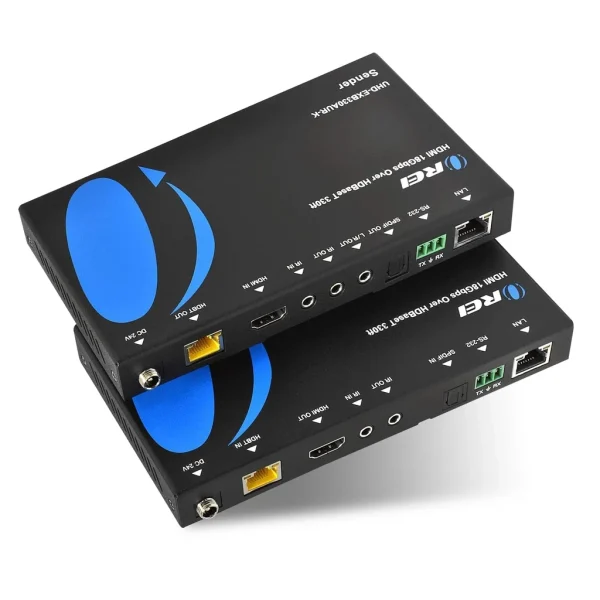

| Transmitter: | Input: | 1x HDMI Type A [19-pin female] |
| Output: | 1x HDBT OUT [RJ45, 8-pin female] | |
| 1x SPDIF OUT [S/PDIF] | ||
| 1×L/R OUT [3.5mm Stereo Mini-jack] | ||
| 1×LAN [RG45] | ||
| Control: | 1x IR IN [3.5mm Stereo Mini-jack] | |
| 1x IR OUT [3.5mm Stereo Minijack] | ||
| 1x RS-232 [Phoenix jack] | ||
| 1x SERVICE [Mini-USB, Update port] | ||
| 1×USB HOST [USB Type B] | ||
| Receiver: | Input: | 1x HDBT IN [RJ45, 8-pin female] |
| 1x SPDIF IN [S/PDIF] | ||
| Output: | 1x HDMI Type A [19-pin female] | |
| 1x LAN [RG45] | ||
| Control: | 1x IR IN [3.5mm Stereo Mini-jack] | |
| x IR OUT [3.5mm Stereo Mini-jack] | ||
| 1x RS-232 [Phoenix jack] | ||
| 1x SERVICE [Mini-USB, Update port] | ||
| 2×USB 2.0 [USB Type A] |
| 1x 18Gbps HDMI over HDBaseT Extender (Transmitter) |
| 1x 18Gbps HDMI over HDBaseT Extender (Receiver) |
| 1x IR Blaster cable (1.5 meters) |
| 1x 20~60KHz IR Receiver cable (1.5 meters) |
| 4x Mounting Ear |
| 2x 3-pin Phoenix connector |
| 1x 24V/1A Locking Power adapter |
| User Manual |
| ARC/eARC: | ❌ |
| CEC : | ✅ |
| Transmission Technology : | HDBaseT |
| IR Control: | Yes, Bi-directional |
| PoC (Power over Cable): | ✅ |
| RS-232: | ✅ |
| USB Standard: | USB 2.0 |
| USB-C DP Alt Mode: | ❌ |
| HDR10 / HDR10+ / Dolby Vision: | ✅ |
| HDCP Compliance | HDCP 2.2 / HDCP 1.4 |
| Power Consumption: | 13W |
| Power Supply: | Input: AC 100 – 240V 50/60Hz |
| Output: DC 24V/1A (Locking connector) |

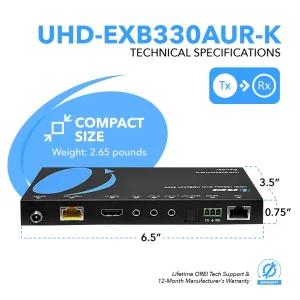

| Sender / Receiver: | Length: | 165mm / 6.50in |
| Width: | 88mm / 3.46in | |
| Height: | 18mm / 0.70in | |
| Weight: | 335g / 0.74lb |
| Color: | Black |
| Housing: | Metal Enclosure |
| ESD Protection: | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Operating Temperature: | 32 – 104°F / 0 – 40°C |
| Storage Temperature: | I-4 – 140°F / -20 – 60°C |
| 1-Year Manufacturer’s Warranty |
