Availability: 7 in stock
HDMI 2.0 & HDCP 2.2 Compliant – Supports the latest HDMI standards and protected content.

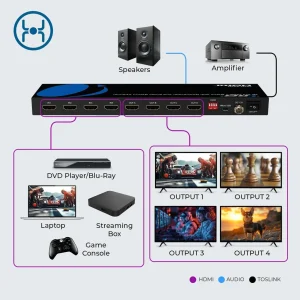

4×4 Matrix Switching – Route any of four HDMI sources to any of four displays independently.
Supports up to 4K@60Hz – Delivers sharp, high-definition visuals across all screens.
18Gbps Video Bandwidth – Ensures uncompressed, high-performance AV signal delivery.
HDR Compatibility – Supports high dynamic range formats for enhanced contrast and color.
Independent Audio Extraction – Optical and Analog audio outputs available for Outputs A and B.
ARC Support on Output A – Enables audio return from compatible TVs to external audio devices via Optical or 3.5mm outputs.

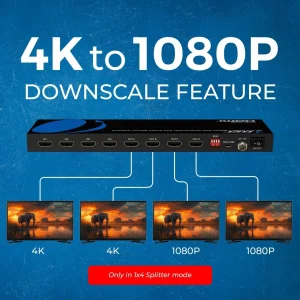

4K to 1080p Downscaling – Downscales in 1×4 splitter mode for use with legacy displays.
Durable, Compact Design – Reliable build with a streamlined form factor for flexible installation.

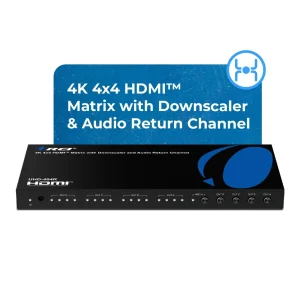

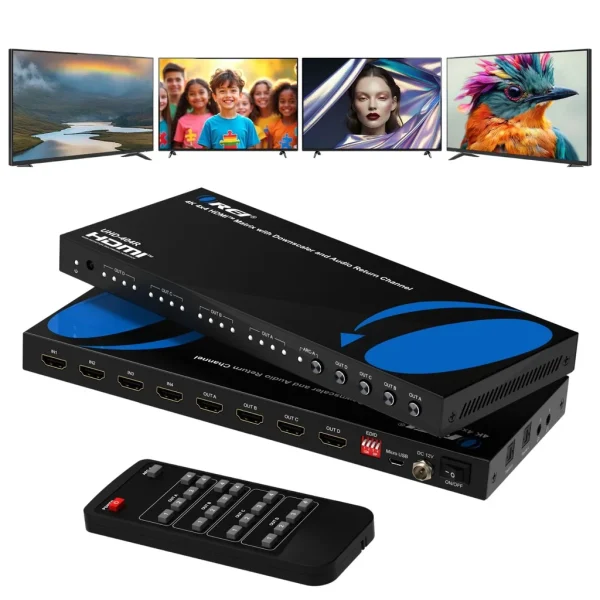

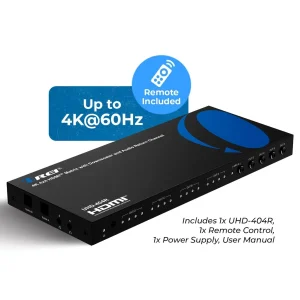

The UHD-404R is a high-performance 4×4 HDMI matrix switch designed to route up to four HDMI source devices to four HDMI displays with seamless switching and signal integrity. Fully compliant with HDMI 2.0 and HDCP 2.2 standards, it supports video resolutions up to 4K@60Hz and features an 18Gbps bandwidth, ensuring vivid, uncompressed image quality and compatibility with HDR content.
For added flexibility, the UHD-404R includes dedicated Optical (SPDIF) and Analog stereo audio outputs for HDMI Outputs A and B, allowing for separate audio extraction to external sound systems. Output A also supports ARC (Audio Return Channel), enabling audio to be sent from ARC-enabled TVs back to an amplifier or soundbar. In 1×4 splitter mode, the unit offers intelligent 4K to 1080p downscaling, ensuring compatibility with legacy displays.
Built for versatility and ease of installation, the UHD-404R is ideal for both commercial AV environments and advanced home entertainment systems requiring multi-screen distribution and independent control.
[shortdes]
[/shortdes]
[tab]
| INPUT: | 4 x HDMI [Type A, 19-pin female] | |
| OUTPUT: | 4 x HDMI [Type A, 19-pin female] | |
| 2 x Optical [S/PDIF] | ||
| 2 x Analog [3.5mm Stereo Mini Jack] |
| 1x UHD-404R |

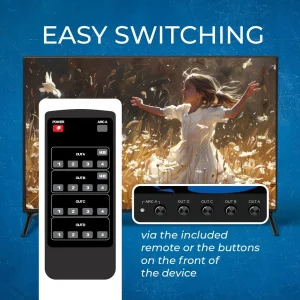

| 1x Remote |
| 1x Power Adapter |
| User Manual |
| HDMI 2.0 / 2.1 | We recommend using high-quality HDMI 2.0 / 2.1 cables under 30 feet for optimum performance |
| 4K@60Hz: | 30 Feet |
| Video Bandwidth: | 18 Gbps |
| Video Resolutions: | 4K@24/30/50/60Hz, 1080p, 720p, 480p |
| Audio Extraction: | 3.5mm |
| ARC / eARC Passthrough: | ✅ |
| EDID Management: | ✅ |
| VRR / ALLM / FVA: | ❌ |
| Dolby Atmos / DTS X Passthrough: | ❌ |
| 4K to 1080p Downscale: | ✅ |
| USB KVM: | ❌ |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
| Power Consumption: | 12W (Max) | |
| Power Supply: | Input:AC 100-240V 50/60Hz | |
| Output: DC 12V/2A (US/EU standards, CE/FCC/UL certified) |

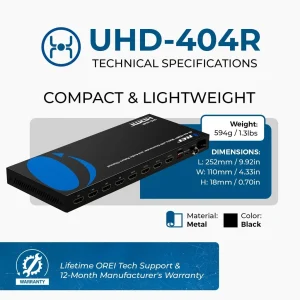

| Length: | 252mm / 9.92in | |
| Width: | 110mm / 4.33in | |
| Height: | 18mm / 0.70in | |
| Weight: | 594g / 1.3lbs |
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 0° ~ 70°C / 32°F ~ 158°F |
| Relative Humidity: | 5 ~ 90% RH (non-condensing) |
| 1-Year Manufacturer’s Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: UHD-404R
