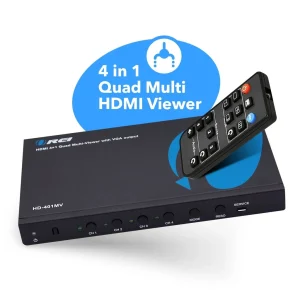

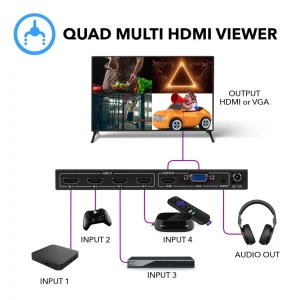

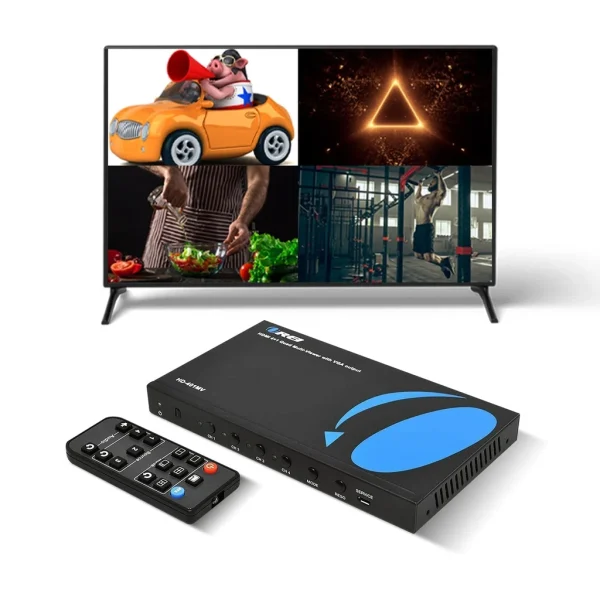

The HD-401MV is a high-performance 4×1 HDMI quad multiviewer that enables simultaneous display of four HDMI input sources on one HDMI screen and one VGA screen. Supporting resolutions up to 1080p@60Hz, it provides sharp, real-time video output with a straightforward plug-and-play setup.

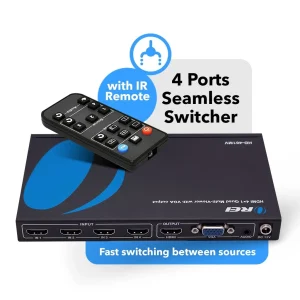

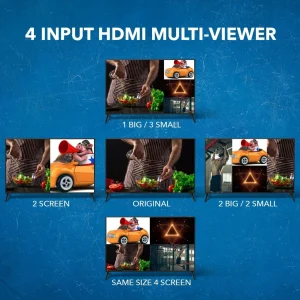

Fully compliant with HDMI 1.4 and HDCP 1.4, the HD-401MV supports multiple multiview modes including 1, 2, and 4-window layouts. It delivers audio pass-through for DTS Digital, Dolby Digital, LPCM, Dolby TrueHD, and Master Audio formats with support for 2-channel output. Control is simple via front panel buttons or the included IR remote, making it ideal for security monitoring, control centers, or media presentations.
[tab]
| Input Ports: | 4x HDMI Type A [19-pin female] |
| 1x SERVICE [Micro USB, Update port] | |
| Output Ports: | 1x HDMI Type A [19-pin female] |
| 1x VGA [VGA-D] | |
| 1x Audio [3.5mm Stereo Mini-jack] | |
| Video Bandwidth: | 4.95Gbps |
| Video Resolution: | 1920×1080P@60Hz |
| Color Space: | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| HDMI Audio Formats: | LPCM2.0, 44.1KHz, 48KHz |
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Power Supply: | Input: AC100~240V 50/60Hz, Output: DC12V/1A,(US/EU standards, CE/FCC/UL certified) |
| Power Consumption: | 5.28W (max) |
| Downscale: | No |
| RS-232: | No |
| IR Remote Control: | Yes |
| Fast Seamless Switching: | No |
| Multiview / PIP Support: | No |
| EDID Management: | No |
| Audio Extraction: | 3.5mm / Analog |
| HDMI Support: | 1.4 |
| HDCP Support: | 1.4 |
| OSD Menu Navigation: | No |
| CEC: | Pass through |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (non-condensing) |

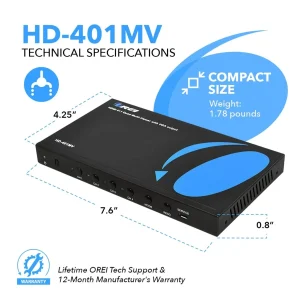

| Height: | 21 mm |
| Width: | 185 mm |
| Depth: | 111.8 mm |
| Weight: | 500g |
| Safety and Emission: | CE | FCC | RoHS |
| 1 × HD-401MV HDMI Quad multiviewer |
| 1 × Power Adapter |
| 1 × Remote Control |
| 2 × Mounting Ears |
| 1 × User Manual |
| 1 – Year Manufacturer’s Warranty |
