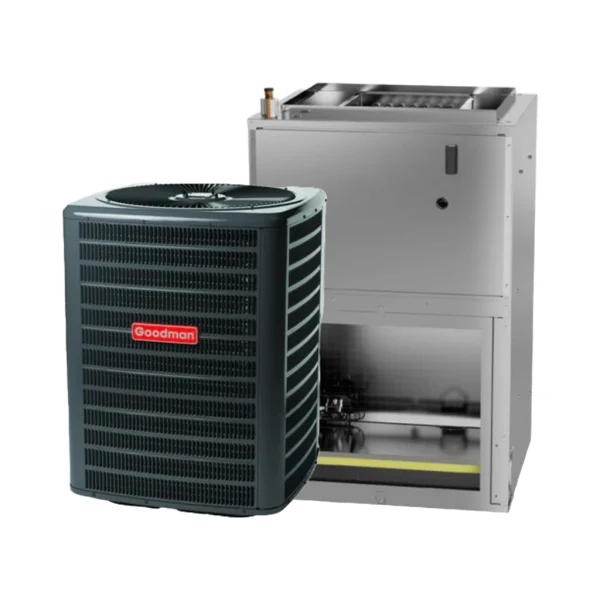

Goodman 3 Ton Wall Hung HP System 14.3 SEER2 10KW R-32, GLZS4BA3610, AWST36SU1310

Goodman 3.0 Ton 15.2 SEER2 Single Stage Split Heat Pump GLZS4BA3610 Specification Table

Brand: Goodman
Model #: GLZS4BA3610
SEER2/EER2: 15.2
Refrigerant: R-32
Tonnage: 3.0 Ton
Voltage Requirements: 208V To 230V
Coverage Area (Sq. Ft): 1800
AHRI No: GLZS4BA3610
Burner Stages: Single Stage
Furnace BTU: 36,000 BTU’s
Dimensions – (Shipping Unit Width): 35 -1/2 in
Dimensions – (Shipping Unit Height): 35 -3/4 in
Dimensions – (Shipping Unit Depth): 35 -1/2 in
Weight – (Shipping Unit): 211.000 lb
Refrigerant Pre-Charged Line Length: 15 ft
Power Frequency: 60 Hz
Motor Speed Type: 0
Min. Circuit Amps: 21.5 A
Min Voltage: 0
Max Voltage: 0
Max Overcurrent Protection: 35 A
Valve Size Suction (O.D.): 7/8 in
Valve Size Liquid (O.D.): 0
Energy Source: 0
Expansion Device: TXV
Decibels (dBA): 75 dBA
Compressor Type: Scroll
Compressor Stages: Single Stage
Heating Capacity – (Nominal): 36000 Btu/H
Cooling Capacity – (Nominal): 0

Goodman AWST36LU1310 3 Ton Wall-Mounted Air Handler ECM TXV Specification Table

Brand: Goodman
Model #: AWST36LU1310
Refrigerant: R-32
Tonnage: 3.0 Ton
Total Indoor Unit(s) BTU: 36000
Voltage Requirements: 208V To 230V
Coverage Area (Sq. Ft): 1500
AHRI No: AWST36LU1310
Cabinet Width: 24.5″
Furnace BTU: 36,000 BTU’s
Dimensions – (Shipping Unit Width): 24 in
Dimensions – (Shipping Unit Height): 36 in
Dimensions – (Shipping Unit Depth): 21 in
Weight – (Shipping Unit): 109 lb
Refrigerant Pre-Charged Line Length: 0
Power Frequency: 60 Hz
Motor Speed Type: Multi Speed ECM
Min. Circuit Amps: 48.1/54.8 A
Min Voltage: 197 V
Max Voltage: 253 V
Max Overcurrent Protection: 50/60 A
Valve Size Suction (O.D.): 0
Valve Size Liquid (O.D.): 0
Energy Source: 0
Expansion Device: TXV
Decibels (dBA): 0
Compressor Type: 0
Compressor Stages: 0
Heating Capacity – (Nominal): 0
Cooling Capacity – (Nominal): 36000 Btu/H

Model: GLZS4BA3610, AWST36SU1310

Description:

• Goodman Wall-Hung Heat Pump System

  Goodman GLZS Heat Pump and AMST Air Handler

  This powerful heat pump system is designed to provide reliable heating and cooling for your home. Featuring aGLZSoutdoor unit and aAMSTwall-mounted indoor unit, this system offers a combination of efficiency, durability, and quiet operation.

  Key Features:

  • Efficient Performance:SEER2 rating of 14.3 for energy savings.
  • Durable Construction:Heavy-gauge steel cabinet and steel louver coil guard.
  • Weather Resistant:Meets 2023 Florida Building Code requirements.
  • Easy Maintenance:Removable grille-style top design for outdoor unit and tool-less filter access for indoor unit.
  • All-Aluminum Evaporator Coil:Optimized for R-32 refrigerant.
  • Quiet Operation:Direct-drive, resilient-mount, 9-speed ECM motor in the indoor unit.
  • Flexible Heating Options:Available with various heating element capacities.

  Specifications:

  Outdoor Unit:
