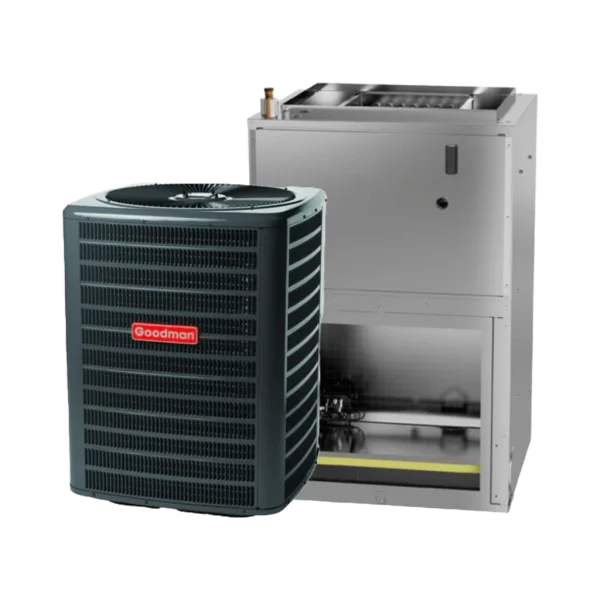

Goodman 2.0 Ton Wall Hung HP System 14.3 SEER2 8KW R-32 , GLZS4BA2410, AWST24SU1305

Goodman 2.0 Ton R32 Split Heat Pump GLZS4BA2410 High-Efficiency HVAC Specification Table

Brand: Goodman
Model #: GLZS4BA2410
SEER2/EER2: 15.2
Refrigerant: R-32
Tonnage: 2.0 Ton
Voltage Requirements: 208V To 230V
Coverage Area (Sq. Ft): 1200
AHRI No: GLZS4BA2410
Burner Stages: Single Stage
Furnace BTU: 24,000 BTU’s
Dimensions – (Shipping Unit Width): 29 in
Dimensions – (Shipping Unit Height): 32 -1/2 in
Dimensions – (Shipping Unit Depth): 29 in
Weight – (Shipping Unit): 165.000 lb
Refrigerant Pre-Charged Line Length: 15 ft
Power Frequency: 60 Hz
Motor Speed Type: 0
Min. Circuit Amps: 11.2 A
Min Voltage: 0
Max Voltage: 0
Max Overcurrent Protection: 15 A
Valve Size Suction (O.D.): 3/4 in
Valve Size Liquid (O.D.): 0
Energy Source: 0
Expansion Device: TXV
Decibels (dBA): 74 dBA
Compressor Type: Rotary
Compressor Stages: Single Stage
Heating Capacity – (Nominal): 24000 Btu/H
Cooling Capacity – (Nominal): 0

2.0 Ton Goodman Wall Mounted Air Handler ECM Motor TXV Expansion, AWST24SU1305 Specification Table

Brand: Goodman
Model #: AWST24SU1305
Refrigerant: R-32
Tonnage: 2.0 Ton
Total Indoor Unit(s) BTU: 24000
Voltage Requirements: 208V To 230V
Coverage Area (Sq. Ft): 1200
AHRI No: AWST24SU1305
Cabinet Width: 21″
Furnace BTU: 24,000 BTU’s
Dimensions – (Shipping Unit Width): 23 .1/4 in
Dimensions – (Shipping Unit Height): 36 in
Dimensions – (Shipping Unit Depth): 16.1/8 in
Weight – (Shipping Unit): 84.000 lb
Refrigerant Pre-Charged Line Length: 0
Power Frequency: 60 Hz
Motor Speed Type: Multi Speed ECM
Min. Circuit Amps: 24.9/28.3 A
Min Voltage: 197 V
Max Voltage: 253 V
Max Overcurrent Protection: 25/30 A
Valve Size Suction (O.D.): 0
Valve Size Liquid (O.D.): 0
Energy Source: Electric
Expansion Device: TXV
Decibels (dBA): 0
Compressor Type: 0
Compressor Stages: 0
Heating Capacity – (Nominal): 0
Cooling Capacity – (Nominal): 24000 Btu/H

Model: GLZS4BA2410, AWST24SU1305

Goodman GLZS Heat Pump and AMST Air Handler

This powerful heat pump system is designed to provide reliable heating and cooling for your home. Featuring aGLZSoutdoor unit and aAMSTwall-mounted indoor unit, this system offers a combination of efficiency, durability, and quiet operation.

Key Features:

• Efficient Performance:SEER2 rating of 14.3 for energy savings.
• Durable Construction:Heavy-gauge steel cabinet and steel louver coil guard.
• Weather Resistant:Meets 2023 Florida Building Code requirements.
• Easy Maintenance:Removable grille-style top design for outdoor unit and tool-less filter access for indoor unit.
• All-Aluminum Evaporator Coil:Optimized for R-32 refrigerant.
• Quiet Operation:Direct-drive, resilient-mount, 9-speed ECM motor in the indoor unit.
• Flexible Heating Options:Available with various heating element capacities.

Specifications:

• Outdoor Unit:
