Goodman 1.5 Ton Wall Hung HP System 14.3 SEER2 5KW R-32, GLZS4BA1810, AWST18SU1305

Goodman 1.5 Ton 15.2 SEER2 R-32 Split Heat Pump GLZS4BA1810 Specification Table

Brand: Goodman
Model #: GLZS4BA1810
SEER2/EER2: 15.2
Refrigerant: R-32
Tonnage: 1.5 Ton
Voltage Requirements: 208V To 230V
Coverage Area (Sq. Ft): 900
AHRI No: GLZS4BA1810
Burner Stages: Single Stage
Furnace BTU: 18,000 BTU’s
Dimensions – (Shipping Unit Width): 29 in
Dimensions – (Shipping Unit Height): 32 -1/2 in
Dimensions – (Shipping Unit Depth): 29 in
Weight – (Shipping Unit): 165.000 lbs
Refrigerant Pre-Charged Line Length: 15 ft
Power Frequency: 60 Hz
Motor Speed Type: 0
Min. Circuit Amps: 11.2 A
Min Voltage: 0
Max Voltage: 0
Max Overcurrent Protection: 15 A
Valve Size Suction (O.D.): 3/4 in
Valve Size Liquid (O.D.): 0
Energy Source: 0
Expansion Device: TXV
Decibels (dBA): 74 dBA
Compressor Type: Rotary
Compressor Stages: Single Stage
Heating Capacity – (Nominal): 18000 Btu/H
Cooling Capacity – (Nominal): 0

Goodman 1.5 Ton Wall-Mount Air Handler AWST18SU1305 ECM TXV Specification Table

Brand: Goodman
Model #: AWST18SU1305
Refrigerant: R-32
Tonnage: 1.5 Ton
Total Indoor Unit(s) BTU: 18000
Voltage Requirements: 208V To 230V
Coverage Area (Sq. Ft): 900
Indoor Mount Type: Wall Mount
AHRI No: AWST18SU1305
Cabinet Width: 21″
Furnace BTU: 18,000 BTU’s
Dimensions – (Shipping Unit Width): 21 .1/4 in
Dimensions – (Shipping Unit Height): 36 in
Dimensions – (Shipping Unit Depth): 16.1/8
Weight – (Shipping Unit): 84.000 lb
Refrigerant Pre-Charged Line Length: 0
Power Frequency: 60 Hz
Motor Speed Type: Multi Speed ECM
Min. Circuit Amps: 24.9/28.3 A
Min Voltage: 197 V
Max Voltage: 253 V
Max Overcurrent Protection: 25/30 A
Valve Size Suction (O.D.): 0
Valve Size Liquid (O.D.): 0
Energy Source: Electric
Expansion Device: TXV
Decibels (dBA): 0
Compressor Type: 0
Compressor Stages: 0
Heating Capacity – (Nominal): 0
Cooling Capacity – (Nominal): 18000 Btu/H

Model: GLZS4BA1810, AWST18SU1305

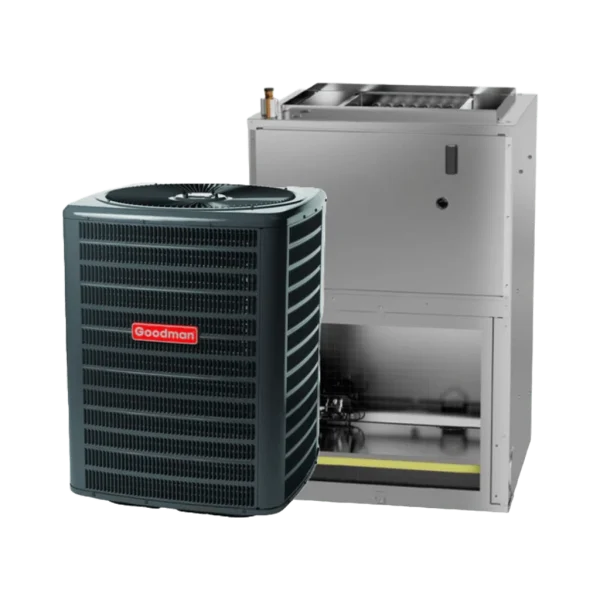

Goodman Wall-Hung Heat Pump System

Goodman GLZS Heat Pump and AMST Air Handler

This powerful heat pump system is designed to provide reliable heating and cooling for your home. Featuring aGLZSoutdoor unit and aAMSTwall-mounted indoor unit, this system offers a combination of efficiency, durability, and quiet operation.

Key Features:

• Efficient Performance:SEER2 rating of 14.3 for energy savings.
• Durable Construction:Heavy-gauge steel cabinet and steel louver coil guard.
• Weather Resistant:Meets 2023 Florida Building Code requirements.
• Easy Maintenance:Removable grille-style top design for outdoor unit and tool-less filter access for indoor unit.
• All-Aluminum Evaporator Coil:Optimized for R-32 refrigerant.
• Quiet Operation:Direct-drive, resilient-mount, 9-speed ECM motor in the indoor unit.
• Flexible Heating Options:Available with various heating element capacities.

Specifications:

Outdoor Unit:

• • Refrigerant Type: R-32
  • Unit Height: 36 in
  • Unit Width: 20.2307692307692 in
  • Cooling Capacity Nominal: 18000 Btu/H
  • Max Overcurrent Protection: 25/30 A
  • Power Phase: 1 Ph
  • Power Voltage: 208/230 V
  • Motor Speed Type: Multi Speed ECM
  • Unit Weight: 160 lb
  • Tonnage: 1.5
  • Unit Depth: 13.125 in

Indoor Unit:

• • Refrigerant Type: R-32
  • Unit Height: 36 in
  • Unit Width: 20.2307692307692 in
  • Cooling Capacity Nominal: 18000 Btu/H
  • Max Overcurrent Protection: 25/30 A
  • Power Phase: 1 Ph
  • Power Voltage: 208/230 V
  • Motor Speed Type: Multi Speed ECM
  • Unit Weight: 84 lb
  • Tonnage: 1.5
  • Unit Depth: 13.125 in

Warranty Information:

Goodman’s standard 10-year parts warranty when registered online through the manufacturer
