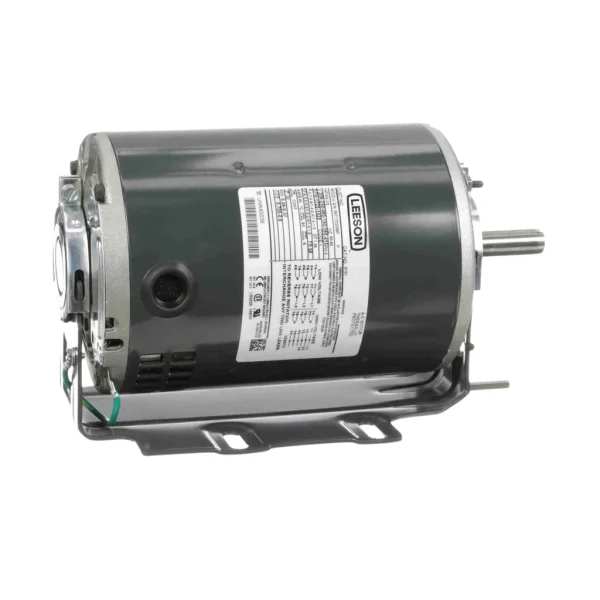

G101 056T17D2099 Leeson 3/4 HP 1725 RPM 3PH 208-230/460V 56 Blower Motor

180-Day Warranty!

Part Number: 056T17D2099
Catalog Number: G101
Model: E25J56T17D2099F
Location: 3D2
Part Type: Fan / Blower Motor
Brand: Leeson

Genuine Leeson industrial fan/blower motor. This motor has been tested and is working properly. Removed from previously installed equipment and may show normal cosmetic wear from prior use. Please review photos for exact condition.

Specifications:

• 3/4 HP @ 60 Hz
• 1/2 HP @ 50 Hz
• 1725 RPM @ 60 Hz
• 1425 RPM @ 50 Hz
• 3 Phase
• 208-230/460V @ 60 Hz
• 190/380-415V @ 50 Hz
• NEMA 56 Frame
• Open Drip Proof (ODP)
• Continuous Duty
• Service Factor: 1.25
• 5/8″ keyed shaft
• Shaft length: approximately 1-7/8″
• Reversible CW/CCW rotation
• Ball bearings
• Automatic thermal protection
• IP22
• Class B insulation

Those specifications agree with the current manufacturer/supplier data for 056T17D2099.

Includes: Motor shown in photos only.

Please verify part number, horsepower, voltage, phase, frame size, shaft dimensions and application compatibility before ordering.
