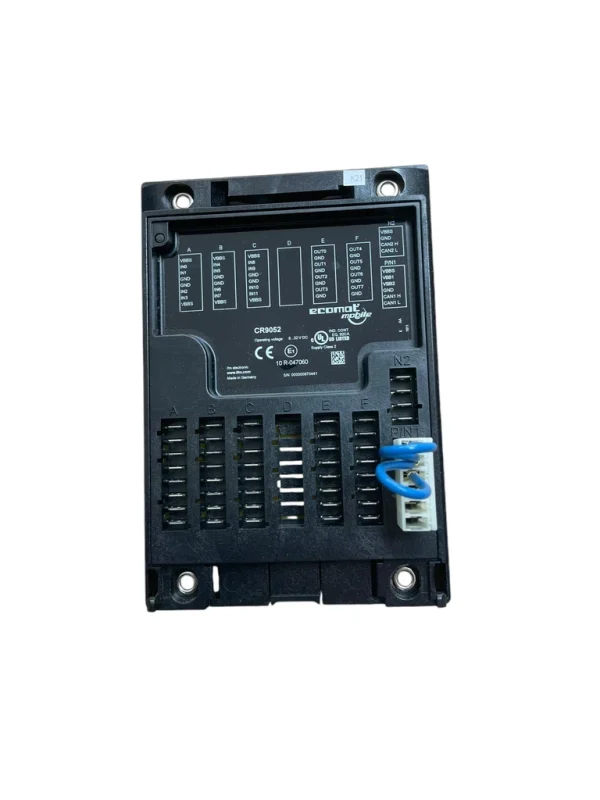

Ecomat Mobile CR9052 programmable controller for mobile machines

180-Day Warranty!

Part Type: Programmable Controller

Part Number: CR9052

Notice: Part was pulled from a tested and working unit in good condition.

With many multifunctional configurable input and output channels
High-performance CAN interfaces for various communication tasks
For use in driver’s cabin and control cabinet
Freely programmable to IEC 61131-3 with CODESYS 2.3

Operating voltage[V]    8…32 DC
Inputs / outputs
Total number of inputs and outputs    24
Number of inputs and outputs    Number of digital inputs: 12; Number of analog inputs: 4; Number of frequency inputs: 4; Number of resistor inputs: 4; Number of digital outputs: 12
Inputs
Number of frequency inputs    4
Number of resistor inputs    4
Number of digital inputs    12
Number of analog inputs    4
Analog input (current)[mA]    0…20
Analog input (voltage)[V]    0…32
Outputs
Number of digital outputs    12
Number of PWM outputs    10
Number of PWM-I outputs    2
Software / programming
Parameter setting options    input/output functions
PLC function to IEC 61131-3    yes
Interfaces
Number of CAN interfaces    2
Tests / approvals
MTTF[years]    111
Mechanical data
Weight[g]    404.95
Dimensions[mm]    163 x 112 x 25.5
