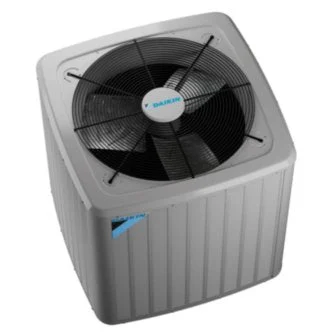

DZ14XA1204|14 IEER 10 TON 2 STG HP| 3 Phase 460V | Daikin

DZ14XA1204|14 IEER 10 TON 2 STG HP| 3 Phase 460V | Daikin Specification Table

Brand: Daikin
Model #: DZ14XA1204

• Product Benefits:
  • Two-Stage energy efficient compressor
  • High capacity steel cased bi -flow heat pump filter drier
  • Liquid refrigerant return protection.
  • Reliable, Time-initiated, temperature terminated defrost control.
  • Brass liquid and suction line service valves mounted at a 90 degree angle with sweat connetions and sercice ports.
  • High-Efficiency copper tube/aluminum fin coil
  • Complies with ASHRAE 90.1-2019
  • AHRI Certified
  • ETL Listed
• Cabinet Features:
  • Innovative sound control top design
  • Steel Louver coil guard protects the coil from damae and adds strength to unit
  • Heavy-gauge galvanized steel cabinet
  • Attractive nickel gray powder-paint finish
• • Refrigerant Type: R-410A
  • Unit Depth: 35.5 in
  • Unit Height: 41.5 in
  • Unit Width: 35.5 in
  • Cooling Capacity Nominal: 115000 Btu/H
  • Max Overcurrent Protection: 80 A
  • Power Phase: 3 Ph
  • Power Voltage: 460 V
  • Compressor Stages: Two Stage
  • Compressor Type: Scroll
