DZ14XA0903|14 IEER 7.5 TON 2 STG HP| 3 Phase 208/230 V | Specification Table
Brand: Daikin
Model #: DZ14XA0903

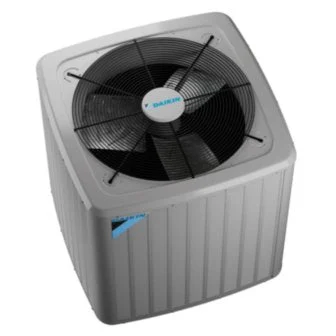

DZ14XA0903 14 IEER 7.5 TON 2 STG HP 3 Phase 208/230 V Light Commercial Heat Pump
Two-Stage energy efficient compressor High capacity steel cased bi -flow heat pump filter drierLiquid refrigerant return protection. Reliable, Time-initiated, temperature terminated defrost control.Brass liquid and suction line service valves mounted at a 90 degree angle with sweat connetions and sercice ports. High-Efficiency copper tube/aluminum fin coil Complies with ASHRAE 90.1-2019AHRI Certified
ETL Listed
- Cabinet Features: Innovative sound control top design Steel Louver coil guard protects the coil from damae and adds strength to unit Heavy-gauge galvanized steel cabinet Attractive nickel gray powder-paint finish
- Refrigerant Type: R-410A
- Unit Depth: 35.5 in
- Unit Height: 41.5 in
- Unit Width: 35.5 in
- Cooling Capacity Nominal: 93000 Btu/H
- Max Overcurrent Protection: 60 A
- Power Phase: 3 Ph
- Power Voltage: 208/230 V
- Compressor Stages: Two Stage
- Compressor Type: Scroll
