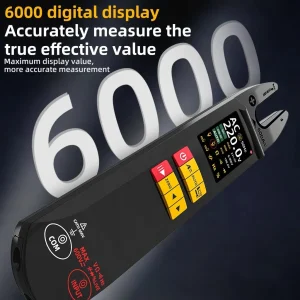

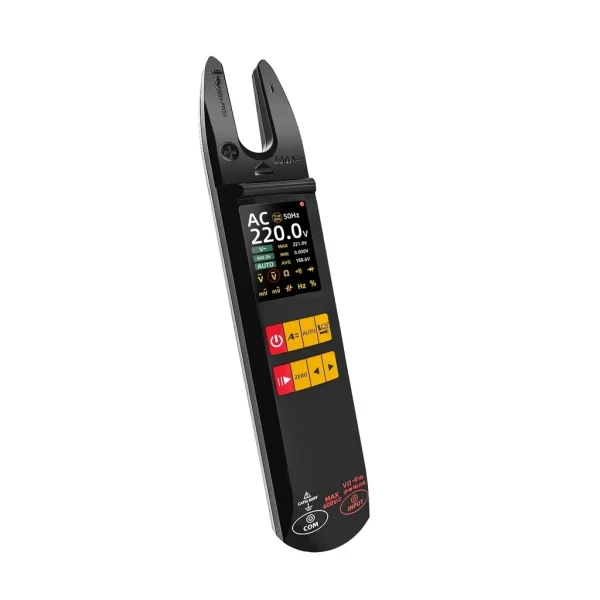

BSIDE U5 True RMS Digital Clamp Multimeter with TFT Screen & NCV Detection

Specifications:

DC Voltage Measurement: Range: 60.00mV – 610V | Resolution: 0.01mV – 1V | Accuracy: ± (0.8%-1%)

AC Voltage Measurement: Range: 60.00mV – 610V | Resolution: 0.01mV – 1V | Accuracy: ± (1.0%-1.2%)

DC Current Measurement: Range: 1.0 – 600.0A | Resolution: 0.1A | Accuracy: ±2.5%

AC Current Measurement: Range: 1 – 100.0A | Resolution: 0.1A | Accuracy: ±2.5%

Resistance Measurement: Range: 0.1Ω – 60.00MΩ | Resolution: 0.1Ω – 0.01MΩ | Accuracy: ± (1.2%-2%)

Capacitance Measurement: Range: 0.01uF – 60mF | Resolution: 0.1uF – 0.01mF | Accuracy: ± (3.5%-4.5%)

Frequency Measurement: Range: 900mVrms to 20Vrms | Resolution: 0.1Hz | Accuracy: ±4%

Duty Cycle Measurement: Range: 10.0% – 95% | Resolution: 0.1% | Accuracy: ±3%

Non-contact Voltage Sensing: Adjustable sensitivity (low, mid, high)

Features:

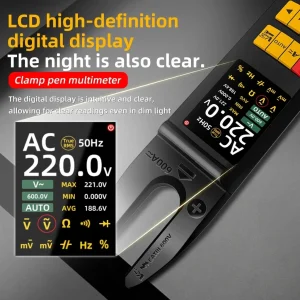

1. Advanced TFT Display: The vibrant 1.8-inch TFT color display delivers enhanced readability, allowing users to effortlessly check measurements even in dim environments.

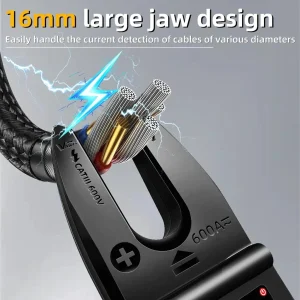

2. Innovative U-Shaped Clamp Design: The large 16mm jaw accommodates a variety of cable sizes, making current measurement in tight spaces straightforward and efficient.

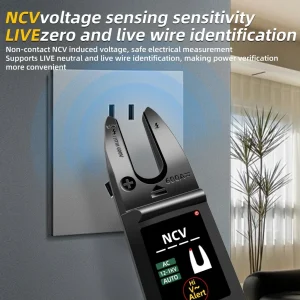

3. Non-Contact Voltage Detection (NCV): Safely identify voltage levels with adjustable sensitivity, ensuring quick and hassle-free electrical inspections. LIVE wire detection provides accurate verification of active circuits.

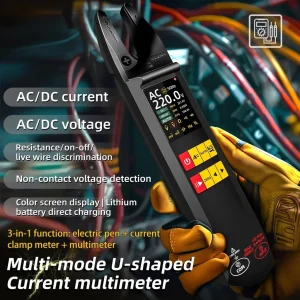

4. Multi-functional Integration: Combines electric pen, current clamp meter, and multimeter capabilities into a single tool, covering a wide range of electrical applications effortlessly.

5. Rechargeable Lithium Battery: Equipped with direct lithium battery charging for consistent power supply and extended operational runtime without frequent replacements.

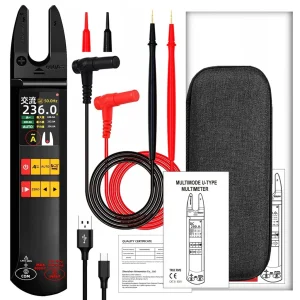

Package Included:

1 x BSIDE U5 Clamp Multimeter

2 x Test Leads

1 x USB Type-C Charging Cable

1 x Storage Bag

1 x User Manual
