Availability: 8 in stock
Features:

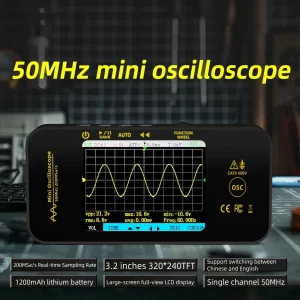

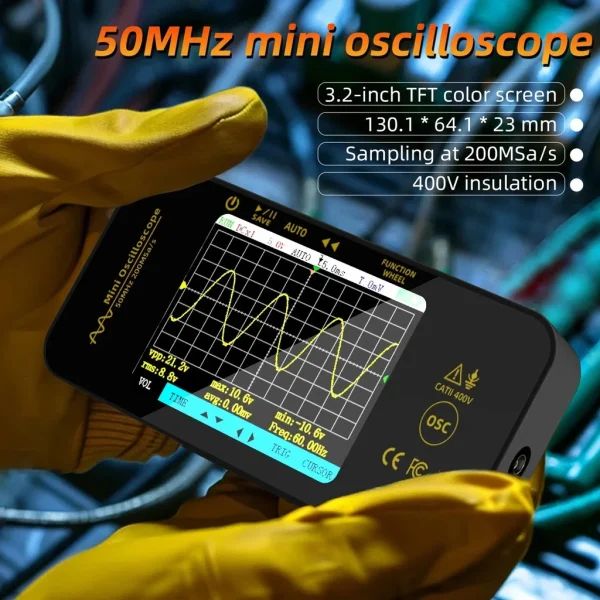

Handheld oscilloscope

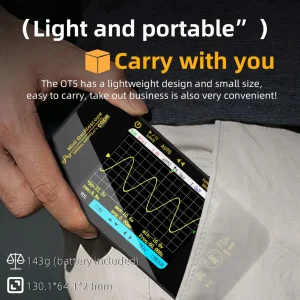

Portable graph scope tester
Rechargeable color display oscilloscope
Tested data can be saved and exported to your computer
Full-viewing oscilloscope with low battery indication
Specifications:
Display: 3.2 inch TFT
Bandwidth: 50MHz
Real-time sample rate:200MSa/s
Input Impedance: 1MΩ,@16pf
Maximum input voltage: X1: 40V; X10: 400V (DC+AC peak)
Horizontal SEC range: 100ns/div -20s/div
Vertical sensitivity: 20mV/div -10V/div

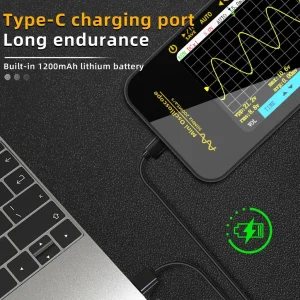

Power: 1200mAh Rechargeable Li-ion battery
Size: 129.2 x 63 x 22.3 mm
Weight: 138g
Package Includes:
1 x Handheld Oscilloscope
1 x Oscilloscope Probe
1 x BNC to Double-Headed Alligator Clip Test Leads
1 x Carrying Case
1 x Charging Cable
4 x Marker Rings
1 x Adjustment Tool
1 x User Manual
