BSIDE OT3 Mini Handheld Oscilloscope 10MHz 48MSa/s with Probe

Display Technical Indicators:

– Display Screen: 3.2″ TFT color screen

– Resolution: 320 x 240 pixels

– Data Retention: Yes

– Screen Backlight: Yes

– Low Battery Warning: Yes

– Automatic Shutdown: Yes

– Pause: Yes

Mechanical Technical Index:

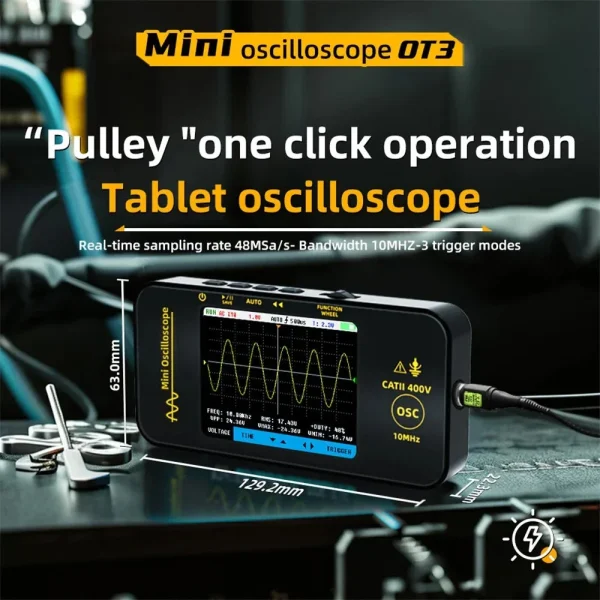

– Dimension: 129.2 x 63.0 x 22.3 mm

– Weight: 166g (battery included)

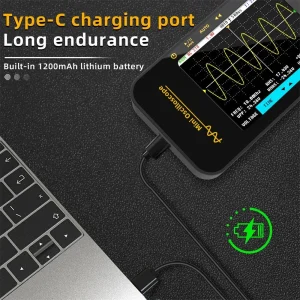

– Battery Type: 1200mAh Lithium battery

Environmental Technical Index:

– Working Environment:

  – Temperature: 0 ~ 40℃

  – Humidity: ≤75%

– Storage Environment:

  – Temperature: -20 ~ 60℃

  – Humidity: <80%

Oscilloscope Technical Indicators:

– Bandwidth: 10MHz

– Sampling Mode: Real-time sampling

– Real-time Sampling Rate: 48MSa/s

– Number of Channels: 1 single channel

– Input Coupling: DC, AC

– Input Impedance: 1MΩ, @16pF

– Probe Attenuation: X1, X10

– Maximum Input Voltage:

  – X1 Range: ±40V

  – X10 Range: ±400V (DC + AC peak value)

– Sampling Rate Range: 1.5Sa/s – 48MSa/s

– Waveform Interpolation: (sinx)/x

– Sweep Range: 100ns/Div to 20s/Div

– Time Base Accuracy: 20ppm

– Storage Depth: Up to 128kB

– Sensitivity: 20mV/Div – 10V/Div

– Displacement Range: 4 cells (positive and negative)

– Analog Bandwidth: 10MHz

– Low-frequency Response: Greater than 10Hz

– Rise Time: Less than 100ns

– DC Gain Accuracy: ±3%

– Trigger Mode: Automatic, normal, single

– Trigger Edge: Rising edge, falling edge

Features:

1. High-Resolution Display:

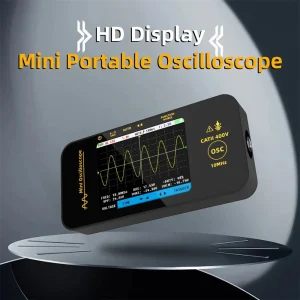

The BSIDE Mini OT3 Oscilloscope features a 3.2″ TFT color screen with a resolution of 320 x 240 pixels, providing clear and detailed visuals for precise measurements and analysis.

2. Compact and Lightweight:

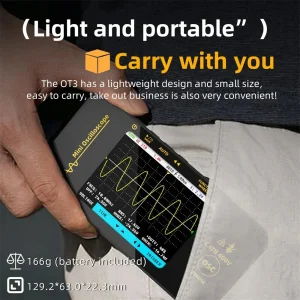

With dimensions of 129.2 x 63.0 x 22.3 mm and a weight of just 166g (battery included), this oscilloscope is highly portable and convenient for fieldwork and on-the-go diagnostics.

3. Versatile Input Options:

The device supports both DC and AC input coupling with a maximum input voltage of up to ±400V, catering to a wide range of testing scenarios and ensuring compatibility with various signals.

4. Real-Time Sampling:

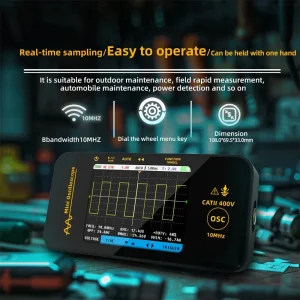

The oscilloscope offers a real-time sampling rate of 48MSa/s, enabling accurate and fast signal capture for dynamic and transient events.

5. User-Friendly Features:

Equipped with functionalities such as automatic shutdown, low battery warning, screen backlight, and data retention, the oscilloscope ensures ease of use and efficient power management.

Package Included:

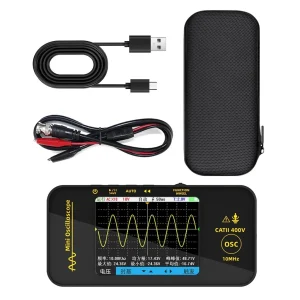

 1 x BSIDE Mini OT3 Oscilloscope Set
