HDMI 2.1 and HDCP 2.3 Compliant – Fully compatible with the latest high-resolution video and protected content standards.
Resolutions up to 8K@60Hz and 4K@120Hz – Enables ultra-HD video output for modern displays.
48Gbps Video Bandwidth – Ensures high-speed signal transmission for both video and audio.
HDR10+, Dolby Vision, and HLG Support – Delivers enhanced contrast and color depth for vivid image quality.
Supports VRR, ALLM, QMS, QFT, and SBTM – Ideal for gaming with smoother motion, reduced latency, and dynamic refresh rate support.
8K to 4K and 8K/4K to 1080p Downscaling – Adapts output resolution to match connected displays for optimal performance.
Automatic HDR to SDR Conversion – Ensures compatibility with non-HDR displays on both outputs.
Advanced Audio Format Support – Passes LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master, and DTS:X via HDMI.

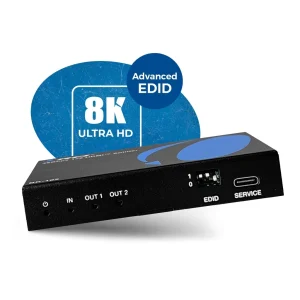

Advanced EDID Management – Allows customized configuration to match source and display requirements.
Compact, Plug-and-Play Design – Simple setup with no software required, ideal for home or commercial use.

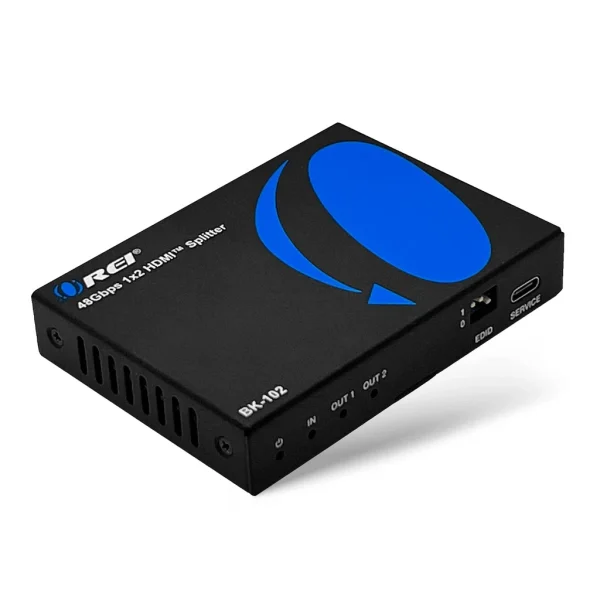

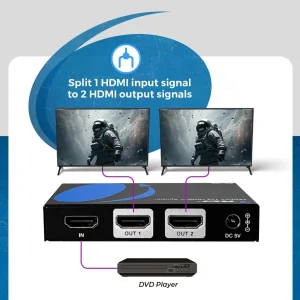

The BK-102 is an advanced 1×2 HDMI splitter designed to duplicate a single HDMI input across two displays simultaneously. Compliant with HDMI 2.1 and HDCP 2.3 standards, it supports resolutions up to 8K@60Hz, 4K@120Hz and 1080p@240Hz with a maximum video bandwidth of 48Gbps for ultra-high-definition playback.
The BK-102 offers full support for modern video technologies, including HDR, HDR10+, Dolby Vision, and HLG, as well as next-generation gaming features like VRR, ALLM, QMS, QFT, and SBTM. It features intelligent downscaling from 8K to 4K and 8K/4K to 1080p and automatic HDR to SDR conversion on both outputs, ensuring optimal compatibility with a variety of displays.
With support for LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master, and DTS:X audio formats, along with advanced EDID management, the BK-102 delivers a complete and flexible AV distribution solution. Its compact, plug-and-play design makes it ideal for both home entertainment and commercial applications.
[shortdes]
[tab]
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 2 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1× SERVICE [USB-C, Update port] |

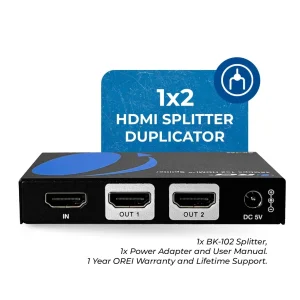

| 1x BK-102 HDMI Splitter |
| 1x Power Adapter |
| User Manual |
| HDMI 2.1: | We recommend using high quality HDMI 2.1 cables under 30 feet for optimum performance |
| 8K@60Hz: | 6.6 Feet |
| 4K@60Hz: | 26 Feet |
| Video Bandwidth: | 48Gbps FRL & 18 Gbps TMDS |
| Video Resolutions: | Up to 8K@60Hz 4:2:0 or 4K@120Hz 4:4:4, 2K@120Hz, 2K@60Hz |
| EDID Management: | Yes |
| Video Downscaling: | Yes |
| Audio Extraction: | Yes |
| CEC: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes / Yes / Yes |
| MST Support (Extended Display): | No |
| HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Power Consumption: | 4.3W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/2A |

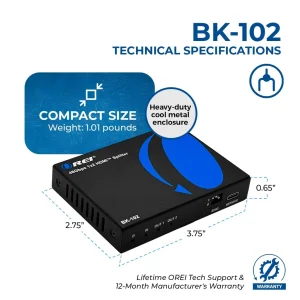

| Length: | 95mm / 3.74in | |
| Width: | 68mm / 2.68in | |
| Height: | 18mm / 0.71in | |
| Weight: | 177g / 6.24oz |
| Color: | Black |
| Housing: | Metal Enclosure |
| Operation Temperature: | -10°C ~ 50°C / 14°F ~ 122°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (non-condensing) |
| 1-Year Manufacturer’s Warranty |
