Availability: 10 in stock
Brand: MR COOL
Model #: MVP-60-HP-MUAH-230A00-O
Refrigerant: R-454B
Tonnage: 5.0 Ton
Coverage Area (Sq. Ft): 2400
MRCOOL VersaPro Model : MVP-60-HP-MUAH-230A00-O

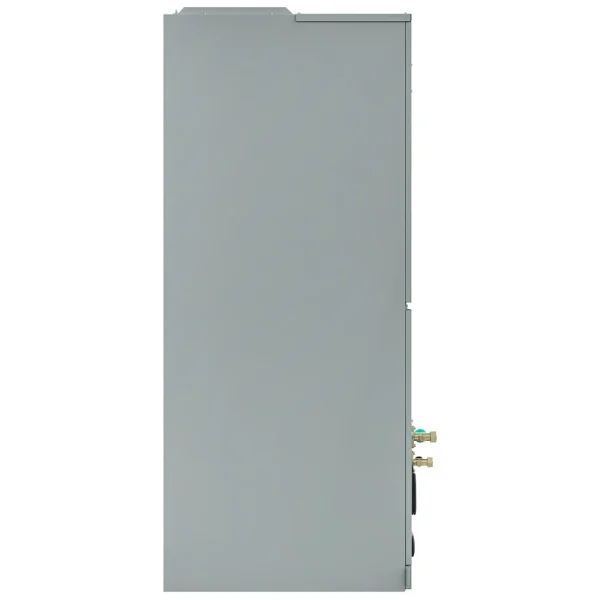

MRCOOL VersaPro 5 Ton Central Ducted Air Handler – Reliable, Energy-Efficient Comfort
TheMRCOOL VersaPro 5 Ton Central Ducted Air Handlerdeliversyear-round heating and coolingfor spaces up to2,500 sq. ft.With aSEER2 rating of 16, this unit ensuresenergy-efficient climate controlwhile keeping operating costs low.
Built fordurability, it features apainted galvanized steel constructionand aself-diagnostics panelfor quick issue detection and hassle-free maintenance. Itsflexible installation options—includingupflow, downflow, and horizontal configurations—allow it to adapt to various layouts.
Designed witheco-friendliness in mind, theVersaPro Air HandlerusesR-454B refrigerantto reduce environmental impact. Anoptional heat kitis available for extra warmth in colder months.
Forprecise temperature control, the includedMRCOOL Smart ThermostatandSmartHVAC app compatibilityprovideremote access and effortless climate management. It is fully compatible with theMRCOOL Central Ducted Hyper Heat Condenserforoptimal performance.
Backed by a10-year warranty, theVersaPro® 5 Ton Air Handleris along-lasting, energy-efficient solutionfor enhancinghome comfort in every season.
|
CFM |
1807.00/1583.33/1359.67/1136.00 |
|
TONNAGE |
5 |
|
COOLING CAPACITY (BTU) |
54000 |
|
HEATING CAPACITY (BTU) |
54000 |
|
VOLTAGE (V) |
115/208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
14.5/11.0 |
|
COLOR |
gray |
|
DECIBEL RATING LOW (DBA) |
34.5 |
|
DECIBEL RATING HIGH (DBA) |
56 |
|
NUMBER OF SPEEDS |
4 |
|
MAX LINESET LENGTH (FT) |
246 ft |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
FILTER TYPE |
Replaceable |
|
FILTER SIZE |
23x20x1 |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
10kW/15kW/20kW |
|
ADJUSTABLE THERMOSTAT |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
ETL CERTIFIED |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE COMPRESSOR WARRANTY |
10 Years |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
NET DEPTH (IN) |
24.49 |
|
NET HEIGHT (IN) |
52.99 |
|
NET WIDTH (IN) |
21.02 |
|
NET WEIGHT (LBS) |
162.92 |
|
GROSS DEPTH (IN) |
26.77 |
|
GROSS HEIGHT (IN) |
56.5 |
|
GROSS WIDTH (IN) |
27.95 |
|
GROSS WEIGHT (LBS) |
190.92 |
