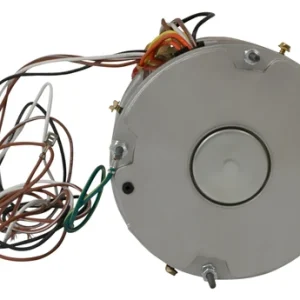

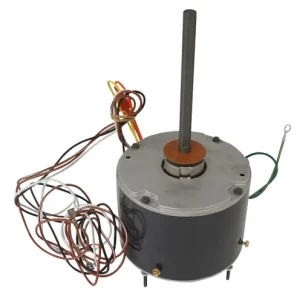

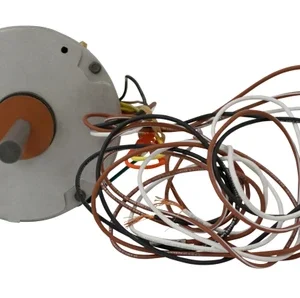

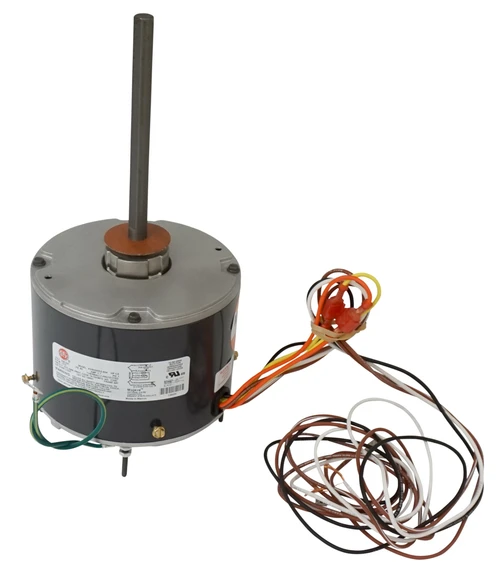

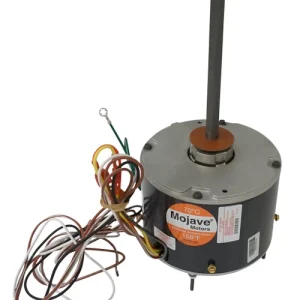

5.6″ Diameter Condenser Fan Motor, 1/4 HP, 208-230V, 1075 RPM, 1.7 Amps, 1860H

️ MOJAVE Series Permanent Split Capacitor Condenser Fan Motor | 1860H

Brand new residential and commercial MOJAVE Series condenser fan motor, part number 1860H.
Built for high‑temperature performance with a 158°F (70°C) ambient design and engineered for long service life in demanding HVAC environments.

This PSC motor features ball bearings with an all‑angle thrust system, Class F insulation, and is suitable for use with 370V capacitors.
Includes 48 leads, extended studs, hubless lead end, and drain holes on both ends. Rated for continuous duty.

✨ Features & Benefits

• Permanent Split Capacitor (PSC) motor for efficient operation
• 158°F (70°C) high‑ambient design for harsh conditions
• Ball bearings with all‑angle thrust system
• Class F insulation for thermal durability
• Suitable for 370V capacitors
• Extended studs and hubless lead end for flexible mounting
• Drain holes on both ends to prevent moisture buildup
• Continuous duty rated

Specifications

• Electrical Type: PSC
• Horsepower: 1/4 HP
• Speeds: 1
• Enclosure: TEAO
• Voltage: 208–230V
• RPM: 1025
• Overload Protection: Automatic
• Rotation: Reversible
• Amps: 1.7
• Motor Diameter: 5.6 in
• Shaft Type & Size: N 6.0 in
• Shell Type & Size: XL 4.1 in

Reliable, efficient, and built for continuous operation — this MOJAVE Series condenser fan motor delivers long‑lasting performance in residential and commercial HVAC systems.
