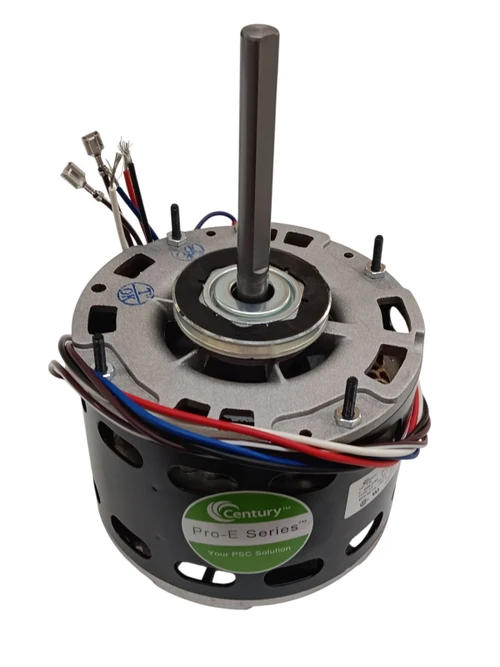

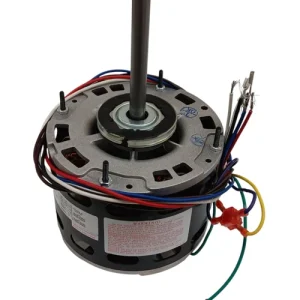

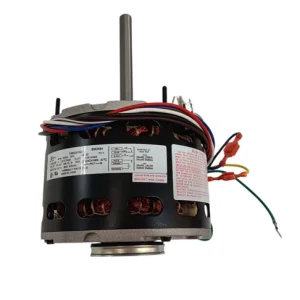

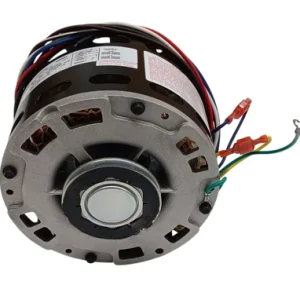

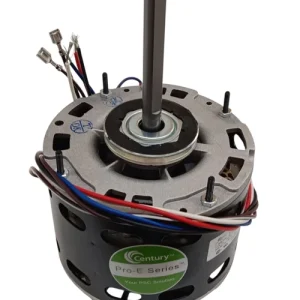

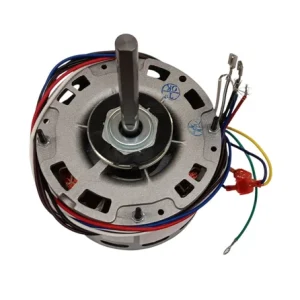

5.6″ Dia. Blower Fan Motor, 1/4 HP, 3-Spd, 208-230V, 1075RPM, 48-Frame, EM3584

️ Electronically Reversible Blower Motor | Replaces EM3584 / 10584 / 1E005

Brand new 5.6″ diameter electronically reversible blower fan motor replacing part numbers EM3584, 10584, 1E005. Designed for HVAC air‑handling applications requiring dependable airflow, this 1/4 HP motor features 3 speeds, reversible rotation, and an OAO (Open Air‑Over) enclosure.

Ideal for furnaces, air handlers, and packaged units requiring a 48‑frame, 1075 RPM motor. Built with ball bearings and automatic thermal protection for long service life.

⚙️ Key Specifications

• Horsepower: 1/4 HP
• Voltage: 208–230V (Single Phase)
• RPM: 1075 RPM
• Speeds: 3‑Speed
• Amperage: 1.9 – 1.1 – 0.9 A (depending on speed)
• Frame: 48Y (5.6″ diameter)
• Shaft: 1/2″ diameter × 4″ length (flat shaft)
• Rotation: Reversible (CW or CCW)
• Capacitor: Requires 5 µF / 370V (not included)
• Enclosure: OAO (Open Air‑Over)
• Thermal Protection: Automatic

Additional Features

• High‑efficiency ECM design (65–70% efficient)
• Dual‑voltage operation — no wiring change required
• Universal mounting: standard 3‑hole + Hussmann 4‑hole pattern
• Ball‑bearing construction for extended motor life
• IP67 submersible protection
• Suitable for commercial refrigeration and HVAC blower applications

Replaces Part Numbers

Fasco: D725
Century / EconoMaster / Packard: 10584, 43584, 53584
Mars: 10584
Smart Electric: SE3584
Nidec / US Motors: 1971
Grainger: 111P02
Diversitech / Wagner: WG840583, WG840584
Genteq: 3584
Rotom: DD3584

Common OEM Cross‑References

Rheem / Ruud / WeatherKing: 51‑23022‑41, 51‑23024‑31
Carrier / Bryant / Payne: MOT06110, MOT12682, MOT13177, MOT7966
York: 024‑25324‑000, 024‑35182‑000

Reliable, efficient, and universally compatible — this electronically reversible blower motor is engineered for demanding HVAC and refrigeration applications.
