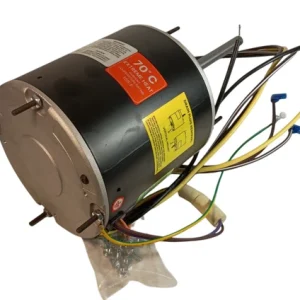

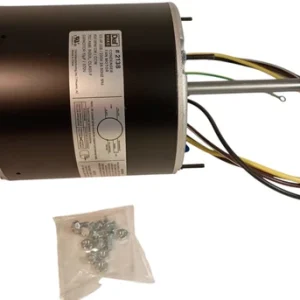

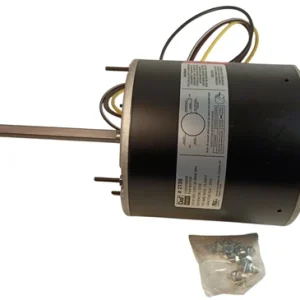

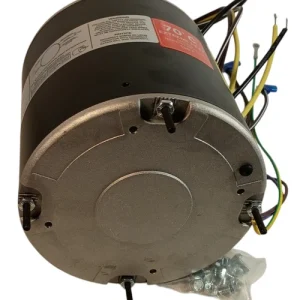

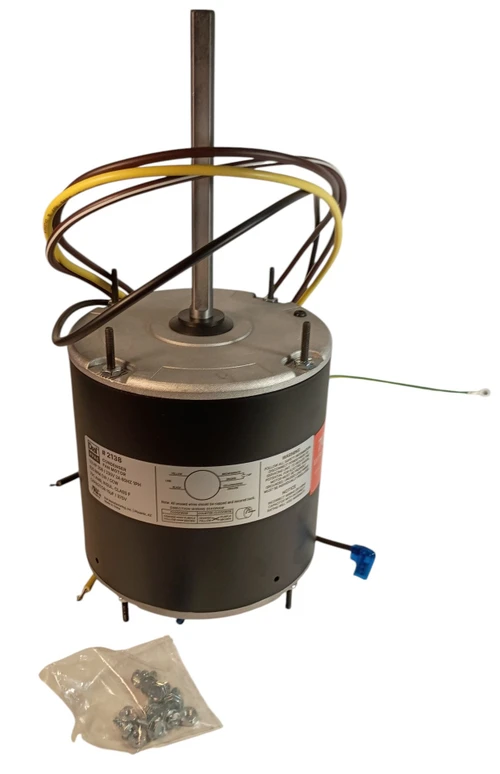

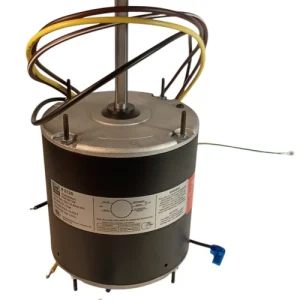

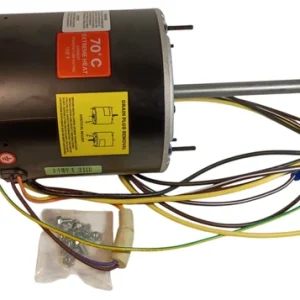

Dial Manufacturing 2138 – 208/230V Extreme Heat Condenser Fan Motor (1/3 HP)
Brand New high-performance condenser fan motor built to withstand extreme heat conditions up to 70°C (158°F). Ideal for residential and commercial HVAC systems operating in high-temperature environments.
Mounting Options:
- Extended studs
- Shell mounting holes (screws included)
- Belly band
- Shaft Up/Down configuration
⚙️ Key Specifications:
- Horsepower: 1/3 HP
- Voltage: 208 / 230V
- Amps: 2
- RPM: 825
- Capacitor: 10 MFD / 370V
- Motor Type: PSC
- Frame Size: 48
- Enclosure: TEAO (Totally Enclosed Air Over)
- Insulation Class: B
- Ambient Temperature: 70°C / 158°F
- Motor Diameter: 5.625 in.
- Shaft Diameter: 0.5 in.
- Shaft Extension: 6 in.
- Lead Length: 36 in.
✅ Additional Features:
- 60 Hertz / Single Phase
- Auto Thermal Protection
- Reversible Rotation
- UL Recognized for safety and reliability
Replaces OEM Part Numbers:
Diversitech WG840205HT, Mars 20405, Packard 30825F, Economaster EM3405F, Century/AO Smith FE1038SF, Smart Electric SE3379, US Motors/Emerson 1875H
Built for performance. Ready for installation.
This motor is a dependable replacement for a wide range
