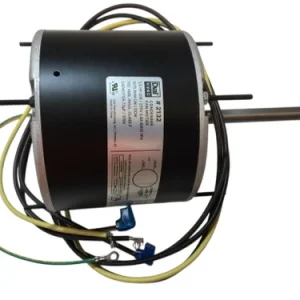

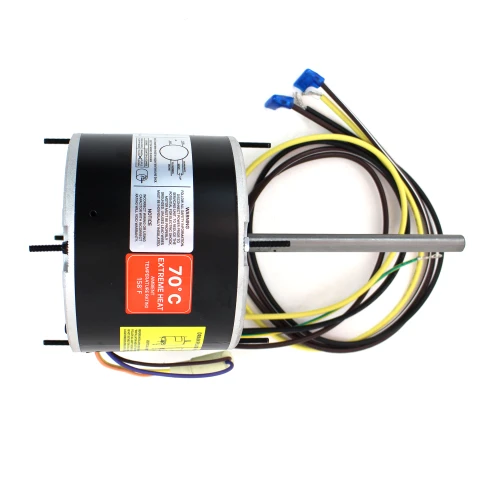

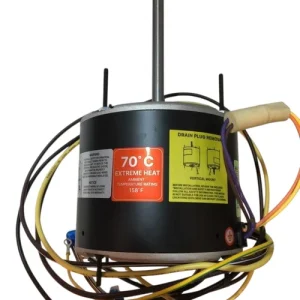

Dial Manufacturing 2132 Condenser Fan Motor – 208/230V, 70°C Rated
Built for Extreme Heat | 1/3 HP | High-Performance HVAC Motor
The Dial Manufacturing 2132 Condenser Fan Motor is engineered for durability and performance in high-temperature environments. With versatile mounting options and a robust design, this motor is ideal for residential and commercial HVAC systems operating in extreme heat conditions.
✅ Mounting Options: Extended studs, shell mounting holes (screws included), belly band, shaft Up/Down
Specifications:
- ⚡ HP: 1/3
- Voltage: 208 / 230V
- Amp Rating: 2.4
- RPM: 1075
- Capacitor: 7.5 MFD / 370V
- ⚙️ Motor Type: PSC
- Frame: 48
- ️ Enclosure: TEAO
- Insulation Class: F
- ️ Ambient Temp: 70°C / 158°F
- Motor Diameter: 5.625 in.
- Shaft Diameter: 0.5 in.
- Shaft Extension: 5.9 in.
- Lead Length: 36 in.
Additional Features:
- Suitable for Extreme Heat (70°C / 158°F)
- Reversible Rotation
- Auto Thermal Protection
- 60 Hertz / Single Phase
- ✅ UL Recognized
Replaces Part Numbers:
Diversitech: WG840729HT
Mars: 20729
Packard: 43733F
Economaster: EM3729F
Century/AO Smith: FE1036SF
Smart Electric: SE3179
US Motors/Emerson: 1861H
This motor is a trusted solution for replacing worn-out units or upgrading to a heat-resistant model. Built to last and easy to install, it’s a top choice for HVAC professionals and DIYers alike.
⚠️ Always disconnect power before installation. Confirm compatibility with your system before purchase.
