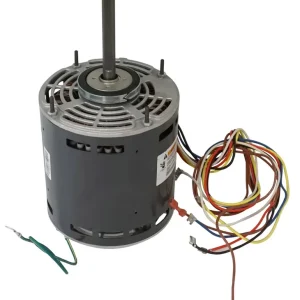

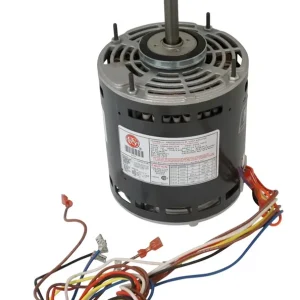

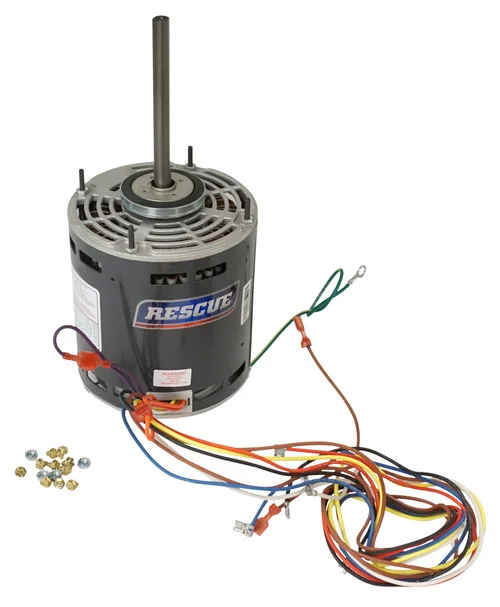

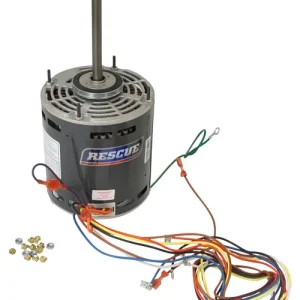

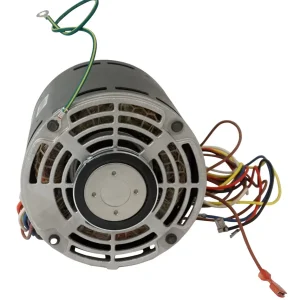

5.6″ Dia. Direct Drive Motor HP Range 3/4″-1/5″ 115V 1075 RPM 1/2×5″ Shaft 5470

Brand new, residential and commercial permanent split capacitor direct drive fan and blower motor part number, 5470. 5.6″ diameter, Continuous Duty, Air Over. Designed for use with 370V Capacitors. Class B Insulation. Bearings Have All Angle Thrust System. 24 Leads. 2.5″ Diameter Hub Rings Included. Includes 4 Holes In Shell For Rheem Mount.

Specifications:

• Electrical Type: PSC
• HP Range: 3/4-1/5
• Speeds: 4
• Enclosure: OAO
• Voltage: 115
• RPM: 1075
• Overload Protection: Automatic
• Current (Amps): 8.1
• Rotation: Reversible
• Motor Diameter (in): 5.6
• Shaft Type & Size (in): N 1/2 x 5
• Shell Type & Size (in): XL 6.1
