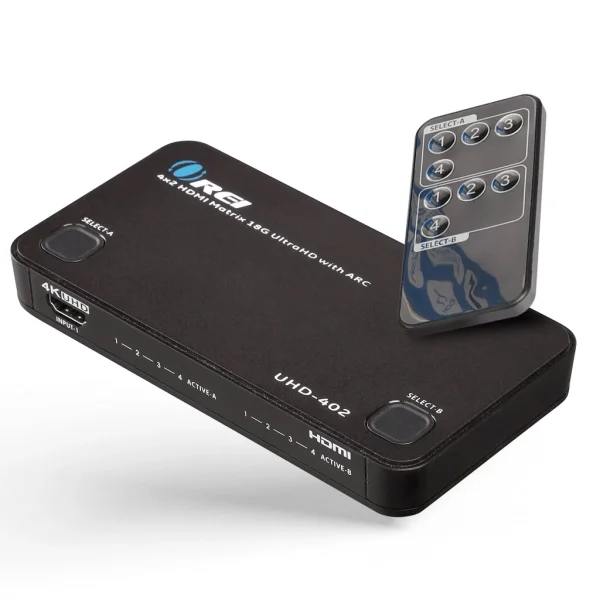

OREI UHD-402: 4×2 HDMI Matrix UltraHD with ARC
Key Features:
-
HDMI 2.0 & HDCP 2.2 Compliant – Compatible with modern 4K sources and protected content.
-
Supports Video Resolutions up to 4K@60Hz – Enables ultra-high-definition display across two screens.
-
Pixel Clock Rate up to 600MHz – Maintains high video quality with no lag or degradation.
-
Lossless Audio Format Support – Supports DTS-HD and Dolby TrueHD for immersive audio.
-

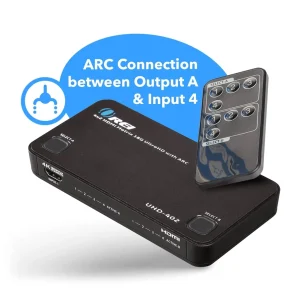

ARC (Audio Return Channel) Support – Allows audio return from ARC-enabled TVs via Input 4 to Output A.
-

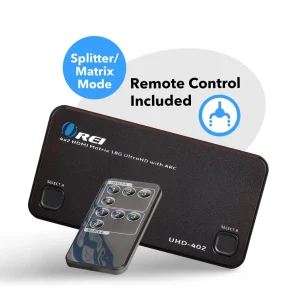

Multiple Control Options – Use the front panel buttons or included remote for convenient switching.
-
Durable ABS Plastic Body – Built to last with a strong and lightweight enclosure.
-
Plug-and-Play Setup – Simple installation with no additional configuration required.

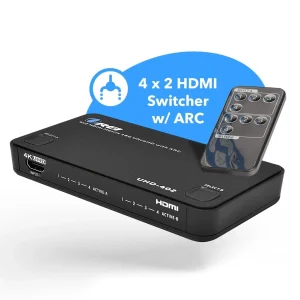

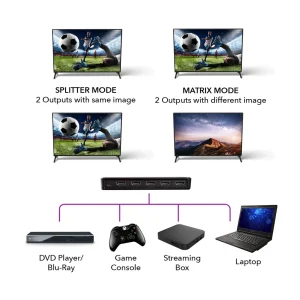

The UHD-402 is a 4×2 HDMI matrix switch designed to connect up to four HDMI sources and independently distribute them to two displays. With support for video resolutions up to 4K@60Hz and a pixel clock rate of 600MHz, it ensures crisp visuals and smooth performance across both outputs.

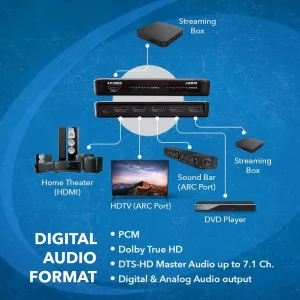

Fully compliant with HDMI 2.0 and HDCP 2.2, the UHD-402 also supports premium lossless audio formats including DTS-HD and Dolby TrueHD. A unique feature is the Audio Return Channel (ARC) between Input 4 and Output A, allowing for audio signal return to ARC-compatible sound systems.
Built with a durable ABS plastic body, the UHD-402 offers both front-panel and remote control operation, delivering a reliable and user-friendly solution for home entertainment systems or commercial AV installations.
[shortdes]
- Durable ABS plastic body
- Video resolutions up to 4K@60Hz
- ARC support between Input 4 and Output A
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: |
4 × HDMI [Type A, 19-pin female] |
|
| OUTPUT: |
2 × HDMI [Type A, 19-pin female] |
|
PACKAGE CONTENTS
| 1x UHD-402 |
| 1x Remote |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0 / 2.1 |
We recommend using high-quality HDMI 2.0 / 2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
18 Gbps |
| Video Resolutions: |
Up to 4K@60Hz |
ADDITIONAL FEATURES
| Audio Extraction: |
❌ |
| ARC / eARC Passthrough: |
✅ |
| EDID Management: |
❌ |
| VRR / ALLM / FVA: |
❌ |
| Dolby Atmos / DTS X Passthrough: |
❌ |
| 4K to 1080p Downscale: |
❌ |
| USB KVM: |
❌ |
AUDIO SUPPORT
| HDMI Audio Formats: |
Dolby TrueHD, DTS-HD |
COMPLIANCES
| HDMI Compliance |
HDMI 2.0 |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
2W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 5V/1A |
|

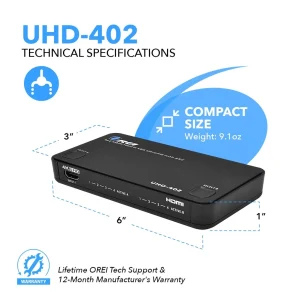

DIMENSIONS & WEIGHT
| Length:
|
150 mm / 5.91inch |
|
| Width: |
74.5 mm / 2.93inch |
|
| Height:
|
20.5 mm / 0.81inch |
|
| Weight:
|
123g / 4.34oz |
|
PROPERTIES
| Color: |
Black |
| Housing: |
Metal Enclosure |
WARRANTY
| 1-Year Manufacturer’s Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: www.support.orei.com
