Availability: 10 in stock
HDMI 2.0b & HDCP 2.2 Compliant – Ensures full compatibility with modern high-definition content and copy protection standards.
Resolutions up to 4K@60Hz – Delivers crystal-clear video to all connected displays.
18Gbps Bandwidth – Provides high-speed data transmission for uncompressed video and audio signals.
Downscale Function – Converts 4K signals to 1080p for use with non-4K displays.

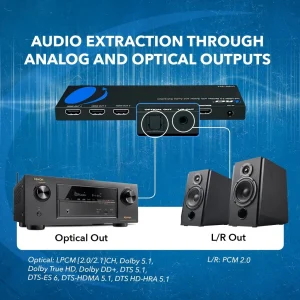

Audio Extraction – Features both Digital Optical and 3.5mm stereo output for flexible audio routing.
Comprehensive Audio Format Support – Compatible with LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD through HDMI.

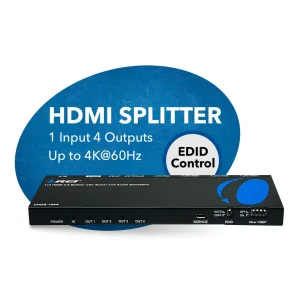

EDID Management – Offers flexible display communication for optimal signal compatibility.
Compact, Plug-and-Play Design – Streamlined form factor ensures easy installation and operation in any environment.

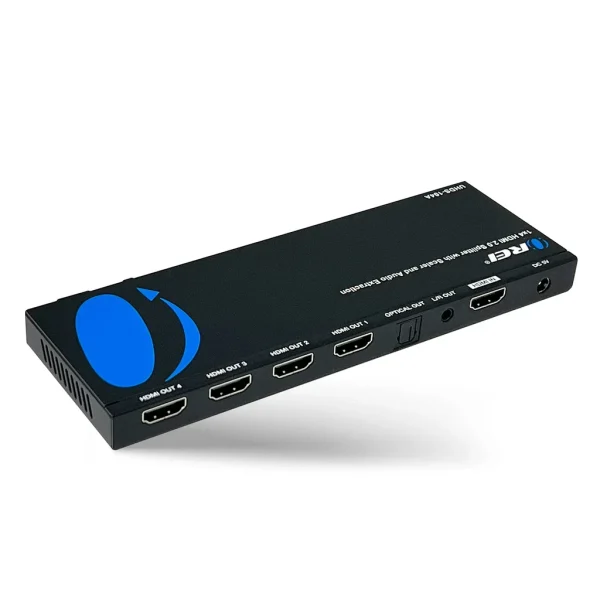

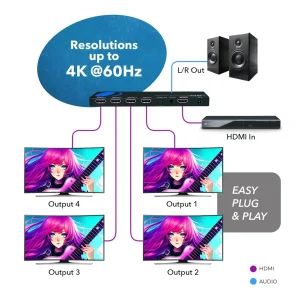

The UHDS-104A is a versatile 1×4 HDMI splitter designed to distribute a single HDMI source to up to four displays simultaneously with uncompromised video and audio performance.
Supporting HDMI 2.0b and HDCP 2.2 standards, the splitter delivers resolutions up to 4K@60Hz with a total video bandwidth of 18Gbps for ultra-high-definition signal clarity. A built-in downscale function allows 4K content to be converted to 1080p, ensuring compatibility with mixed-display environments.
The device also offers audio extraction through both Digital Optical and 3.5mm stereo outputs. It supports a wide range of audio formats including LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS-EX, DTS-HD Master Audio, and DSD through HDMI.
With advanced EDID management and a compact, plug-and-play design, the UHDS-104A is ideal for both professional AV installations and high-quality home entertainment systems.
[shortdes]
[/shortdes]
[tab]
| INPUT: | 1 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 4 × HDMI [Type A, 19-pin female] | |
| 1 × L/R [3.5mm Stereo Mini-jack] | ||
| 1 × Optical [S/PDIF] | ||
| CONTROL: | 1× SERVICE [Micro USB, Update port] |

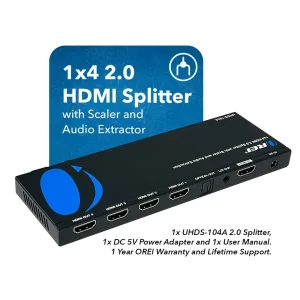

| 1x UHDS-104A HDMI Splitter |
| 1x Power Adapter |
| User Manual |
| HDMI 2.0/2.1 | We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
| 4K@60Hz: | 30 Feet |
| Video Bandwidth: | 18Gbps |
| Video Resolutions: |
Up to 4K@60Hz and 2K@60Hz
|
| EDID Management: | Yes |
| Video Downscaling: | Yes |
| Audio Extraction: | Yes |
| CEC: | No |
| HDR10 / HDR10+ / Dolby Vision: | No / No / No |
| MST Support (Extended Display): | No |
| HDMI Audio Formats: |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
|
| OPTICAL Audio Formats | LPCM 2.0/2.1, Dolby True HD, Dolby Digital Digital+, DTS-HDMA, DTS HD-HRA |
| 3.5mm Analog Audio Formats: |
PCM 2.0
|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Power Consumption: | 3.5W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |

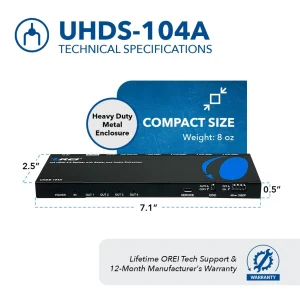

| Length: | 180mm / 4.72in | |
| Width: | 62mm / 2.46in | |
| Height: | 14mm / 0.55in | |
| Weight: | 227g / 5.86oz |
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 32-104°F / 0-40°C |
| Storage Temperature: | -4-140°F / -20-60°C |
| Relative Humidity: | 20~90% RH (Non-condensing) |
| 1-Year Manufacturer’s Warranty |
[/tab]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: UHDS-104A
