Availability: 9 in stock

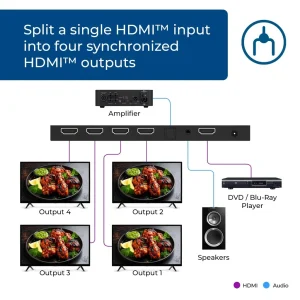

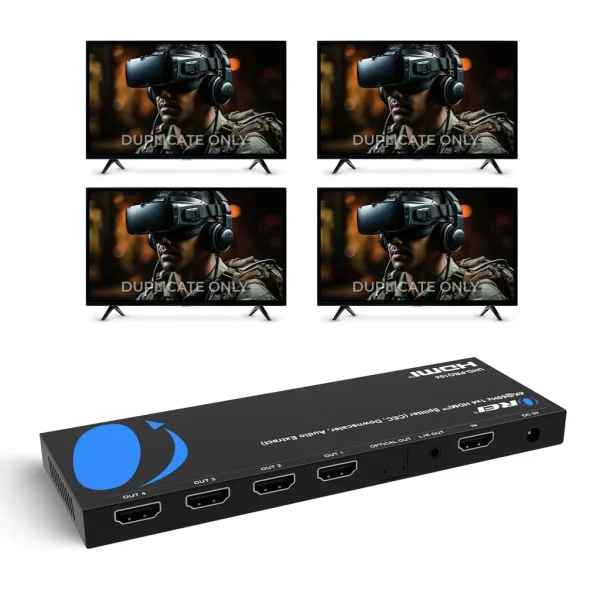

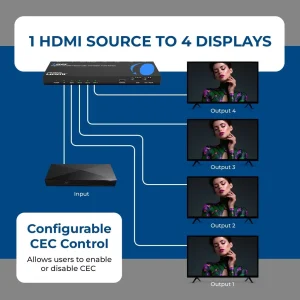

The UHD-PRO104 is a high-performance HDMI Splitter designed to split a single HDMI™ input into four synchronized HDMI™ outputs without compromising signal quality. Supporting bandwidths up to 18Gbps and resolutions up to 4K@60Hz (4:4:4, 8-bit). It delivers exceptional clarity and reliable performance for both commercial and residential installations. Fully compliant with HDMI™ 2.0b and HDCP 2.3, the splitter ensures seamless compatibility with modern source devices such as gaming consoles, Blu-ray players, media streamers, and other media devices. The integrated 4K to 1080p auto-downscaling feature allows simultaneous connection of 4K and 1080p displays, while comprehensive HDR pass-through support maintains superior visual performance, including HDR10+, Dolby Vision and HLG. In addition to video distribution, the unit supports advanced multi-channel audio formats including Dolby Atmos and DTS:X through HDMI, and features audio de-embedding to S/PDIF and analog L/R outputs for flexible integration with external sound systems. Configurable CEC control allows blocking or passing of CEC whenever needed. With advanced EDID management, this splitter provides a dependable solution for multimedia conference rooms, education environments, and home theater setups.
[tab]
| INPUT: | 1× HDMI™ [Type A, 19-pin female] | |
| OUTPUT: | 4× HDMI™ [Type A, 19-pin female] | |
| 1× OPTICAL [S/PDIF] | ||
| 1× L/R [3.5mm stereo audio jack] | ||
| CONTROL: | 1× SERVICE [USB-C, update port] |

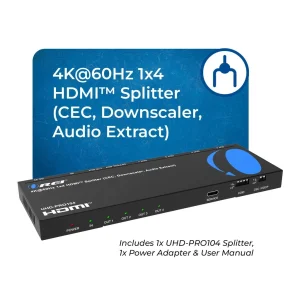

| 1x UHD-PRO104 |
| 1x Power Adapter |
| User Manual |

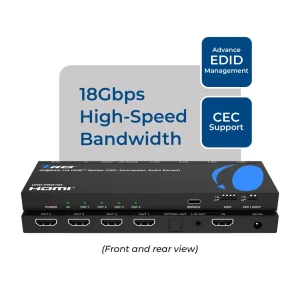

| Video Bandwidth: | 18Gbps |
| Video Resolution (Input & Output): | 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 720x480i59.94Hz(480i59), 720x480p59.94Hz(480p59), 720x576i50Hz(576i50), 720x576p50Hz(576p50), 1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59), 1280x720p60Hz(720p60), 1920x1080i50Hz(1080i50), 1920x1080i59.94Hz(1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24), 1920x1080p25Hz(1080p25), 1920x1080p29.97Hz(1080p29), 1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50), 1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60), 3840x2160p23.98Hz(2160p23), 3840x2160p24Hz(2160p24), 3840x2160p25Hz(2160p25), 3840x2160p29.97Hz(2160p29), 3840x2160p30Hz(2160p30), 3840x2160p50Hz(2160p50), 3840x2160p59.94Hz(2160p59), 3840x2160p60Hz(2160p60), 4096x2160p23.98Hz, 4096x2160p24Hz, 4096x2160p25Hz, 4096x2160p29.97Hz, 4096x2160p30Hz, 4096x2160p50Hz, 4096x2160p59.94Hz, 4096x2160p60Hz |
| Color Depth: | 8-bit,10-bit,12-bit |
| EDID Management: | Yes |
| Video Downscaling: | Yes |
| Audio Extraction: | Yes |
| CEC: | Yes |
| HDR10 / HDR10+ / Dolby Vision: | Yes / Yes / Yes |
| MST Support (Extended Display): | No |
| Audio Formats: |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
|
| HDMI™ Compliance | HDMI™ 2.0b |
| HDCP Compliance | HDCP 2.3/1.4 |
| Power Consumption: | 2.29W (Max) | |
| Power Supply: | DC 5V/1A |

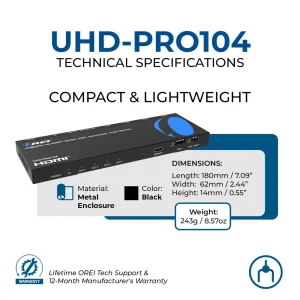

| Length: | 180mm/7.09in | |
| Width: | 62mm/2.44in | |
| Height: | 14mm/0.55in | |
| Weight: | 243g / 8.57oz |
| Color: | Black |
| Housing: | Metal Enclosure |
| Operating Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity: | 20%~80% relative humidity, non-condensing |
| Storage Humidity: | 10%~90% relative humidity, non-condensing |
| 1-Year Manufacturer’s Warranty |
[/tab]
[shortdes]
[/shortdes]
[tab1]Visit Our Help Center for FAQs, Troubleshooting and other queries: www.support.orei.com
