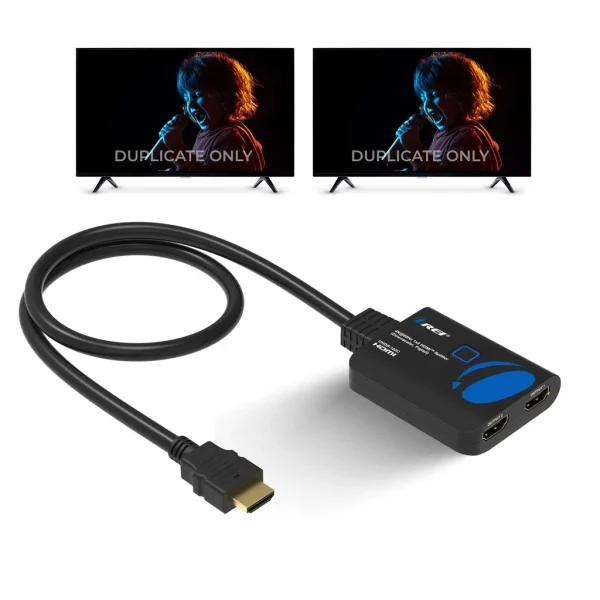

OREI 4K HDMI Splitter 1 in 2 out with HDMI Male connector and Downscaler

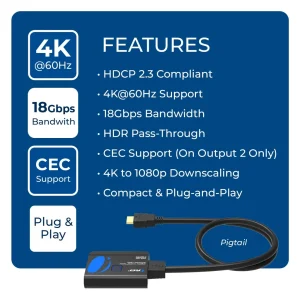

Key Features:
-
HDMI 2.0 and HDCP 2.2 compliant – Supports modern high-definition content and copy protection standards.
-
Resolutions up to 4K@60Hz – Provides crisp, Ultra-HD video output to both displays.
-
18Gbps video bandwidth – Ensures fast, reliable signal transmission for high-quality video.
-
HDR pass-through with 12-bit color depth – Delivers rich contrast and vibrant color.
-
4K to 1080p downscaling – Automatically adapts resolution for displays that do not support 4K.
-
Compact design with plug-and-play setup – Built-in HDMI cable and compact size allow for easy, cable-free installation.

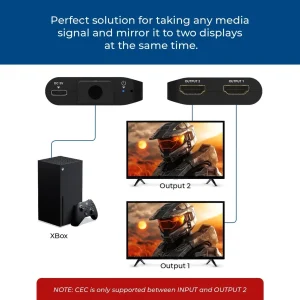

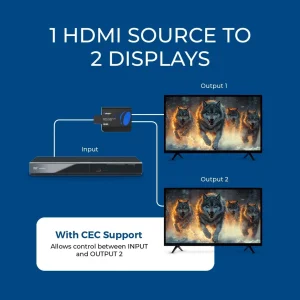

The UHDS-102C is a compact 1×2 HDMI splitter with an integrated 0.6-meter male HDMI cable, eliminating the need for an additional HDMI connection. Designed for convenience and performance, it complies with HDMI 2.0 and HDCP 2.2 standards and supports video resolutions up to 4K@60Hz.
With a video bandwidth of 18Gbps, the UHDS-102C ensures smooth transmission of high-definition content. It supports HDR pass-through with 12-bit color depth and 3D video formats, making it suitable for both modern and legacy displays.
For added versatility, the splitter includes automatic downscaling from 4K to 1080p, enabling compatibility with non-4K displays. Its plug-and-play setup and compact form factor make it ideal for both commercial AV systems and personal entertainment setups.
[shortdes]
- 1 in 2 out HDMI splitter with Pigtail HDMI cable
- Resolutions up to 4K@60Hz
- 4K to 1080p Downscale Feature
[/shortdes]
[tab]

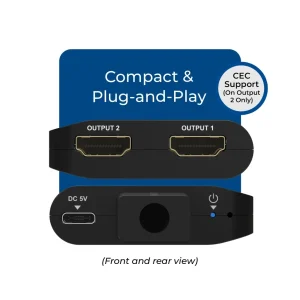

CONNECTIVITY
| INPUT: |
1 × HDMI [Type A, 19-pin Male] |
|
| OUTPUT:
|
2 × HDMI [Type A, 19-pin female] |
|

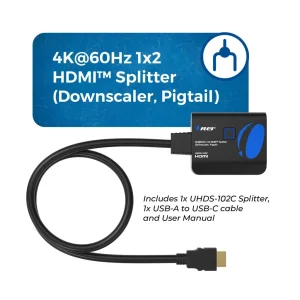

PACKAGE CONTENTS
| 1x UHDS-102A HDMI Splitter |
| 1x USB Cable |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 |
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
18Gbps |
| Video Resolutions: |
Up to 4K@60Hz 4:4:4 |
ADDITIONAL FEATURES
| EDID Management: |
No |
| Video Downscaling: |
Yes |
| Audio Extraction: |
No |
| CEC: |
No |
| HDR10 / HDR10+ / Dolby Vision: |
Yes / No / No |
| MST Support (Extended Display): |
No |
AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM, Dolby Digital, Dolby True HD, DTS, DTS-HD Master Audio
|
COMPLIANCES
| HDMI Compliance |
HDMI 2.0 |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
5W (Max) |
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 5V/1A |
|

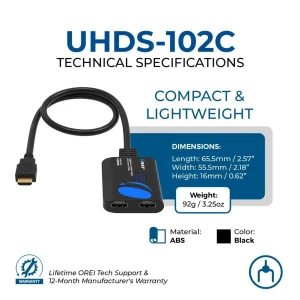

DIMENSIONS & WEIGHT
| Length:
|
65mm / 2.56in |
|
| Width:
|
54.5mm / 2.15in |
|
| Height:
|
20.5mm / 0.71in |
|
| Weight:
|
92g / 3.25oz |
|
PROPERTIES
| Color: |
Black |
| Housing: |
Plastic Enclosure |
| Operating Temperature: |
0 C to 70 C |
| Storage Humidity: |
5% to 90% RH non-condensation |
WARRANTY
| 1-Year Manufacturer’s Warranty |
[/tab]
