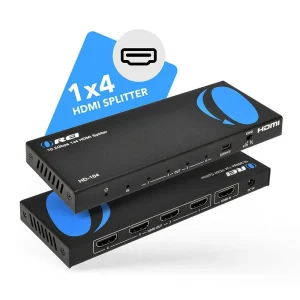

OREI HD -104: 1 Input 4 Output HDMI Splitter with EDID management
Key Features:
-
HDMI 1.4 and HDCP 1.4 Compliant – Ensures compatibility with standard HD video and protected content.
-
Resolutions up to 4K@30Hz – Delivers clear, detailed video to four displays.
-
10.2Gbps Video Bandwidth – Provides stable signal transmission across all outputs.
-
HDR10+ and Dolby Vision Support – Enhances image quality with greater contrast and color depth.
-
Advanced Audio Format Support – Passes PCM 7.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD-MA, and DSD audio formats.
-
EDID Management – Switch between two available modes to match display requirements.
-
3D Support – Compatible with 3D video formats at 1080p resolution.
-

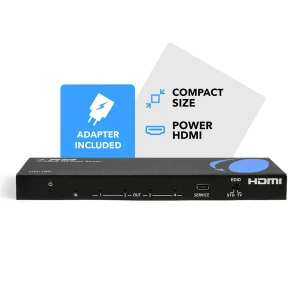

Compact Size with Plug-and-Play Setup – Easy installation with minimal space requirements.

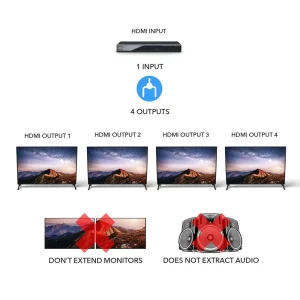

The HD-104 is a compact 1×4 HDMI splitter designed to distribute a single HDMI source to four displays simultaneously with consistent signal quality. Fully compliant with HDMI 1.4 and HDCP 1.4 standards, it supports video resolutions up to 4K@30Hz with a maximum video bandwidth of 10.2Gbps.
The HD-104 offers support for HDR10+, and Dolby Vision for enhanced visual performance, along with 3D video compatibility. It also delivers high-quality audio pass-through, supporting PCM 7.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD-MA, and DSD formats.
An integrated EDID management switch allows users to toggle between STD and TV modes for optimal compatibility. Its plug-and-play setup and space-saving design make it a practical choice for both home entertainment and commercial display installations.
[shortdes]

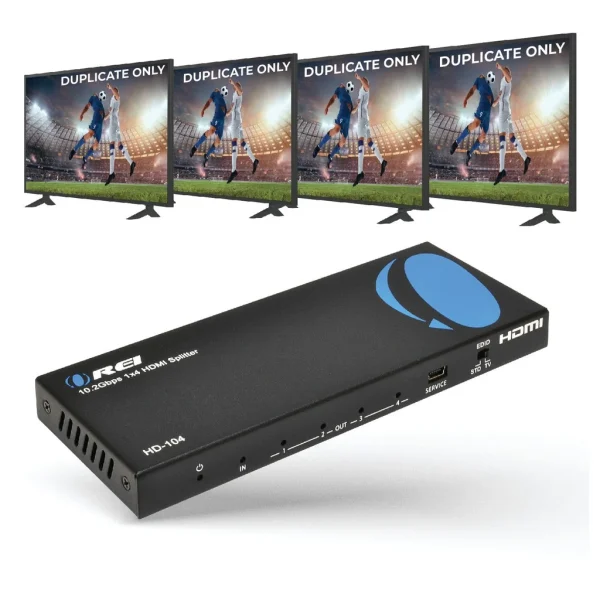

- Mirror content to 4 displays
- Resolutions up to 4K@30Hz
- EDID management
[/shortdes]
[tab]
CONNECTIVITY
| INPUT: |
1 × HDMI [Type A, 19-pin female] |
|
| OUTPUT:
|
4 × HDMI [Type A, 19-pin female] |
|
| CONTROL:
|
1× Mini USB-B [5-pin female, for firmware updates] |
|
PACKAGE CONTENTS
| 1x HD-104 HDMI Splitter |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 |
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
10.2Gbps |
| Video Resolutions: |
Up to 4K@30Hz 4:4:4 |
ADDITIONAL FEATURES
| EDID Management: |
Yes |
| Video Downscaling: |
No |
| Audio Extraction: |
No |
| CEC: |
No |
| HDR10 / HDR10+ / Dolby Vision: |
Yes / Yes / Yes |
| MST Support (Extended Display): |
No |
LOOP-OUT/LOCAL PORT
| Has loop out port: |
No |
| Number of Loop out ports: |
0 |

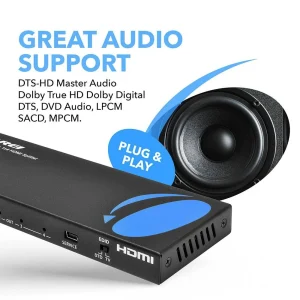

AUDIO SUPPORT
| HDMI Audio Formats: |
PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD,
DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master
Audio, DSD
|
COMPLIANCES
| HDMI Compliance |
HDMI 1.4 |
| HDCP Compliance |
HDCP 1.4 |
POWER
| Power Consumption: |
5W (Max) |
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 5V/1A |
|

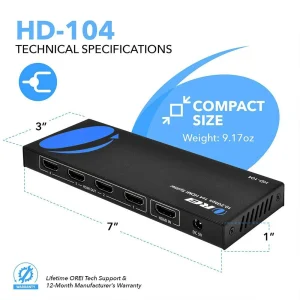

DIMENSIONS & WEIGHT
| Length:
|
145mm / 5.71in |
|
| Width:
|
70mm / 2.76in |
|
| Height:
|
25mm / 0.98in |
|
| Weight:
|
300g / 10.58oz |
|
PROPERTIES
| Color: |
Black |
| Housing: |

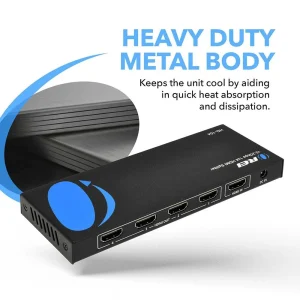

Metal Enclosure |
| Operation Temperature: |
32-104°F / 0-40°C |
| Storage Temperature: |
-4-140°F / -20-60°C |
| Operating Humidity: |
20~90% RH (Non-condensing) |
WARRANTY
| 1-Year Manufacturer’s Warranty |
[/tab]
