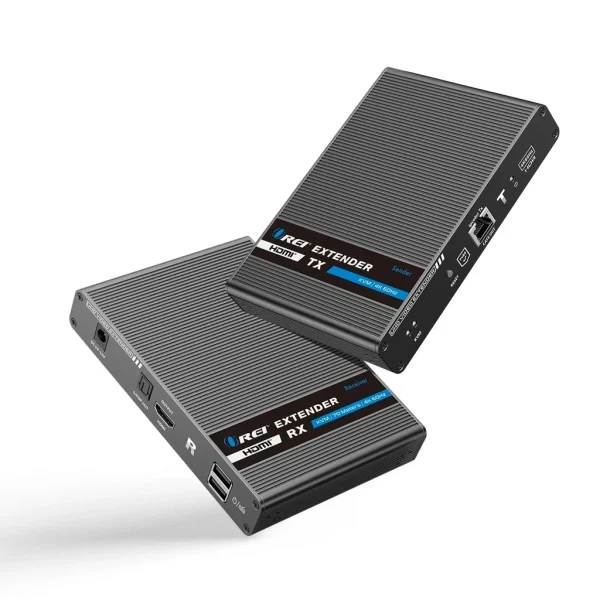

OREI UHD-IPC230-KVM 4K KVM HDMI Extender Over LAN up to 230Ft

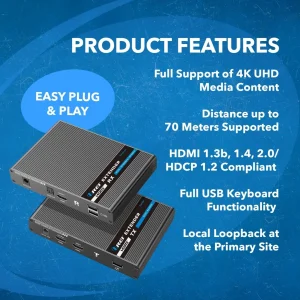

Key Features:

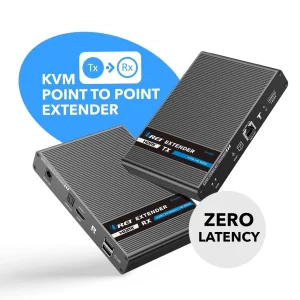

- Transfers the 4K UHD video resolutions at zero latency
- Supports KVM (keyboard, video and mouse) function
- Supports ipcolor technology
- HDMI 2.0 & HDCP 2.2 compliant
- Extends 4K@60Hz signal up to 230 feet via shielded CAT6/7 cable
- Supports HDR (YUV 4:4:4), EDID pass back
- Supports LPCM, DTS-HD, DTS-Audio, Dolby Digital 5.1 Ch audio formats
- The receiver can extract the digital audio from the transmitter through the S/PDIF port
- Transmitter supports one HDMI loop out port
- Lightning protection, surge protection, ESD protection
- Plug & play setup

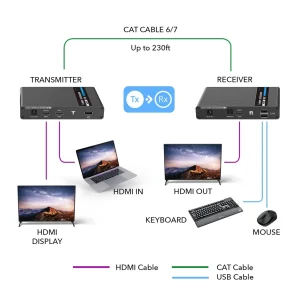

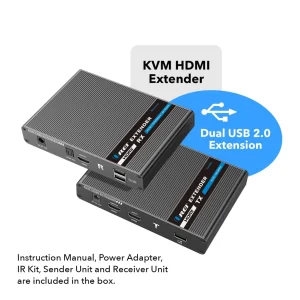

UHD-IPC230-KVM is a 4K UHD KVM HDMI Extender, allows HDMI signal to be transmitted up to 230 feet at 4K@60Hz resolution using a round shielded CAT6/7 network ethernet cable.
Compatible with HDMI units such PC, Roku, TV, Amazon Fire TV, Ultra Projector, Xbox, Apple TV, HDMI LCD, Cable box, Blu-ray player, DVD player, PC, STB and more. It is perfect for outdoor advertising, video clips, monitor system, home entertainment, conference etc.
[shortdes]

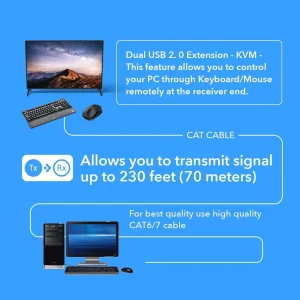

- Supports KVM function
- Able to extract the audio via S/PDIF port
- Supports HDR (YUV 4:4:4), EDID pass back
[/shortdes]
[tab]
AUDIO AND VIDEO
| Transmitter: |
INPUT PORTS: |
1x HDMI Input |
| |
|
1x USB |
|
OUTPUT PORTS: |
1x Optical Output |
| |
|
1x RJ45 Output |
| Receiver: |
INPUT PORTS: |
1x RJ45 Input |
|
OUTPUT PORTS: |
1x HDMI Output |
|
|
2x USB |
COMPLIANCES
| HDMI Compliance: |
HDMI 2.0 |
| HDCP Compliance: |
HDCP 2.2 |
ADDITIONAL FEATURES
| ARC/eARC: |
❌/❌
|
| CEC : |
❌ |
| Transmission Technology : |
Ethernet |
| IR Control: |
❌ |
| PoC (Power over Cable): |
❌ |
| RS-232: |
❌ |
| USB Standard: |
USB (KVM) |
| USB-C DP Alt Mode: |
❌ |
| HDR10 / HDR10+ / Dolby Vision: |
✅/❌/❌
|
SUPPORTED CAT CABLES
| CAT5e, CAT6, CAT7: |
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
EXTENDING DISTANCE
VIDEO OUTPUT
| Video Bandwidth: |
18Gbps |
| Video Resolutions: |
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@60Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/50Hz, 4096×2160@24/25Hz, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1360×768, 1366×768, 1600×900, 1024×768, 800×600
|
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
| CEC Function: |
No |
| ARC Function: |
No |
| USB KVM Function: |
Yes |
| PoC Function: |
No |
| IR Controller: |
No |
| Downscaler Function: |
No |
| Over Network/IP Function: |
No |
| HDBaseT Function: |
No |
| RS-232 Function: |
No |
LOOP-OUT/LOCAL PORT
| Has loop out port: |
Yes |
| Number of Loop out ports: |
1 |
AUDIO OUTPUT
| HDMI Audio Formats: |
LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1 Ch. |
| SPDIF/Optical Audio Formats: |
Up to 5.1Ch. |
SIGNALS
| TMDS Signals: |
0.7-1.2Vp-p(TMDS) |
| DDC Signals: |
5Vp-p(TTL) |

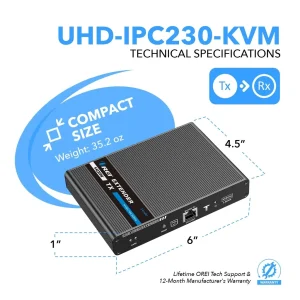

DIMENSIONS & WEIGHT
| Height: |
28.4mm |
|
| Width: |
107mm |
|
| Depth: |
150mm |
|
| Weight: |
Transmitter: |
260g |
| |
Receiver: |
260g |
PROTECTION
| Electrostatic Protection of the whole Machine: |
1a Contact discharge level 3 1b Air discharge level 3 Implementation of the standard: IEC61000-4-2 |
RJ-45 CONNECTOR Type
POWER
| Power Consumption (Max): |
Transmitter: |
4W |
| |
Receiver: |
4W |
| Power Supply: |
DC5V/2A |
|
PHYSICAL PROPERTIES
| Color: |
Black |
| Housing: |
Aluminium Alloy Material + Crystal Panel |
| Treatment Process: |
Grit Blast |
| Input Cable Length: |
<=8m(AWG24) |
| Output Cable Length: |
<=8m(AWG24) |
| Operation Temperature: |
-20 ~ 60°C |
| Storage temperature: |
-30 ~ 70°C |
| Operating Humidity: |
0 ~ 90% RH |
PACKAGE CONTENTS
| 1x HDMI Transmitter |
| 1x HDMI Receiver |
| 2x DC5V/2A Power Adapter |
| 1x USB Cable |
| 8x Mounting Brackets |
| 18x Screw |
| 1x User Manual |
WARRANTY
| 1 – Year Manufacturer’s Warranty |
