Availability: 8 in stock
Box is Damaged- Unit is New
HDMI 2.0 & HDCP 2.2 Compliant – Ensures compatibility with modern HDMI sources and protected content
18Gbps Video Bandwidth – Delivers full-speed 4K@60Hz 4:4:4 transmission with high fidelity
Supports Resolutions up to 4K@60Hz 4:4:4 – Crystal-clear Ultra HD video quality with backward compatibility
HDR, Dolby Vision & HLG Pass-Through – Enhances contrast, brightness, and color for superior picture quality
Dual HDMI Outputs (Video + Audio) – Simultaneously output video and high-quality audio via HDMI
4K to 1080p Downscale (Output 1) – Automatically adapts to 1080p displays while maintaining 4K source input
HDMI Audio Output Modes: Bypass or 2CH Downmix – Flexible options for different AVRs and setups
ARC/eARC Audio Extraction – Routes TV audio from ARC-enabled TVs to amplifiers or sound systems
Dolby TrueHD & DTS-HD Downmixing – Converts high-bandwidth audio to 2CH via coaxial, optical, or stereo outputs
Simultaneous Multi-Port Audio Output – HDMI, analog, coaxial, and optical outputs all function at once
API Command & DIP Switch Control – Fine-tune audio, scaling, EDID, and ARC/eARC settings with precision
Advanced EDID Management – Guarantees optimal communication between source and display devices
Plug & Play with LED Indicators – Easy setup with clear power, signal, and audio format status display

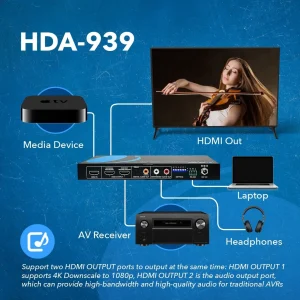

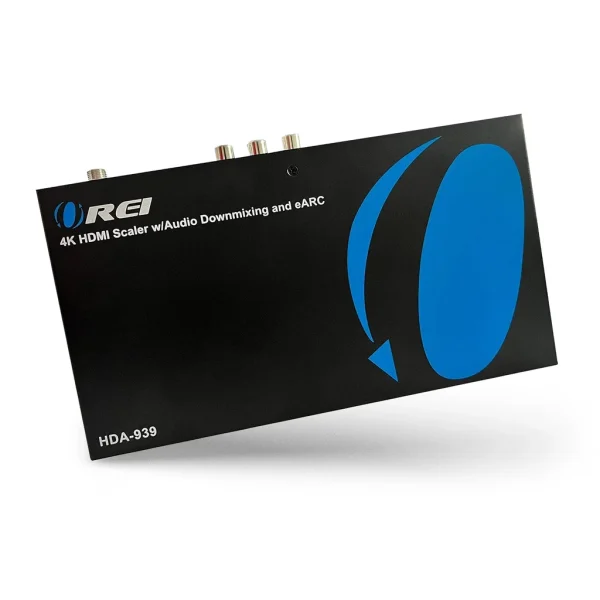

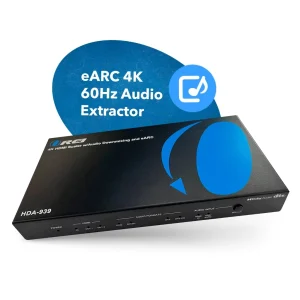

HDA-939 is a professional-grade audio and video processor designed to extract and downmix HDMI audio for maximum flexibility. It supports decoding of Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, and DTS-HD Master Audio and outputs 2CH LPCM through analog, coaxial, and optical ports. HDMI OUTPUT 1 supports video resolutions up to 4K@60Hz 4:4:4 with automatic downscaling to 1080p, while HDMI OUTPUT 2 serves as an audio-only output delivering high-bandwidth audio to traditional AVRs. ARC/eARC functionality allows audio to be returned from a connected TV and routed to external sound systems. Audio can be extracted without connecting any HDMI display. With advanced EDID management, API command support, DIP switch settings, and simultaneous multi-port audio output, the HDA-939 is ideal for modern AV setups requiring precise audio routing, downmixing, and video compatibility.
[shortdes]
[/shortdes] [tab]

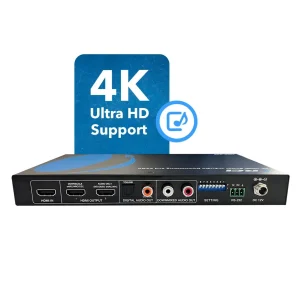

| INPUT PORTS: | 1 x HDMI IN [Type A, 19-pin female] |
| OUTPUT PORTS: | 2 x HDMI OUTPUT [Type A, 19-pin female] |
| 1 x COAXIAL AUDIO OUT [RCA] | |
| 1 x TOSLINK AUDIO OUT [S/PDIF] | |
| 1 x L/R AUDIO OUT RCA [Red & White] | |
| Control: | 1 x RS-232 [3pin-3.81mm phoenix connector] |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 / 1.4 |
| HDR | Support HDR 10, HLD, and Dolby vision |
| Video Bandwidth: | 18 Gbps |
| Video Resolutions: | Up to 4k@60Hz and 2K@60Hz |
| Color Space: | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Color Depth: | 8/10/12 bit |
| eARC/ARC: | Yes |
| HDMI: | LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD Master |
| Coaxial / Toslink: | PCM 32KHz/44.1KHz/48KHz/88.2KHz/96KHz/176.4KHz/192KHz, Dolby 5.1, DTS-ES 6.1, DD+ TrueHD, DTS-HD |
| L/R analog: | PCM 32KHz/44.1KHz/48KHz/88.2KHz/96KHz/176.4KHz/192KHz |

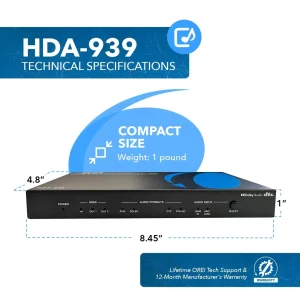

| Height: | 25mm |
| Width: | 214mm |
| Depth: | 117mm |
| Weight: | 605g |
| Operation Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity: | 20~90% RH (non-condensing) |
| ESD Protection: | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Power Consumption (Max): | 4W(max) |
| Power Supply | DC 12V/1A |
| Color: | Black |
| Housing: | Metal Enclosure |
| 1x HDMI Audio Extractor |
| 1 x 3pin-3.5mm Phoenix Connector (male) |
| 2 x Mounting Ears |
| 4 x Machine Screws (KM3*4) |
| 1 x 12V/1A Locking Power Adapter |
| 1 x User Manual |
| 1-Year Manufacturer’s Warranty |
