Availability: 6 in stock
Key Features:
HDMI 2.0b & HDCP 2.2 Compliant – Fully supports modern AV devices and copy-protected content.
Supports Video Resolutions up to 4K@60Hz – Transmits ultra-high-definition video up to 328 ft (100 m) over HDBaseT 3.0 with zero signal loss.
18Gbps Video Bandwidth & HDR Support – Delivers uncompressed video and audio with HDR10+, Dolby Vision, and HLG for superior contrast, brightness, and color fidelity.
Advanced Audio & ARC/eARC Functionality – Extract audio via HDMI, SPDIF, or L/R outputs; route TV audio to ARC/eARC-enabled soundbars or AVRs. Compatible with LPCM, Dolby Digital/Plus, Dolby TrueHD, DTS High Res, DTS-HD Master Audio, and DSD.

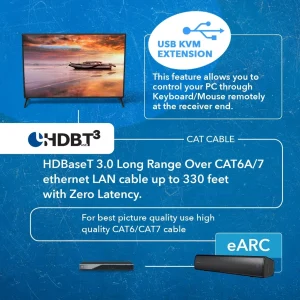

Flexible Control & Connectivity – Bi-directional KVM support for USB 2.0 peripherals, bi-directional IR & RS-232 pass-through, PoC for single-adapter power, and 1Gbps Ethernet pass-through.
HDMI Loop-Out with Audio-Only Mode – Preview video locally or output audio to external AV receivers.
Compact, Durable Design – Ideal for professional or personal installations, offering reliable performance in commercial and residential environments.

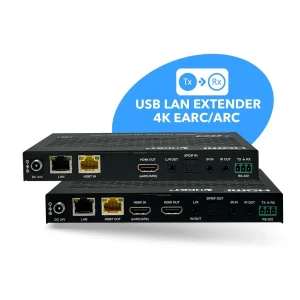

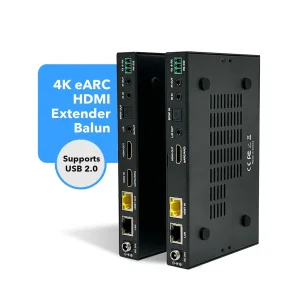

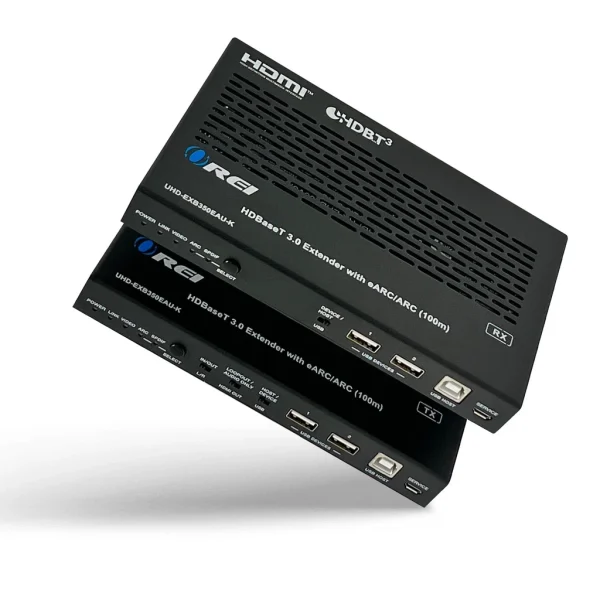

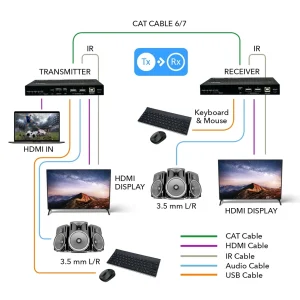

The UHD-EXB350EAU-K is a professional-grade HDBaseT 3.0 HDMI extender with integrated KVM functionality, audio extraction, and long-distance transmission capabilities. It is engineered to transmit uncompressed 4K@60Hz video and USB signals up to 328 feet (100 meters) over a single Cat6/7 cable.
Fully compliant with HDMI 2.0b, HDCP 2.2, HDBaseT 3.0, and USB 2.0 standards, this extender ensures high-performance media delivery with best quality. Designed for both commercial AV installations and demanding personal setups, the UHD-EXB350EAU-K supports ARC/eARC, allowing audio to be returned from an ARC/eARC TV to an ARC/eARC soundbar or AVR via the Receiver.
It also features multiple audio extraction options via HDMI, S/PDIF, and stereo L/R ports, along with bi-directional KVM support that enables full PC control from either end. Additional capabilities include Ethernet pass-through, IR and RS-232 control, and Power over Cable (PoC), requiring power at only one end for simplified deployment.
[shortdes]
[/shortdes]
[tab]
| Transmitter: | INPUT: | 1 × HDMI [Type A, 19-pin female] |
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × HDBaseT [RJ45, 8-pin female] | ||
| CONTROL: | 1 × L/R [3.5mm Stereo Mini-jack] | |
| 1 × Optical [S/PDIF] | ||
| 1 × SERVICE [Micro USB, Update port] | ||
| CONTROL | 1 × IR IN [3.5mm Stereo Mini-jack] | |
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| 1 × RS-232 [3-pin phoenix connector] | ||
| 1 × USB HOST [USB Type B] | ||
| 2 × USB 2.0 [USB Type A] | ||
| 1 × LAN [RJ45, 8-pin female] | ||
| 1 × SERVICE [Micro USB, Update port] | ||
| Receiver: | INPUT: | 1 × HDBaseT [RJ45, 8-pin female] |
| 1 × Optical [S/PDIF] | ||
| OUTPUT: | 1 × HDMI [Type A, 19-pin female] | |
| 1 × L/R [3.5mm Stereo Mini-jack] | ||
| CONTROL: | 1 × IR IN [3.5mm Stereo Mini-jack] | |
| 1 × IR OUT [3.5mm Stereo Mini-jack] | ||
| 1 × RS-232 [3-pin Phoenix connector] | ||
| 1 × USB HOST [USB Type B] | ||
| 2 × USB 2.0 [USB Type A] | ||
| 1 × SERVICE [Micro USB, Update port] | ||
| 1 × LAN [RJ45, 8-pin female] |
| 1x Transmitter |
| 1x Receiver |
| 1x IR Blaster cable |
| 1x IR Receiver cable |
| 2x 3-pin Phoenix Connectors |
| 4x Mounting Ears |
| 8x Machine Screws |
| 1x Power Adapter |
| User Manual |
| CAT5e, CAT6, CAT7: | We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance |
| ARC/eARC: | Yes |
| CEC : | No |
| Transmission Technology : | HDbaseT, Ethernet |
| IR Control: | Yes, Bi-directional |
| PoC (Power over Cable): | Yes |
| RS-232: | Yes |
| USB Standard: | USB 2.0 (KVM) |
| USB-C DP Alt Mode: | No |
| HDR10 / HDR10+ / Dolby Vision: | Yes |
| 4K@60Hz: | 330 Feet |
| Video Bandwidth: | 18Gbps |
| Video Resolutions: | Up to 4K@60Hz and 2K@60Hz |
| Has loop out port: | Yes |
| Number of Loop out ports: | 1 |
| HDMI Audio Formats: | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Optical Audio Formats: | LPCM2.0, AC3 5.1, DTS 5.1 |
| Analog Audio Formats: | PCM 2.0 |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Power Consumption: | 15.36W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 24V/1A |
| Transmitter: | Length: | 170mm / 6.69in |
| Width: | 102mm / 4.01in | |
| Height: | 22mm / 0.87in | |
| Weight: | 425g / 14.99oz | |
| Receiver: | Length: | 170mm / 6.69in |
| Width: | 102mm / 4.01in | |
| Height: | 22mm / 0.87in | |
| Weight: | 437g / 15.42oz |
| Color: | Black |
| Housing: | Metal Enclosure |
| Operation Temperature: | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature: | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity: | 20% ~ 80% relative humidity, no condensation |
| Storage Humidity: | 10% ~ 90% relative humidity, no condensation |
| 1-Year Manufacturer’s Warranty |
