4K 1-In-4-Out USB-C & HDMI™ Video Wall Controller (Audio Extract)-UHD-14VW

UHD-14VW: HDMI 2×2 Video Wall Controller with USB-C input

Key Features:

• HDMI 2.0, HDCP 2.2 & DP 1.2a Compliant – Works with modern 4K media sources and copy-protected content.


• Supports Video Resolutions up to 4K@60Hz – Ensures ultra-clear video performance on all outputs.


• Audio Extraction – Provides Optical and 3.5mm stereo outputs for flexible sound integration.


• USB-C Input – Allows direct connection with USB-C laptops and devices.

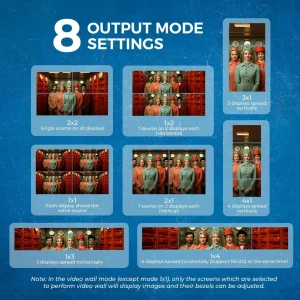

• 8 Video Wall Modes – Supports configurations including 2×2, 1×4, 4×1, and more.


• 180° Image Rotation – Perfectly aligns displays in custom setups.


• Bezel Adjustment & EDID Management – Enhances image continuity and device compatibility.

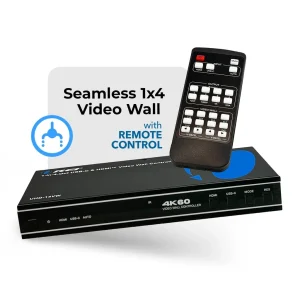

• Multiple Control Options – Use front panel buttons, included IR remote, or RS-232 commands (RS-232 cable not included).


• Plug-and-Play Setup – Basic video wall operation requires no software or drivers. Image rotation is controlled via RS-232 using computer software.

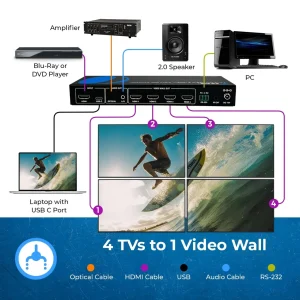

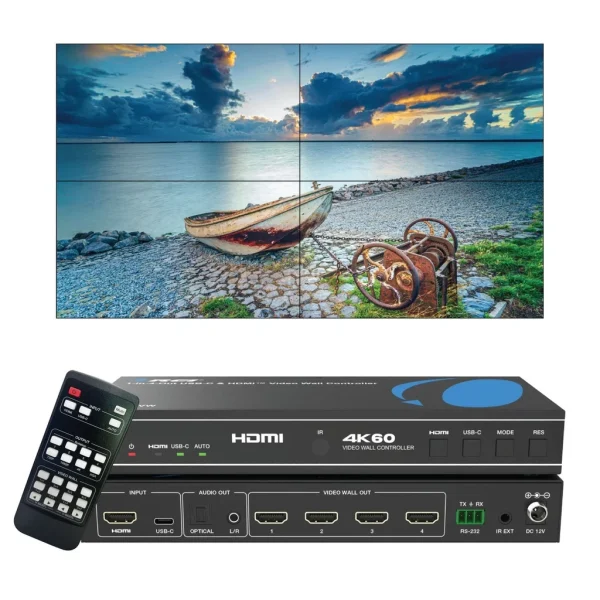

The UHD-14VW is a 1×4 Video Wall Controller designed to take a single media input and display it across four screens with flexible configuration options. Fully compliant with HDMI 2.0, HDCP 2.2, and DisplayPort 1.2a standards, it supports resolutions up to 4K@60Hz 4:4:4 for sharp, vibrant visuals.

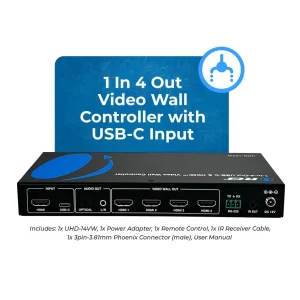

Equipped with both HDMI and USB-C inputs, the UHD-14VW offers broader compatibility across modern media sources. It supports 8 different video wall layouts including 2×2, 1×4, and 4×1, and includes 180-degree image rotation and bezel compensation features for seamless screen alignment. Audio can be extracted via Optical or 3.5mm stereo outputs.

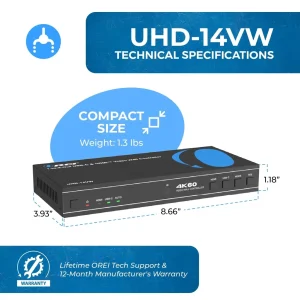

Control is available via front panel buttons, the included IR remote, or RS-232 commands. Image rotation requires RS-232 control via computer software. With a compact design and straightforward basic setup, the UHD-14VW is suitable for commercial signage and immersive home display environments.

[shortdes]

• 1×4 Video wall controller
• Resolutions up to 4K@60Hz
• Features 180-degree rotation, bezel management

[/shortdes]
