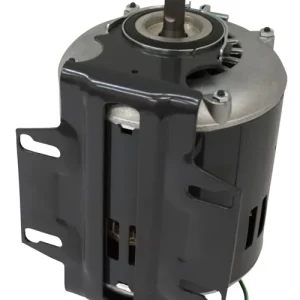

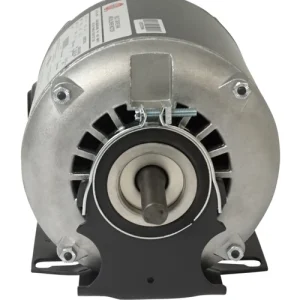

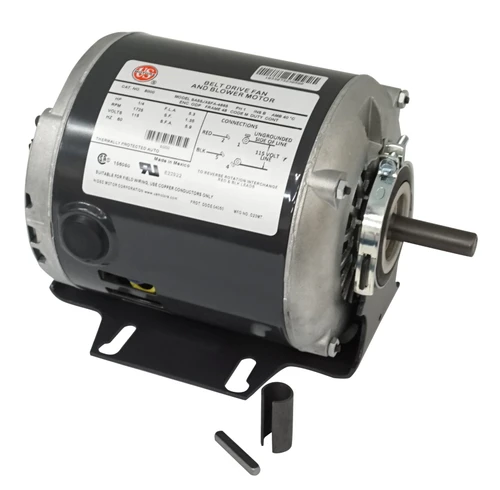

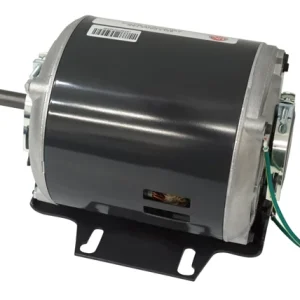

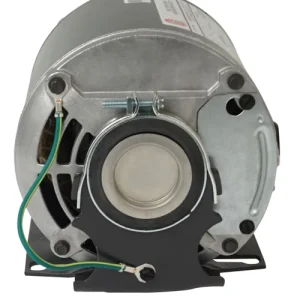

Belted Fan & Blower Motor | 1/4 HP | NEMA 48 Frame | 115V | Part #8000
Upgrade your HVAC system with this brand-new belted fan and blower motor, part #8000. Engineered for residential and commercial air-moving applications, this motor features a NEMA 48 frame, split phase design, and reversible rotation for flexible installation. Includes a shaft adapter for 5/8″ shafts and combination mounting holes for compatibility with both NEMA 48 and 56 frame dimensions.
⚙️ Product Specifications:
- Electrical Type: Split Phase
- ⚡ Horsepower: 1/4 HP
- Speeds: Single & Two-Speed Capability
- Frame: NEMA 48 (with 48/56 mounting holes)
- Voltage: 115V
- Rotation: Reversible
- RPM: 1725
- ️ Overload Protection: Automatic Reset Thermal Protector
- Amps: 5.3
- Shafts: N-type 1.5″ x 5″ and U-type 0.5″
- Service Factor: 1.35
- ️ Insulation: Class B
- Mounting: Combination holes for NEMA 48 & 56 frames
- Conduit: Threaded conduit hole for secure wiring
- Condition: Brand New – Unused
✅ Compatible With:
- Residential and commercial HVAC systems
- Belt-driven fans, blowers, and air handlers
- OEM replacement for 1/4 HP split phase motors with NEMA 48 frame
️ Installation Tips:
- Disconnect power before servicing or installing the motor
- Confirm mounting hole alignment for NEMA 48 or 56 frames
- Use shaft adapter for 5/8″ blower shafts if required
- Connect wiring per motor diagram and local electrical codes
- Test rotation direction and airflow before final assembly
- Ensure proper belt tension and pulley alignment to prevent wear
Reliable airflow. Flexible mounting. Built for HVAC performance.
